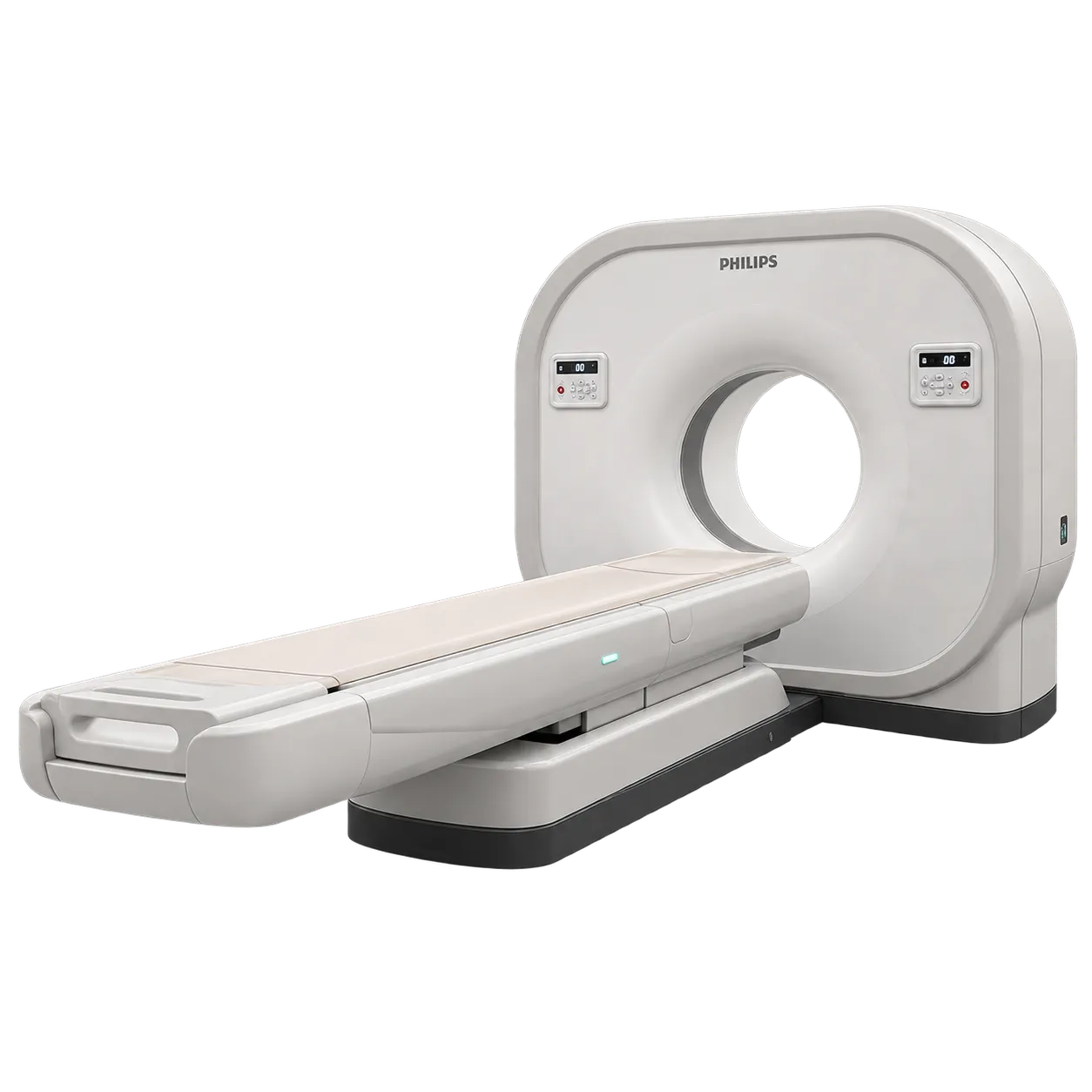

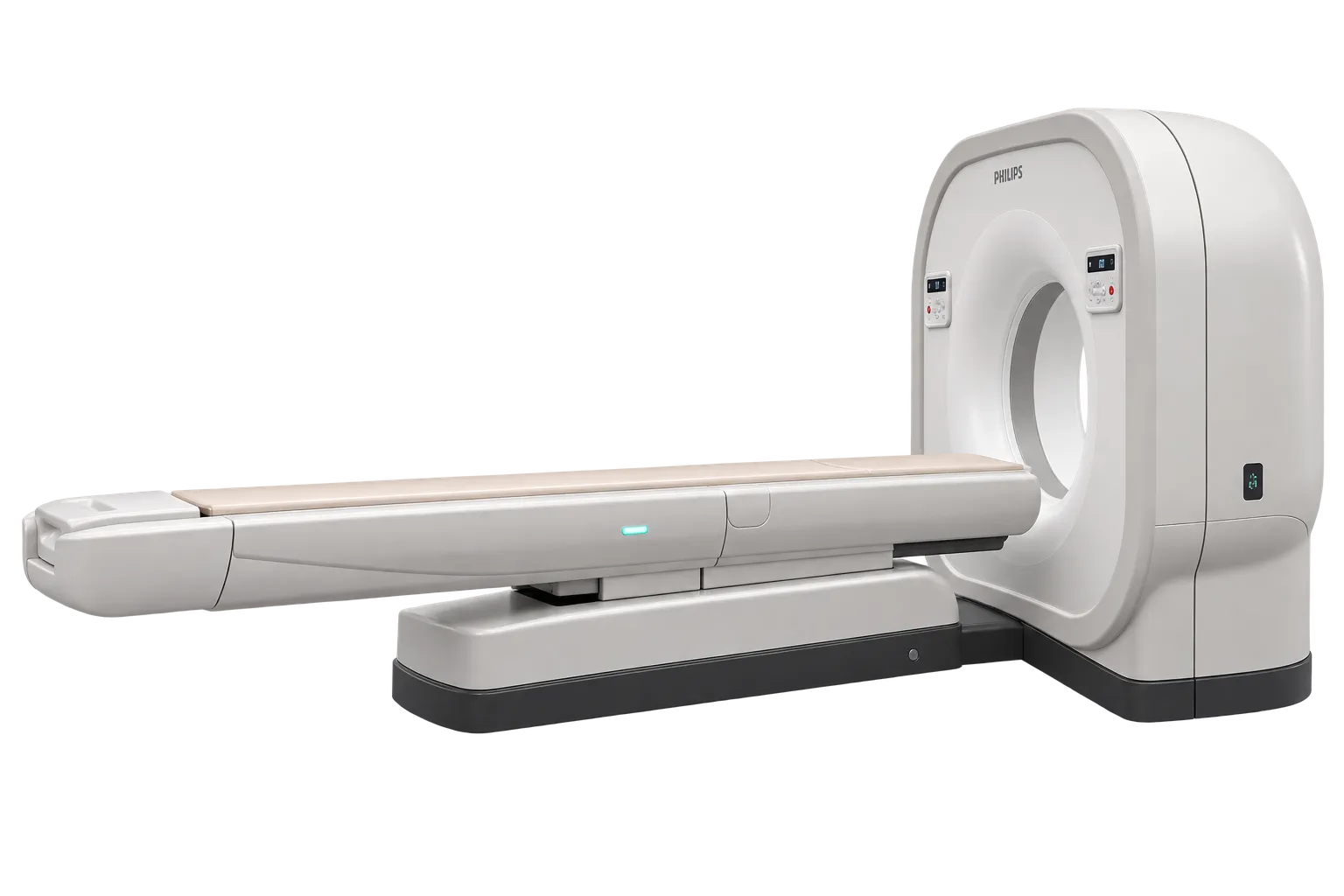

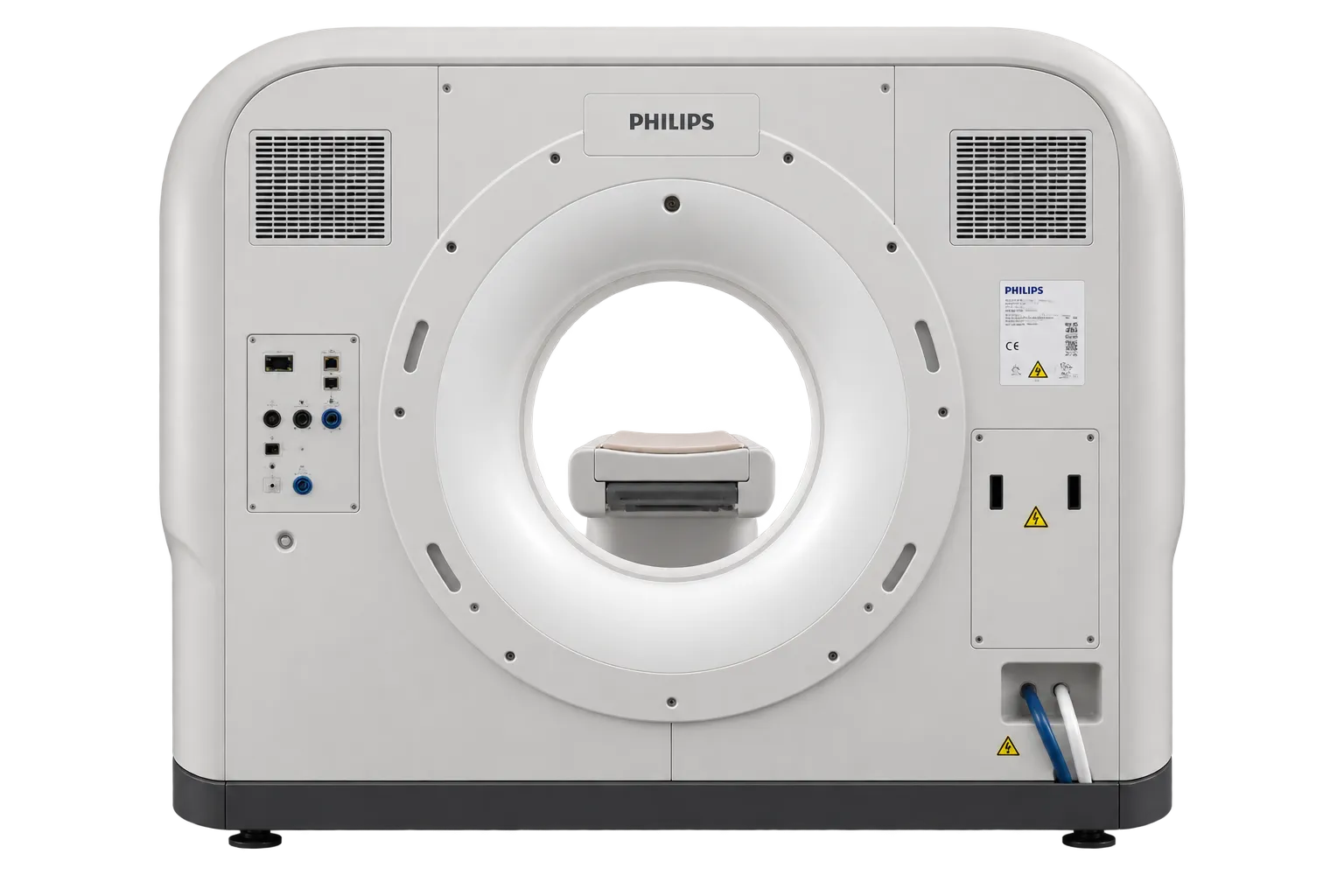

Philips Access CT16 (2018)

Sixteen detector rows acquired, up to thirty-two slices reconstructed helically.

The detector array carries sixteen rows across 11,520 elements, sampling at up to 1,320 views per rotation. Where the option is present, helical reconstruction returns up to thirty-two slices from that acquisition. Listed on Medigear.uk for UK business buyers.

Sections

CT Scanner

Categories

Medical Diagnostic Equipment

Condition

Refurbished

Year

2018

Origin

China

Seller Type

Certified Professional Seller

CE & ISO Certified

Global Shipping

Supplier: Medigear

The number in a CT scanner's name usually describes what the detector acquires. On this platform the acquisition and the reconstruction are described separately, and both are worth understanding.

Acquisition runs across sixteen detector rows. Each row carries 720 elements for a total of 11,520 across a detector width of 12.8 mm, and the data acquisition rate reaches 1,320 views per rotation. Collimation is offered at 2 × 0.8 mm, 12 × 0.8 mm and 16 × 0.8 mm, giving a sub-millimetre element pitch through the acquisition. Where the thirty-two-slice option is present, helical reconstruction returns up to thirty-two reconstructed slices from those sixteen acquired rows, which affects the density of the reformatted dataset available for review.

The gantry is built compactly. The aperture measures 65 cm, focus to isocentre is 511 mm and focus to detector 900 mm, and the scan field of view spans 450 mm with reconstruction available from 50 to 450 mm. Rotation times run at 0.75, 1, 1.5 and 2 seconds for a full rotation, and pitch is selectable from 0.5 to 1.5. Tilt is digital, and the gantry runs on a low-voltage slip ring.

The tube assembly stores 3.5 MHU of anode heat with oil cooling, dissipating up to 3 kW continuously, and offers two focal spots at 0.4 × 0.7 mm and 0.6 × 1.3 mm. The anode turns at 3,000 rpm on a 50 Hz supply or 3,600 rpm at 60 Hz, and maximum focal spot power reaches 28 kW.

Image quality figures follow from that geometry. Spatial resolution reaches up to 15 line pairs per centimetre at zero percent MTF, and low contrast resolution is stated as 3.0 mm at 0.3 percent measured on a 20 cm Catphan phantom with a central CTDI no greater than 40 mGy.

Reconstruction runs at up to 10 images per second into a 512, 768 or 1024 matrix, with a 1024 by 1024 display matrix and layouts of one, four, nine or sixteen images. The console holds 8 GB of memory with storage for more than 750,000 images.

Patient handling and positioning are supported by sagittal and transverse localisers able to perform posteroanterior and lateral scans, laser positioning lamps, and gantry control panels carrying couch movement, fast couch movement, emergency stop and laser controls. The couch is supplied fixed or vertically moveable, with scannable range of at least 1,200 mm on the fixed couch and at least 1,380 mm on the vertically moveable version. Multilingual AutoVoice delivers a standard set of patient instructions before, during and after scanning.

Diagnostic interpretation remains with the reporting radiologist, and exposure decisions with the operator and the employer's dose framework. The tube condition and slice count, the software version, the reconstruction and couch options, the regulatory documentation and the service history are provided by the seller at quotation, with CE marking documentation and the declaration of conformity issued by the manufacturer or held by the seller.

Routine head computed tomography is served by sub-millimetre collimation at 16 × 0.8 mm and a 450 mm scan field, with reconstruction available from 50 mm for a tightly framed study.

Chest and abdominal imaging runs across the full sixteen rows, with pitch selectable from 0.5 to 1.5 according to the coverage and dose the study calls for.

Musculoskeletal and spine work benefits from the 0.4 × 0.7 mm fine focal spot and spatial resolution reaching 15 line pairs per centimetre at zero percent MTF.

Emergency department imaging is supported by localisers performing posteroanterior and lateral scans and by gantry-side couch controls for quick positioning.

Reformatted review is supported where the thirty-two-slice helical reconstruction option is present, since a denser reconstructed dataset carries more detail into multiplanar review.

Departments with constrained rooms are served by a compact gantry at a 65 cm aperture and a fixed-height couch option, which reduces what a room has to accommodate.

Services scanning patients who need consistent instruction are supported by multilingual AutoVoice, which delivers the same guidance before, during and after every scan.

Sixteen Rows Across 11,520 Elements

The detector carries 720 elements in each of sixteen rows over a 12.8 mm width, sampling at up to 1,320 views per rotation.

Denser Reconstruction Where the Option Is Present

Helical reconstruction returns up to thirty-two slices from the sixteen acquired rows, which carries more detail into reformatted review.

Sub-Millimetre Collimation

Collimation at 2 × 0.8 mm, 12 × 0.8 mm and 16 × 0.8 mm gives a sub-millimetre element pitch through the acquisition.

A Fine Focal Spot for Detail

Focal spots of 0.4 × 0.7 mm and 0.6 × 1.3 mm support spatial resolution reaching 15 line pairs per centimetre at zero percent MTF.

Oil Cooling Through the List

The tube stores 3.5 MHU of anode heat with oil cooling and dissipates up to 3 kW continuously.

A Compact Gantry Footprint

A 65 cm aperture with focus to isocentre at 511 mm keeps the gantry compact for the room it occupies.

Pitch Set to the Study

Selectable pitch from 0.5 to 1.5 lets coverage and sampling density be set to the examination.

Localisers in Two Planes

Sagittal and transverse localisers perform posteroanterior and lateral scans before the acquisition begins.

Instructions Delivered the Same Way Every Time

Multilingual AutoVoice gives a standard set of patient commands before, during and after scanning.

Positioning Controlled at the Gantry

Couch movement, fast movement, laser and emergency stop controls sit on the gantry panels alongside the console controls.

Documentation Established Before Order

Tube condition, slice count, fitted options and the regulatory documentation are provided by the seller at quotation, so what a buyer receives is established in writing.

Compact Sixteen-Row CT Scanner

A gantry, patient table and operator console supporting routine computed tomography.

Gantry Aperture: 65 cm

The patient opening through the gantry.

Detector: 16 Rows, 11,520 Elements

720 elements per row across a detector width of 12.8 mm.

Data Acquisition Rate: Up to 1,320 Views per Rotation

The maximum sampling rate through the acquisition.

Slice Output: 16 Acquired, Up to 32 Reconstructed

Sixteen acquired slices per rotation, with up to thirty-two helical reconstructed slices where that option is present.

Collimation: 2, 12 and 16 × 0.8 mm

The available collimation settings.

Rotation Times: 0.75, 1, 1.5 and 2 Seconds

For a full 360 degree rotation.

Scan Pitch: 0.5 to 1.5

Selectable to the coverage and dose the study calls for.

X-Ray Tube: 3.5 MHU, Oil-Cooled

With maximum continuous anode heat dissipation of 3 kW.

Focal Spots: 0.4 × 0.7 mm and 0.6 × 1.3 mm

Fine and broad focal spots selected to the acquisition.

Anode Rotation: 3,000 or 3,600 rpm

At 50 Hz or 60 Hz supply respectively.

Maximum Focal Spot Power: 28 kW

The generator output at the focal spot.

Focus Distances: 511 mm to Isocentre, 900 mm to Detector

The scanner geometry.

Scan Field of View: 450 mm

With reconstruction field of view from 50 to 450 mm.

Spatial Resolution: Up to 15 lp/cm

Measured at zero percent MTF with a ten percent tolerance.

Low Contrast Resolution: 3.0 mm at 0.3 Percent

Measured on a 20 cm Catphan phantom with central CTDI no greater than 40 mGy.

Reconstruction Speed: Up to 10 Images per Second

Into a 512, 768 or 1024 image matrix.

Display Matrix: 1024 × 1024

With image layouts of one, four, nine or sixteen.

Console Memory and Storage

8 GB of memory with storage for more than 750,000 images.

Digital Gantry Tilt

Tilt controlled digitally rather than by mechanical adjustment at the gantry.

Low-Voltage Slip Ring

The slip ring arrangement carrying power and data through the rotation.

Sagittal and Transverse Localisers

Localiser scans performed in posteroanterior and lateral projections.

Laser Positioning Lamps

Patient positioning lasers with on and off control at the gantry.

Gantry Control Panels

Couch in and out, fast couch movement, emergency stop and laser controls at the gantry.

Couch: Fixed or Vertically Moveable

Scannable range of at least 1,200 mm fixed and at least 1,380 mm vertically moveable, with the type on this unit confirmed at quotation.

Multilingual AutoVoice

A standard set of patient commands delivered before, during and after scanning.

CE Marking and Declaration of Conformity

Issued by the manufacturer and requested from the seller at quotation, and checked against the intended place of use.

Decontamination Certificate and Warranty Terms

Provided by the seller at quotation, in line with normal practice for used imaging equipment.

The case for the Philips Access CT rests on what a compact gantry can hold. Sixteen detector rows carry 720 elements each, 11,520 in total across a 12.8 mm width, sampling at up to 1,320 views per rotation, with collimation available at 2, 12 and 16 × 0.8 mm and, where the option is present, helical reconstruction returning up to thirty-two slices from those sixteen acquired rows. Around that sits a 65 cm aperture with focus to isocentre at 511 mm, rotation from 0.75 to 2 seconds, pitch from 0.5 to 1.5, a 450 mm scan field with reconstruction from 50 mm, an oil-cooled 3.5 MHU tube at 28 kW with fine and broad focal spots, spatial resolution to 15 line pairs per centimetre, reconstruction at up to 10 images per second and a console storing more than 750,000 images. Diagnostic interpretation remains with the reporting radiologist. Tube condition and slice count, fitted options, software version and the regulatory documentation are provided by the seller at quotation. Medigear.uk lists the scanner for UK business buyers and can arrange a site survey, delivery, installation, staff familiarisation, service cover and the supply of spares and consumables. Enquire for a written quotation.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

It is a compact sixteen-row computed tomography scanner with a 65 cm gantry aperture, a 3.5 MHU oil-cooled tube and a 28 kW generator, supporting routine computed tomography across a general list.

Sixteen slices are acquired per rotation from sixteen detector rows, and where the option is present helical reconstruction returns up to thirty-two reconstructed slices.

Sixteen rows of 720 elements, giving 11,520 elements in total across a detector width of 12.8 mm, sampling at up to 1,320 views per rotation.

2 × 0.8 mm, 12 × 0.8 mm and 16 × 0.8 mm.

0.75, 1, 1.5 and 2 seconds for a full 360 degree rotation, with pitch selectable from 0.5 to 1.5.

Up to 15 line pairs per centimetre at zero percent MTF, with low contrast resolution stated as 3.0 mm at 0.3 percent on a 20 cm Catphan phantom.

Up to 10 images per second, into a 512, 768 or 1024 matrix with a 1024 by 1024 display matrix.

3.5 MHU anode heat storage with oil cooling, 3 kW maximum continuous heat dissipation, focal spots of 0.4 × 0.7 mm and 0.6 × 1.3 mm, and 28 kW maximum focal spot power.

At least 1,200 mm on the fixed couch and at least 1,380 mm on the vertically moveable couch, with the type on this unit confirmed at quotation.

Philips data sheets for this platform carried a work in progress and not CE marked statement, and territory availability varied, so the certificate and declaration of conformity for this unit should be requested from the seller and checked against the intended place of use.

The tube condition and slice count, the reconstruction and couch options, the software version and the regulatory documentation. All are provided by the seller at quotation, and Medigear.uk can arrange a site survey and installation.
