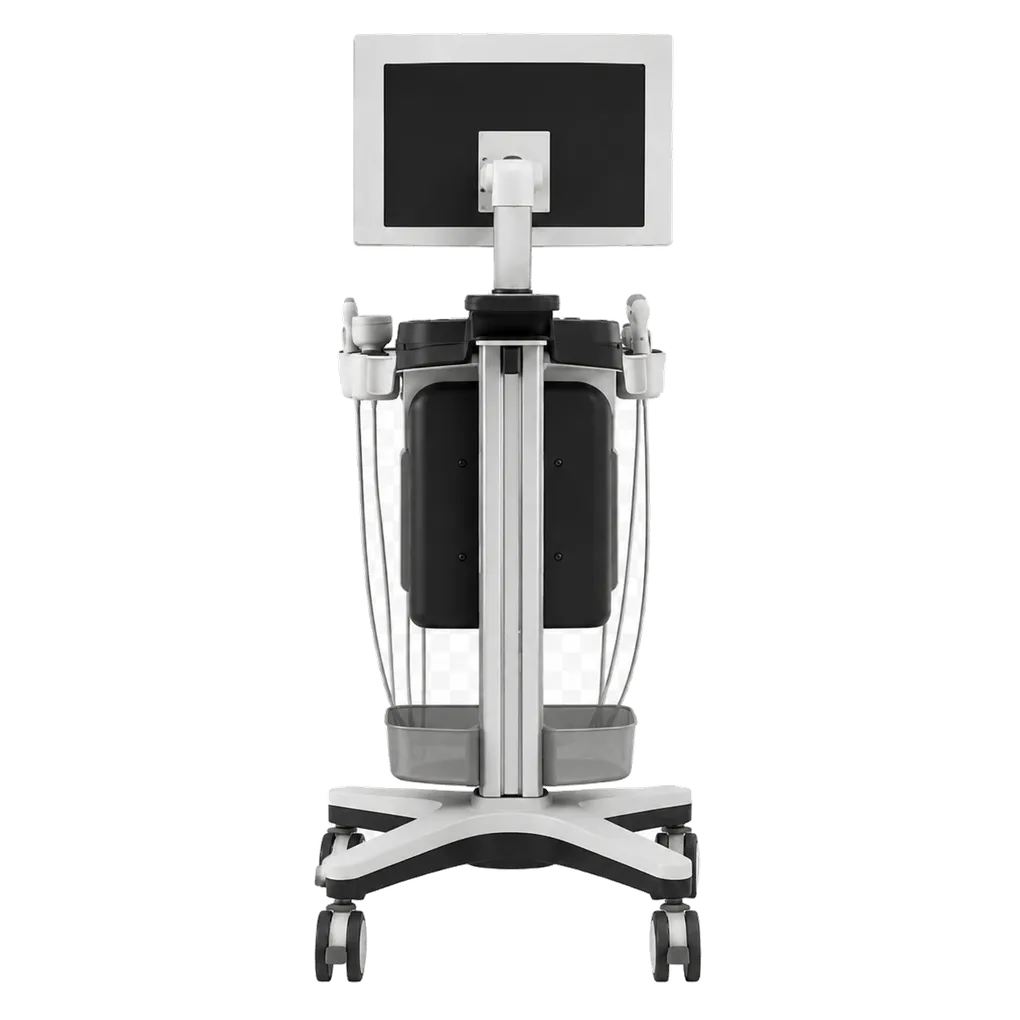

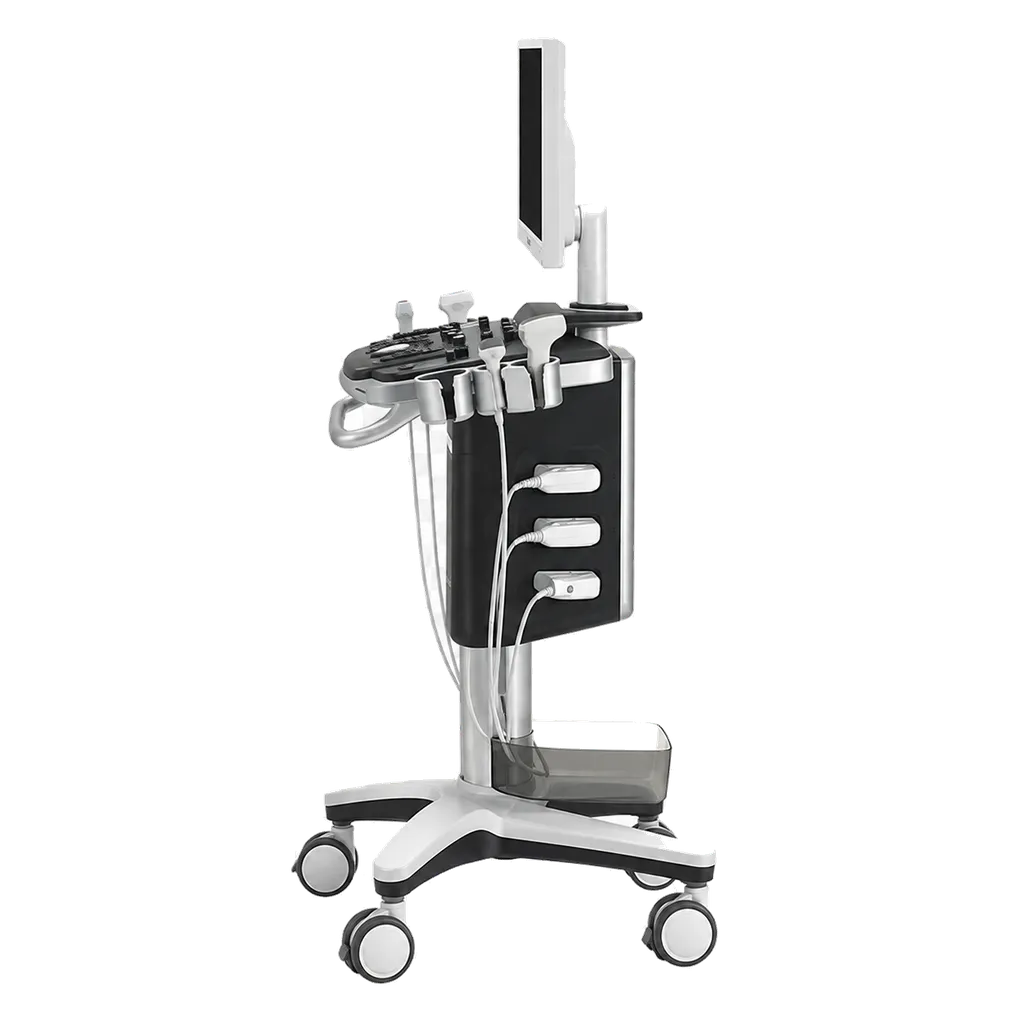

Periodmed RevoT1

Hospital radiology departments and general diagnostic imaging services represent the primary deployment setting for the Revo T1. As a full-cart system with a 21-inch LED monitor, three simultaneous probe connectors, and six compatible probe types, it covers abdominal, pelvic, vascular, musculoskeletal, breast, thyroid, and general soft tissue imaging from a single installation. TDI and CW Doppler extend their capability into cardiac assessment without a separate echo system. Medigear.uk supports hospital radiology procurement with full specification documentation, DICOM integration guidance, and institutional volume pricing.

Obstetric and gynaecological services use the Revo T1 throughout the full antenatal and gynaecological care pathway. The trans-vaginal C9-5R10N probe supports first-trimester and gynaecological evaluation, while the convex C5-2R60N and micro-convex C5-2R20N cover standard abdominal obstetric scanning. Seven fetal weight calculation formulae and the obstetric fetal growth curve support address the measurement diversity required by a busy obstetric scanning service. If you need a single system for maternity units that covers the full range of obstetric and gynaecological imaging, the Revo T1 is a complete solution available from Medigear.uk.

Cardiac and vascular services use the Revo T1's phased-array P4-2L15SI probe, TDI, CW Doppler, and the comprehensive cardiac function measurement package — spanning SP Ellipse, BiPlane Ellipse, Bullet, Simpson, Cube, Teichholz, Gibson, and nine additional formulae — for structured echocardiographic assessment. CW Doppler provides high-velocity aortic and valvular measurements. TDI adds myocardial velocity assessment for diastolic function beyond standard colour Doppler.

Specialist outpatient and interventional services benefit from the Revo T1's elastography, Needle Enhancement, and high-frequency linear probe for image-guided procedures, tissue stiffness assessment, and fine structural imaging. The trans-rectal L12-5L60N probe supports prostate and lower bowel evaluation. Medigear.uk can advise on probe selection and specification documentation for specialist outpatient procurement.

Six Probe Types From a Single Cart System — Linear, Convex, Phased, Trans-Vaginal, Trans-Rectal, and Micro-Convex

The Revo T1 supports six distinct probe configurations across three simultaneous connectors, covering the full diagnostic imaging scope of a general hospital radiology department or multi-speciality outpatient service from a single installation. No separate system is required for transvaginal, transrectal, phased-array cardiac, or microconvex paediatric imaging — each probe type is integrated into the Revo T1's four-probe interface. For procurement teams specifying a primary department system that must serve multiple specialities, this breadth of probes is a direct capital-expenditure advantage.

TDI and CW Doppler — Advanced Cardiac Assessment Without a Separate Echo System

Tissue Doppler Imaging and continuous-wave Doppler are standard features on the Revo T1, enabling quantitative assessment of myocardial velocity and high-velocity valvular Doppler measurements that are otherwise available only on dedicated echocardiography systems. For hospitals or clinics requiring advanced cardiac capability within their general diagnostic ultrasound system, TDI and CW Doppler on the Revo T1 eliminate the need — and cost — of a separate echo platform. Medigear.uk can advise on cardiac workflow integration for specific service requirements.

Elastography as a Standard Feature — No Module Upgrade Required

The Revo T1 includes elastography as a standard system capability, not an add-on module requiring separate purchase or activation. Elastography tissue stiffness mapping is available alongside B-mode imaging for breast lesion characterisation, liver fibrosis assessment, thyroid nodule evaluation, and musculoskeletal assessment. For procurement teams for whom elastography is a non-negotiable specification, including it in the Revo T1 reduces the total cost of ownership compared with systems that price it separately.

12 Imaging Modes Including Triplex for Simultaneous Structural and Flow Assessment

B, 2B, 4B, BM, M, CM, CF, PW, PDI, DPDI, TDI, and CW Doppler provide the full spectrum of diagnostic and Doppler imaging required across general, cardiac, vascular, and obstetric workflows. Triplex mode — simultaneous B+CF/PDI/DPDI+PW — enables real-time structural imaging alongside colour flow overlay and Doppler waveform display in the same screen frame, reducing the cognitive and time burden of rapid diagnostic assessment. This mode breadth is typically found only in higher-specification cart systems.

Comprehensive Cardiac and Fetal Measurement Packages

Thirteen cardiac function measurement methods — including Simpson, Teichholz, BiPlane Ellipse, and TDI-derived methods — and seven fetal weight calculation formulae provide the flexibility in measurement protocols required for a mixed cardiac and obstetric diagnostic service. Obstetric fetal growth curve support ensures the Revo T1 meets the reporting requirements of a structured antenatal scanning service. No additional software packages are required for these measurement capabilities.

CE-Certified Compliance for Hospital Diagnostic Imaging Procurement

CE certification confirms that the Revo T1 meets the applicable Medical Device Directive requirements for safety and performance across its full system specification. This is the primary compliance requirement for hospital and institutional diagnostic imaging procurement, and the Revo T1 satisfies it without restriction. The declaration of conformity and technical file are available through Medigear.uk for governance teams, procurement offices, and clinical engineering review.

21-Inch High-Resolution LED Monitor With 1080×768 Display

The 21-inch LED monitor at 1080×768 resolution provides the display quality required for detailed clinical imaging review, multimodal comparison, and the visual precision needed for elastography colour mapping, Doppler waveform analysis, and fine-structural assessment. This display specification is appropriate for a primary department diagnostic system used across a full clinical workday in high-volume scanning environments.

Advanced Imaging Technologies Including Spatial Compound and Pulse Inversion Harmonic Imaging

Automatic optimisation, spatial compound imaging, speckle reduction imaging, colour quantification, fine angle steer, tissue harmonic imaging, and pulse inversion harmonic imaging are all standard on the Revo T1. These technologies collectively improve image quality across challenging patient presentations and anatomical scenarios, reducing the frequency of suboptimal scans and supporting consistent diagnostic output across multiple operators and patient body types.

DICOM Output and Institutional IT Integration Support

DICOM output is standard on the Revo T1, enabling direct integration with hospital PACS and electronic patient record systems. BMP, JPG, PNG, TIFF, and DICOM image formats, along with WMV and MP4 video formats, cover the full range of institutional storage, reporting, and telemedicine requirements. Medigear.uk provides IT governance documentation support for institutional DICOM integration as part of procurement planning.

Element Channel: 128/64

The Revo T1's 128/64-element channel architecture provides the aperture and beam-forming capacity required for diagnostic-grade imaging across all six compatible probe types — from high-frequency linear superficial imaging to phased-array cardiac sector imaging and transvaginal gynaecological assessment.

CPU: J1900 With 4G RAM and 128G Hard Disk

The J1900 CPU with 4G of RAM and a 128G hard disk provides the processing and storage capacity required for real-time multi-mode imaging, large-case storage, and long-term archiving in a departmental scanning environment. Video memory of ≥128 MB supports the 21-inch LED display at full 1080×768 resolution.

Monitor: 21-Inch High-Resolution LED, 1080×768

The 21-inch LED monitor delivers the display area and resolution required for detailed clinical image review across general radiology, cardiac, obstetric, and specialised scanning applications. The 1080×768 resolution supports elastography colour mapping, Doppler waveform display, and fine structural imaging with the visual clarity required for diagnostic confidence.

Probe Connectors: 3 Simultaneous Connections

Three simultaneous probe connectors allow the Revo T1 to connect multiple probe types and switch between them instantly, without changing physical connectors — a workflow efficiency requirement for departments that use multiple probe types within the same patient examination.

Linear Probe L12-5L40H: 5.0–10.0 MHz (+ H8.0–H12.0 MHz)

The L12-5L40H covers 5.0, 7.5, 8.5, and 10.0 MHz in fundamental mode with harmonic imaging at H8.0, H9.0, H10.0, and H12.0 MHz — the highest harmonic frequency available in the Revo T1 probe range, providing near-field tissue resolution for superficial, thyroid, breast, and vascular imaging.

Convex Probe C5-2R60N: 2.5–6.0 MHz (+ H3.6–H6.0 MHz)

The C5-2R60N covers 2.5, 3.5, 4.0, 5.0, and 6.0 MHz with harmonic modes at H3.6, H4.0, H5.0, and H6.0 MHz, addressing the full range of adult abdominal, obstetric, and deep pelvic imaging requirements across varied patient body types.

Phased Array Probe P4-2L15SI: 2.0–4.0 MHz (+ H3.2–H4.0 MHz)

The P4-2L15SI covers 2.0, 3.0, and 4.0 MHz with harmonic modes at H3.2, H3.6, and H4.0 MHz, providing the cardiac sector imaging capability required for transthoracic echocardiography and deep cardiac assessment with the Revo T1's TDI and CW Doppler modes.

Micro-Convex Probe C5-2R20N: 2.5–6.0 MHz (+ H3.6–H6.0 MHz)

The C5-2R20N provides a small-footprint convex probe for paediatric, neonatal, and intercostal imaging where a standard convex probe aperture is too large for the target window.

Trans-Vaginal Probe C9-5R10N: 4.0–9.0 MHz (+ H7.0–H9.0 MHz)

The C9-5R10N covers 4.0, 5.0, 6.5, 8.0, and 9.0 MHz with harmonic modes at H7.0, H8.0, and H9.0 MHz — providing the frequency range and near-field resolution required for trans-vaginal gynaecological and first-trimester obstetric imaging.

Trans-Rectal Probe L12-5L60N: 5.0–10.0 MHz (+ H3.6–H6.0 MHz)

The L12-5L60N covers 5.0, 7.5, 8.5, and 10.0 MHz for trans-rectal imaging of the prostate and lower bowel in the specialised scanning contexts where trans-rectal probe access is clinically indicated.

12 Imaging Modes: B/2B/4B/BM/M/CM/CF/PW/PDI/DPDI/TDI/CW

The complete mode set covers all standard general diagnostic, cardiac, vascular, and obstetric imaging requirements. TDI and CW Doppler extend the Revo T1's cardiac capability to myocardial velocity assessment and high-velocity valvular Doppler, modes typically associated with dedicated echocardiography systems.

Elastography, Auto Trace, Needle Enhancement, Wide View, Trapizoid, SMV

Advanced features standard on the Revo T1 include elastography tissue stiffness mapping, Auto Trace for automated vessel and structure boundary detection, Needle Enhancement for procedural imaging guidance, Wide View and Trapezoid modes for extended field-of-view imaging, and SMV for specialised flow visualisation.

DICOM, BMP, JPG, PNG, TIFF Image Output and WMV/MP4 Video

Five image formats and two video formats provide comprehensive output options for PACS integration, structured reporting, patient documentation, telemedicine, and training archive requirements across all clinical specialities served by the Revo T1.

Scanning Speed: 50–400 Frames Per Second

A scanning speed range of 50–400 frames per second supports both standard abdominal and obstetric imaging at lower frame rates and high-frame-rate cardiac and vascular scanning, where temporal resolution is clinically critical for accurate Doppler waveform capture and real-time cardiac motion assessment.

The Periodmed Revo T1 diagnostic ultrasound system is a CE-certified full-cart platform designed for hospital radiology departments, obstetric and gynaecological services, cardiac and vascular units, and specialist outpatient clinics requiring a single system that covers the complete diagnostic imaging scope. Its six probe types, 12 imaging modes including TDI and CW Doppler, standard elastography, comprehensive fetal and cardiac measurement packages, 21-inch LED monitor, and DICOM output deliver institutional-grade diagnostic capability in a fully documented and procurable cart system. Whether specifying a primary department system, a specialist obstetric or cardiac scanning platform, or an interventional imaging system with Needle Enhancement, the Revo T1 provides a verified, CE-certified, and clinically complete diagnostic imaging solution. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
