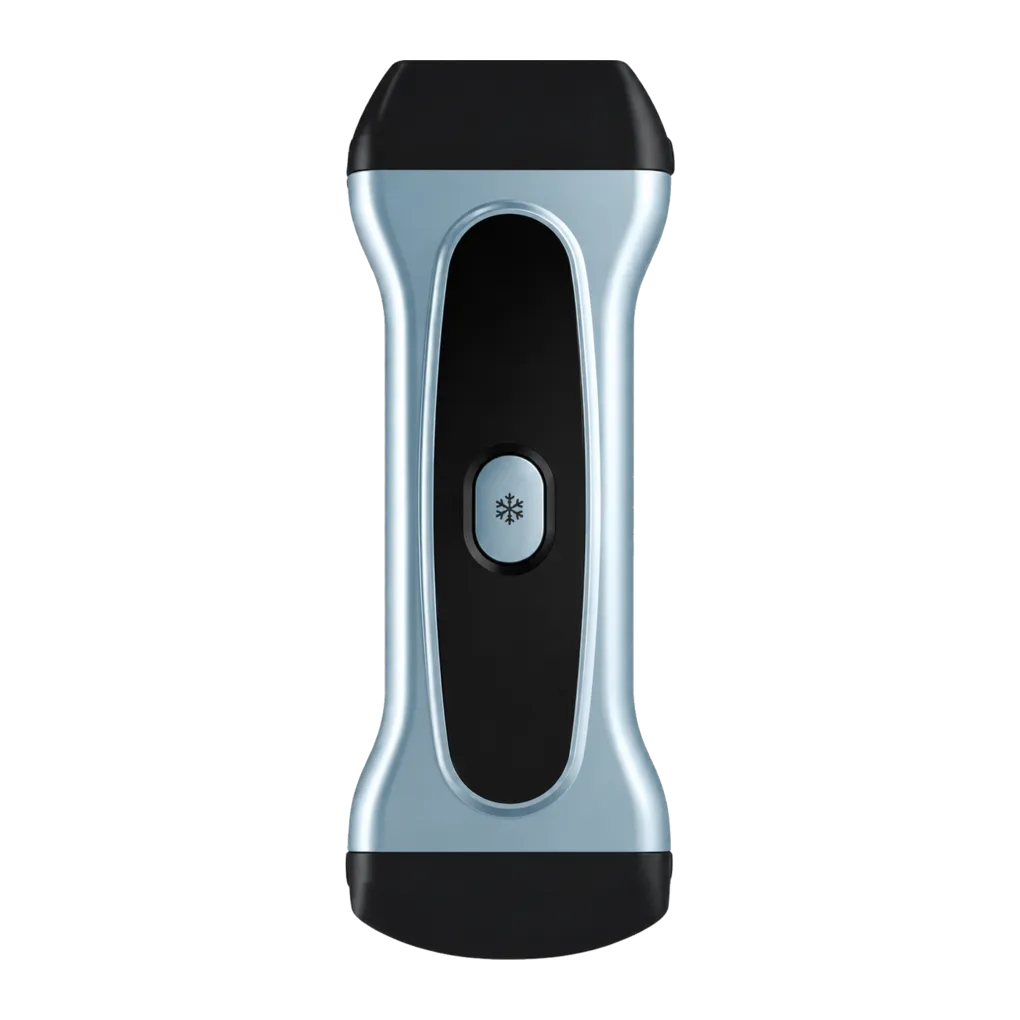

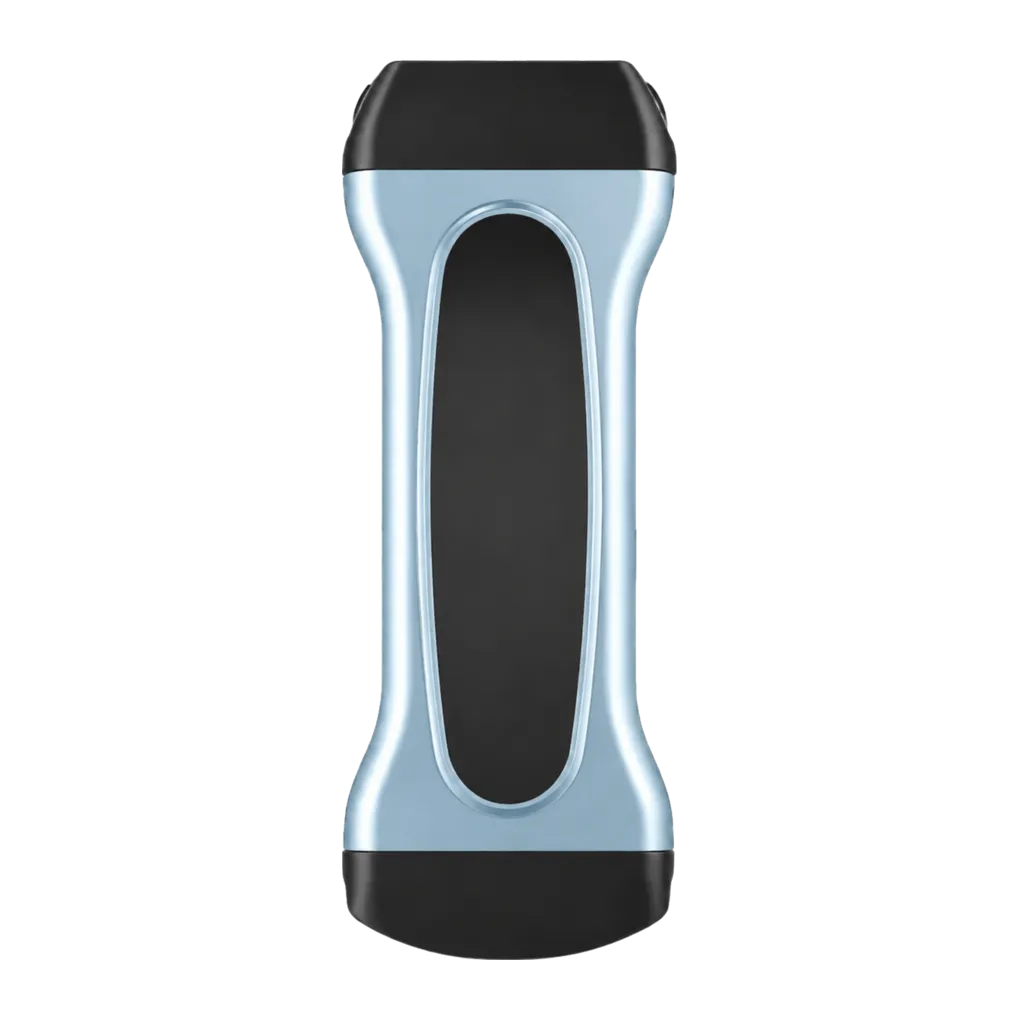

Periodmed PIU2A

General diagnostic and emergency services represent the broadest clinical deployment context for the PIU2A. The nine-mode frequency suite enables FAST examinations, abdominal organ assessment, pleural effusion detection, and acute vascular screening across adult body types without probe change, making the PIU2A viable for general diagnostic services regardless of patient mix. For OEM buyers and distributors targeting hospital procurement, this clinical breadth means the PIU2A meets multi-speciality imaging needs without restriction. Medigear.uk provides specification documentation, sample imaging, and sales support materials for distributor technical teams.

Obstetric and gynaecological services represent a high-volume application. The 2.5 MHz fundamental frequency and harmonic modes provide deep obstetric penetration and improved contrast across a wide patient population, while PW Doppler to ±120 cm covers umbilical artery Doppler studies. For distributors targeting maternity units and community midwifery services, the PIU2A's battery life, wireless connectivity, and standard obstetric frequency range address the core procurement specification for portable obstetric imaging.

Intensive care and high-dependency services use the PIU2A for bedside abdominal assessment, inferior vena cava collapsibility, and pleural fluid mapping without patient transfer. The four harmonic modes support image quality in critically ill patients with altered body composition. The IPX7 waterproof rating meets submersion disinfection requirements in isolation environments — a compliance feature that distributors targeting critical care procurement will find directly relevant to customer adoption. Medigear.uk can advise on volume pricing for critical care deployments.

Specialist outpatient services in oncology, gastroenterology, and urology complete the PIU2A's clinical scope. CE certification and DICOM output support the governance and IT integration requirements of structured reporting environments. If you're building a wireless imaging product line for specialist outpatient procurement, the PIU2A's documented compliance and Medigear. The UK's supply infrastructure offers a fully commercial, ready-to-use solution.

CE-Certified OEM and Distributor Supply With Full Technical Documentation

The PIU2A is available through Medigear.uk under OEM arrangements with access to the full CE certification documentation package — declaration of conformity, technical file, and supporting clinical evidence. For distributors managing regulatory filings across multiple markets, this documentation infrastructure reduces the compliance burden of product listing. Medigear.uk's commercial team can discuss custom branding, bundle configuration, and documentation tailoring for specific OEM and distributor commercial requirements.

Clinically Comprehensive Nine-Mode Frequency Range for Multi-Speciality End-Users

Five fundamental frequencies and four harmonic modes give end-users across general diagnostic, obstetric, gastroenterology, urology, oncology, and emergency specialities imaging flexibility to optimise imaging for each patient without probe changes. For distributors targeting multi-speciality hospital accounts, this breadth addresses the concern that a single convex probe cannot meet the diagnostic needs of a mixed clinical environment—the PIU2A's nine modes cover the full clinical scope in a single product.

No Proprietary Display Terminal — Lowest Total Cost of Ownership in Its Class

Android, iOS, and Windows compatibility removes the proprietary display unit entirely from the bill of materials. For OEM buyers and distributors, this is a direct total cost-of-ownership advantage: end users operate the probe on devices they already own, eliminating hardware procurement, installation, and maintenance overhead. DICOM output supports integration with existing PACS infrastructure without additional middleware. Medigear.uk supports institutional IT governance teams with technical documentation during sales.

IPX7 Waterproofing — A Clinical Compliance Requirement Met as Standard

IPX7 certification means the product can be fully submerged for disinfection, meeting infection control requirements for hospital and clinical procurement across general wards, ICU, obstetric, and emergency deployment contexts. For distributors, IPX7 is a threshold compliance feature that opens procurement opportunities in environments that exclude non-immersible devices. The cableless wireless design reinforces this advantage by eliminating the risk of port and connector contamination associated with conventional tethered probes.

Four Harmonic Modes for Consistent Clinical Performance Across End-User Skill Levels

Harmonic modes at H3.6, H4.0, H5.0, and H6.0 MHz reduce artefact and improve tissue contrast in the challenging patient presentations that represent a significant proportion of a general diagnostic workload — high BMI, steatotic liver, gaseous bowel, and post-surgical anatomy. For OEM and distributor buyers, four harmonic modes reduce the diagnostic failure rate in difficult cases, improving end-user satisfaction and reducing product returns or service calls related to imaging quality complaints.

40–300 mm Depth Range — Clinically Viable From Paediatric to High-BMI Adult Patients

A depth range beginning at 40 mm — 20 mm shallower than many comparable convex probes — ensures the PIU2A serves paediatric and neonatal as well as adult imaging without restriction. For distributors building a product for a broad market without age- or body-type segmentation, the 40 mm minimum depth removes a clinical limitation that would otherwise narrow the addressable buyer base.

3200 mAh Fast-Charging Battery for Continuous Clinical Operation

The 3200 mAh battery reaches full charge in 60 minutes via wireless induction, with 43% restored in 30 minutes for rapid rotation between shifts. For OEM buyers who prioritise battery performance, the 60-minute full-charge cycle and wireless induction charging—without contact degradation—make for a strong operational specification. Medigear.uk can advise on multi-unit charging infrastructure for institutional deployments.

Full Intelligent Series Portfolio Available Through Medigear.uk

The PIU2A is one of eight models in the Intelligent Series. If you're building a complete wireless imaging product line, you can source convex (PIU1A/1D/2A), linear (PIU1B/2B), and phased-array (PIU1C/2E/2F) models through Medigear.uk under consistent commercial terms, with unified CE documentation, after-sales support, and procurement logistics. This portfolio depth reduces the number of supplier relationships a distributor must manage to cover the full range of wireless diagnostic imaging products.

Scalable Supply — Individual Unit to National Distribution Volume

The PIU2A is available through Medigear.uk from a single clinical unit through to national distributor volume. OEM arrangements, custom branding, accessory bundle configuration, and freight logistics are all managed through the Medigear.uk commercial team. If you're evaluating the PIU2A as a core product, Medigear.uk can provide the supply chain depth and commercial support you need to move from initial trial orders to sustained national or regional volume supply.

128-Element Convex Transducer

The PIU2A's 128-element convex array provides the element density and aperture required for diagnostic-grade beamforming across a 40–300 mm depth range, enabling nine imaging modes, including four harmonic frequencies and the ±120 cm PW Doppler range, required for adult abdominal and obstetric clinical work.

Fundamental Frequency Range: 2.5–6.0 MHz (Five Selectable Frequencies)

Five selectable fundamental frequencies — 2.5, 3.5, 4.0, 5.0, and 6.0 MHz — span the full penetration-resolution spectrum for convex probe abdominal and obstetric imaging across a commercially diverse end-user population.

Harmonic Imaging Modes: H3.6, H4.0, H5.0, H6.0 MHz

Four harmonic modes provide contrast improvement from near-field to deep-field across the 40–300 mm depth range. H3.6 and H4.0 address deeper abdominal structures, while H5.0 and H6.0 improve near-field contrast for obstetric and paediatric imaging, as well as for challenging superficial abdominal anatomy.

Imaging Depth: 40–300 mm

A 40–300 mm depth range covers paediatric and neonatal abdominal imaging at the shallow end through to deep adult abdominal and obstetric assessment at 300 mm, supporting commercial deployment across age groups and body habitus types without probe change.

Dynamic Range: 36–120 dB

A consistent 36–120 dB dynamic range across all nine frequency modes ensures predictable image contrast throughout clinical workflows and across multiple operators within a shared or fleet environment.

Gain: 1–100%

Full 1–100% gain adjustment across all imaging and Doppler modes gives each end-user complete brightness control for individual patients and imaging depths, matching the gain range of full-size cart-based convex systems.

8-Segment Time Gain Compensation (TGC)

Eight independent depth-zone TGC controls allow gain correction at each tissue level, enabling independent optimisation of near-field and far-field structures — a standard requirement for diagnostic-grade convex imaging across the PIU2A's full depth range.

Single Optimised Transmit Focus

A single transmit focus optimised for the convex probe's abdominal imaging depth range provides consistent beam quality across the 40–300 mm clinical window, eliminating the need for operator selection between focus positions.

PW Doppler Range: ±15 cm / ±120 cm

Two selectable PW Doppler ranges — ±15 cm for near-field small-vessel and paediatric assessment, and ±120 cm for standard adult abdominal and obstetric Doppler — cover the workflow requirements of the PIU2A's broad clinical end-user base.

Colour Flow Doppler Range: ±8 cm / ±76 cm

Two colour flow ranges — ±8 cm for near-field small-vessel mapping and ±76 cm for deep abdominal and obstetric colour flow — allow precise velocity-scale matching across the PIU2A's diverse clinical applications.

Display Modes: B, CF, PW, M, PDI, DPDI

The full mode set covers all standard diagnostic and Doppler requirements for general abdominal, obstetric, urological, and emergency imaging with a convex probe — consistent across all Intelligent Series models for unified product documentation and end-user training materials.

Spot Reduction: On/Off

Switchable spot reduction reduces speckle noise, improving the visual clarity of tissue boundaries and organ interfaces without permanently altering the image data — useful across the general and specialist diagnostic applications the PIU2A serves.

3200 mAh Battery with 60-Minute Wireless Fast Charging

The 3200 mAh lithium cell reaches full charge in 60 minutes via wireless induction, with 43% restored in 30 minutes — enabling rapid rotation in multi-user and fleet environments. Wireless charging eliminates contact degradation, maintaining housing integrity throughout the product's commercial lifetime.

Android, iOS, and Windows Wireless Connectivity with DICOM, BMP, and JPG Output

Wireless connectivity for Android, iOS, and Windows removes the proprietary display terminal from the bill of materials, reducing the total cost of ownership for distributors and end users. DICOM output supports PACS integration. Medigear.uk supports IT governance documentation for institutional deployments across distributor accounts.

The Periodmed Intelligent PIU2A wireless colour Doppler ultrasound is a CE-certified, 128-element convex probe from the Intelligent Series designed for OEM integration, distributor portfolio supply, and B2B institutional procurement. Its nine-mode frequency range spanning 2.5–H6.0 MHz, 40–300 mm depth, PW Doppler to ±120 cm, and IPX7 waterproof rating deliver clinically comprehensive wireless convex imaging in a 229 g device with a 3200 mAh fast-charging battery and Android/iOS/Windows connectivity. Whether supplying a single clinical buyer, integrating into a branded OEM product, or building a regional distributor portfolio, the PIU2A provides a verified, CE-certified, commercially flexible wireless convex imaging solution. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
