Jiadun Medical JD-YLC5-001

Profiles like a ward bed. Looks like bedroom furniture. Five electric positions, wooden throughout.

Warm wooden panels wrap a full profiling platform: backrest to 75°, legs to 40°, powered height and tilt in both directions. It suits a care home bedroom or a front room at home without turning either into a ward.

Sections

ICU & Electric Beds

Categories

Hospital Furniture & Fixtures

Condition

New

Origin

China

Seller Type

Certified Professional Seller

Size:

2040 × 960 × 480 mm

CE & ISO Certified

Global Shipping

Supplier: Medigear

The JD-YLC5-001 from Hengshui Jiadun Medical Equipment is a five-function electric profiling bed finished in wood-effect panels for settings where a bed has to work clinically without looking clinical. The five powered movements are backrest elevation through 0–75° (±5°), leg-section elevation through 0–40° (±5°), whole-frame forward tilt, whole-frame backward tilt, and overall deck height. Backrest and leg articulation cover the seated, semi-recumbent and knee-break positions used daily in long-term nursing. Forward and backward frame tilt provide head-down and head-up positioning. Height travel sets a safe working level for carers and drops the deck for supervised transfers and falls risk reduction.

Wooden head and tail boards, plus matching side panels, give the bed a domestic silhouette. That is not a cosmetic footnote — in care homes and private residen,ces the visual character of the equipment affects how a resident and their family experience the room, and a bed that reads as furniture is easier to accept than one that reads as an admission.

A wooden slatted guardrail is supplied as standard, mounted as a drop-down assembly that lowers clear of the deck for transfers and personal care. Four drainage hooks sit at frame level. A brake system is fitted to the castor set, and a corded handset drives all five movements.

The deck measures 2040 × 960 mm ove,rwithl at a published height of 480 and is mm, sized for standard UK mattresses and pressure-redistributing replacements. Medigear.uk supplies the JD-YLC5-001 across the UK witha a declaration of conformity, technical fil,e, and current UKCA position confirmed at quotation, alongside a guardrail configuration and mattress compatibility review before order.

The JD-YLC5-001 is specified for long-term and residential settings rather than acute critical care: CQC-regulated care homes and nursing homes, hospices, rehabilitation and long-stay wards, and private residences supported by community teams.

In residential and nursing homes, the five powered movements cover the daily positioning cycle — sitting up for meals and visitors, knee-break support for comfort and oedema, and a carer-height working position that reduces the cumulative back loading behind so many care sector musculoskeletal injuries. Powered height also lowers the deck for supervised sit-to-stand and transfer work, which supports falls prevention strategies without resorting to restraint.

Forward and backward frame tilt give head-down and head-up positioning where clinically indicated, extending the bed's range beyond straightforward profiling into circulatory and respiratory positioning under nursing direction.

In hospice and palliative settings, the wooden finish carries genuine clinical weight. Dignity and normality are recognised components of end-of-life care, and a bed that reads as furniture rather than equipment changes how a room feels to a family sitting in it. Optional companion chairs and a mobile dining table extend the same principle across the room.

For home-based care, the bed suits patients supported through community nursing, reablement and end-of-life pathways. Provision may come through a community occupational therapist, a discharge-to-assess route, an Integrated Care Board or NHS Continuing Healthcare, or through direct private purchase where assessment timescales do not fit the need.

Rehabilitation and long-stay wards use the height range and drop-down rail for progressive mobilisation and supervised egress practice with physiotherapy colleagues. Across all of these settings, bed rail suitability should be assessed individually against MHRA guidance, with tissue viability input where pressure damage risk is present. Medigear.uk supplies the conformity documentation required for procurement and clinical governance reviews.

Clinical function without the clinical look

Wooden head and tail boards and matching side panels give the bed a domestic silhouette while the deck underneath profiles like any ward bed. For residents, families and hospice rooms, that difference is the difference between furniture and equipment.

Full profiling range in a low-set frame

Backrest to 75°, legs to 40°, powered height and tilt in both directions cover the everyday positioning demands of long-term nursing. The low deck setting supports supervised egress and reduces falls risk, rather than defaulting to rails as the only control.

Carer-height working position on demand

Powered height lets carers raise the deck for washing, dressing, wound care and repositioning, then drop it again for the resident. Sustained stooping drives a large share of care sector back injuries, and removing it is the most measurable ergonomic gain this bed offers.

Drop-down rail clears the transfer zone.

The slatted guardrail lowers clear of the deck rather than needing removal, so transfers, personal care,e and physiotherapy sessions don't require dismantling anything. Rails that stay on the bed also stay maintained, unlike detachable rails that migrate between frames.

One handset, five movements

A single corded control drives everything. In care homes running rotating and agency staff, a one-device bed shortens induction and removes the hesitation that slows an urgent height drop or repositioning.

Domestic-scale delivery footprint

A single 0.90 m³ crate handles more easily through a house or a care home corridor than a pre-assembled frame, which matters when the constraint is a stair half-landing rather than a loading bay.

Room-completing options from one supplier

Bedside table, dining table and chairs, companion chairs and a mobile dining table are available as configured options, letting a room be specified as a whole rather than assembled from unmatched suppliers.

Documentation supplied for procurement, not promised

Medigear.uk provides the declaration of conformity, certificate scope, standards evidence and current UKCA position with the quotation, plus guardrail configuration and mattress compatibility confirmed before order rather than discovered after delivery.

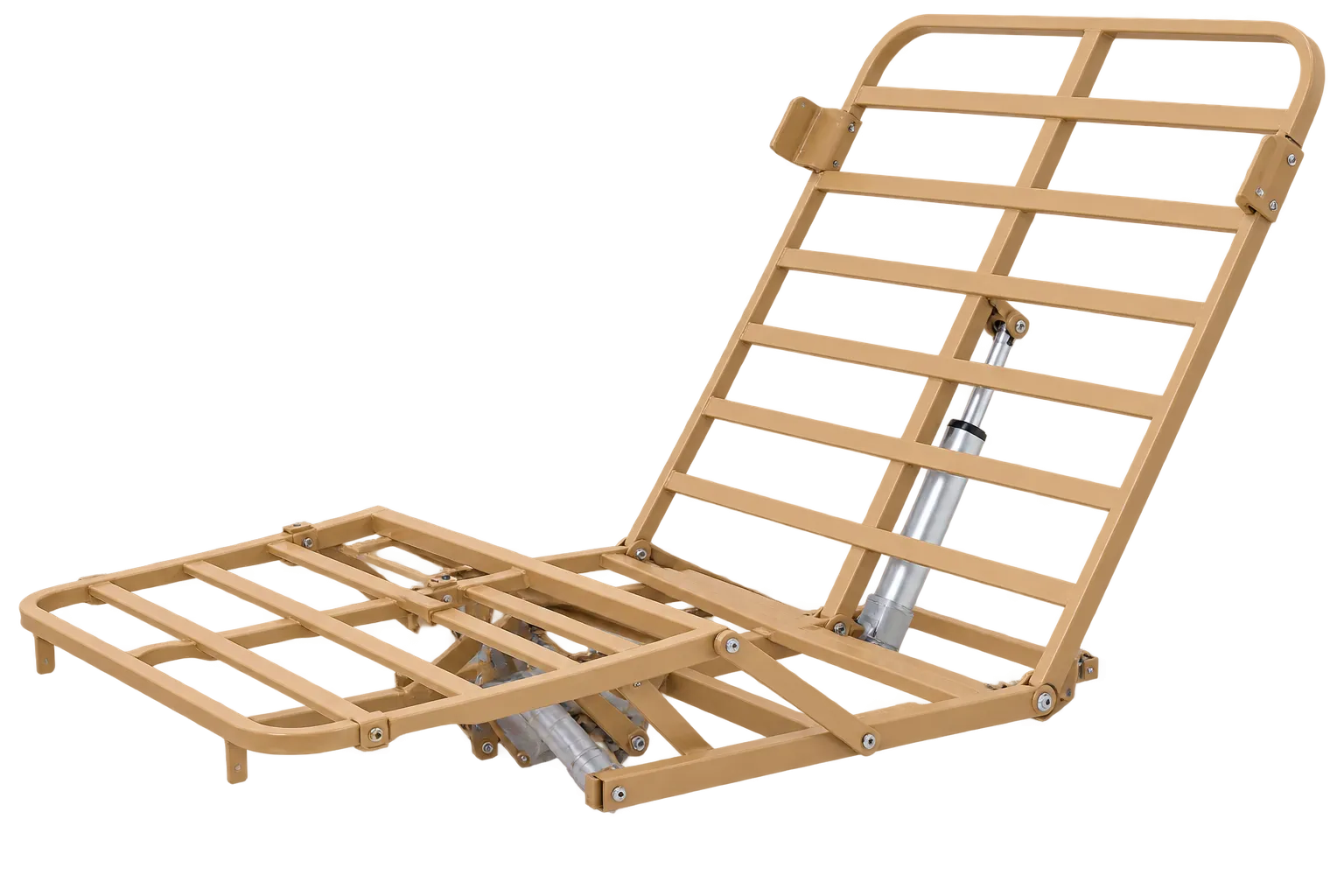

Five-function electric drive

Back lift and lower, leg lift and lower, whole-frame forward tilt, whole-frame backward tilt, and overall height adjustment, all from one medical-grade actuator set.

Backrest elevation 0–75° (±5°)

Travel from flat to 75° covers supine nursing through to a near-upright sitting position for meals, conversation and respiratory comfort.

Leg section elevation 0–40° (±5°)

Independent leg articulation to 40° supports knee-break positioning, oedema management and limb elevation without disturbing backrest angle.

Forward and backward whole-frame tilt

Head-down and head-up frame positioning for circulatory and respiratory management under nursing direction.

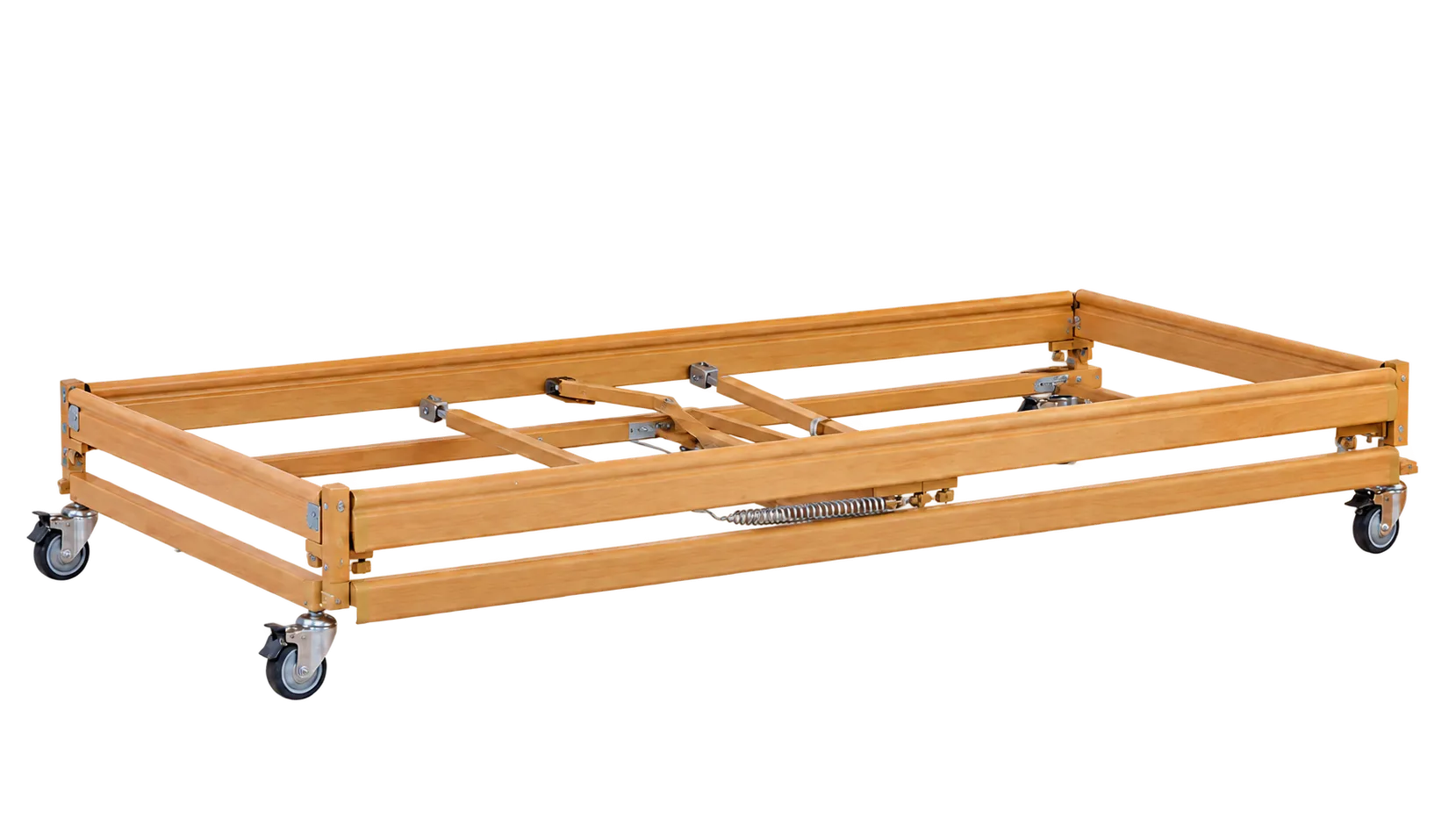

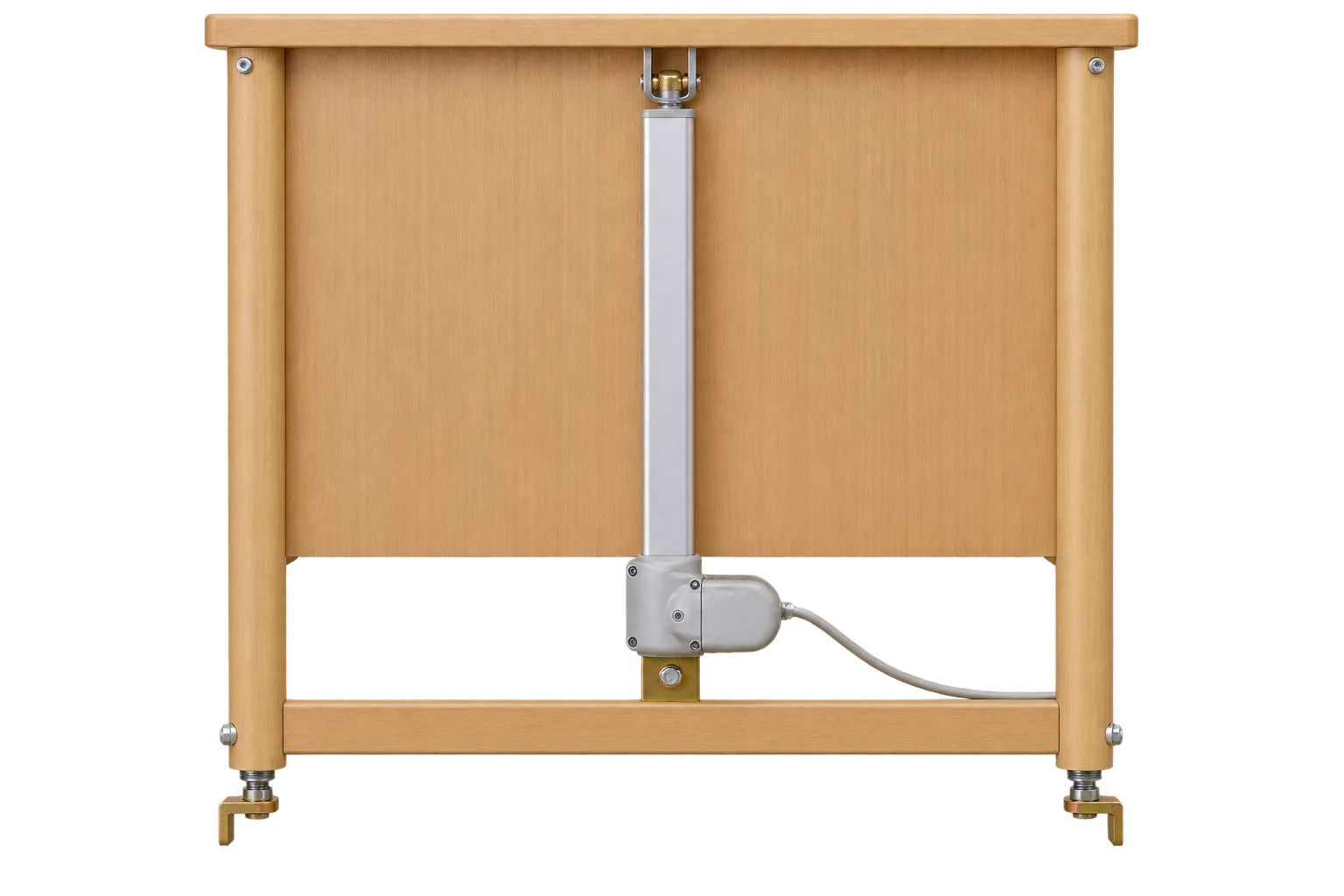

Powered deck height adjustment

Full-deck height travel sets a carer-height working level during care episodes and a low setting for supervised transfers and falls risk reduction.

Wired handset control

A single corded pendant drives all five movements and stows on the frame between uses.

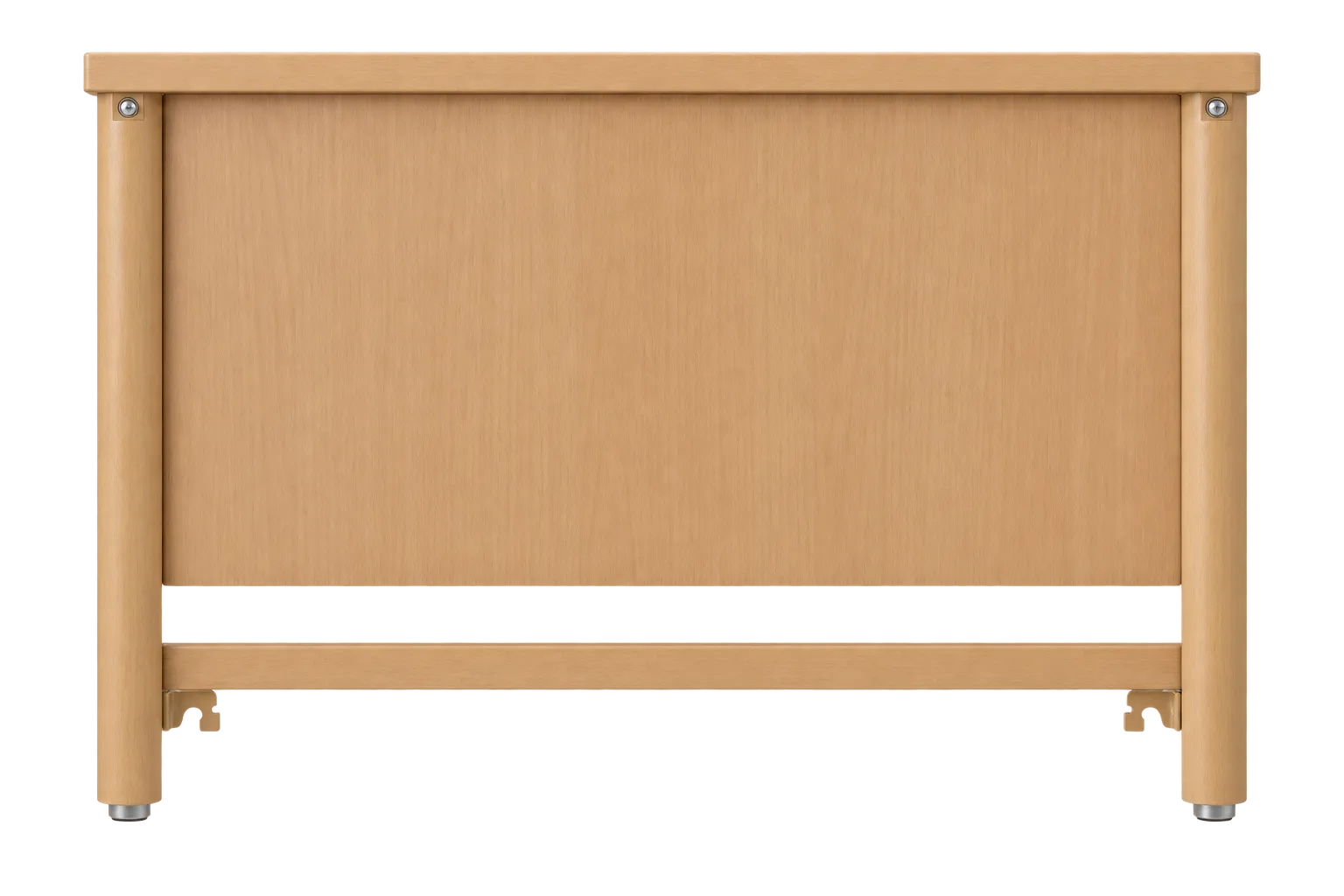

Wooden bed head and tail boards

Wood-effect head and tail boards with matching side panels, giving a domestic appearance suited to care home bedrooms, hospice rooms and private residences.

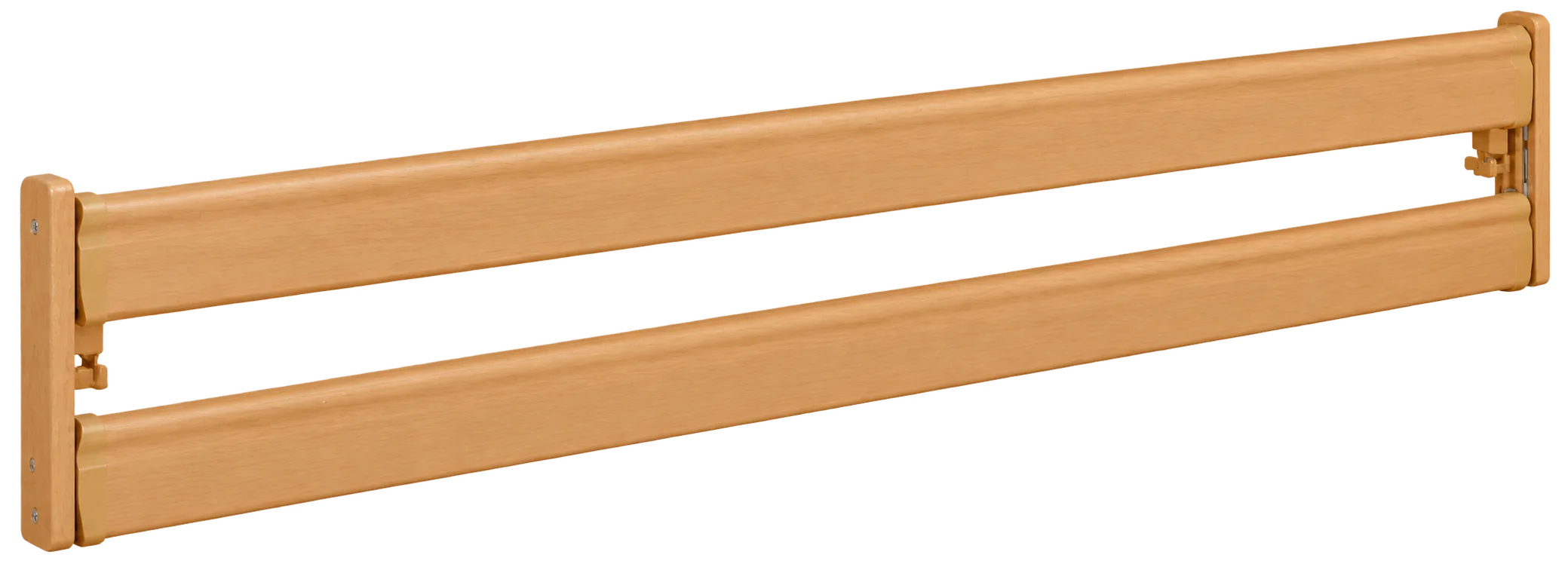

Wooden slatted drop-down guardrail

A slatted guardrail supplied as standard, lowering clear of the deck for transfers and personal care rather than requiring removal. Quantity and side configuration confirmed at quotation.

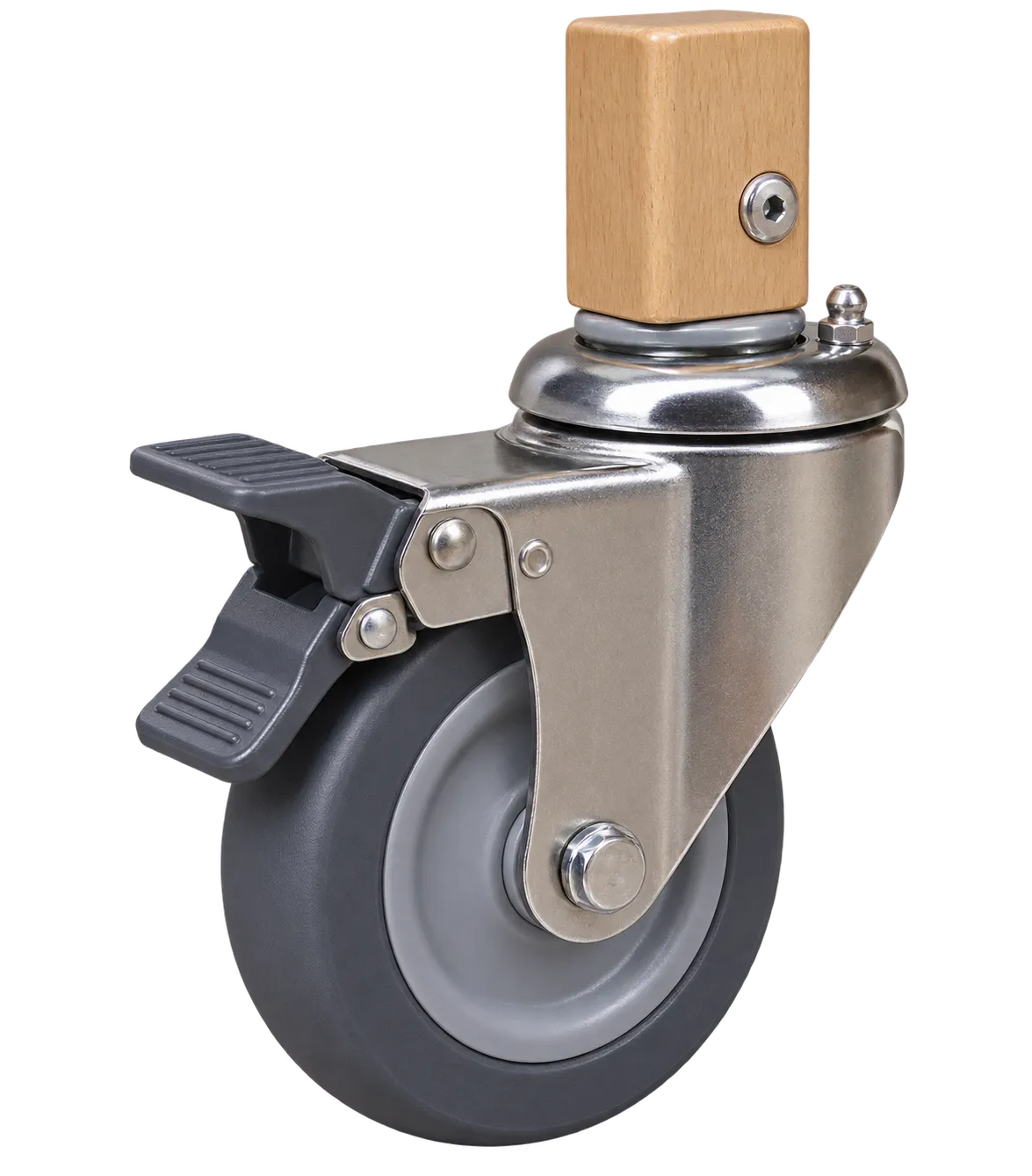

Brake system on the castor set

A fitted brake system secures the bed in position for care episodes and transfers. Braking arrangement across the castor set confirmed at quotation.

Deck footprint 2040 × 960 mm

An overall deck of 2040 × 960 mm at a published 480 mm height, sized for standard UK mattresses and high-specification foam, hybrid or alternating-air replacements.

Four frame-mounted drainage hooks

Designated positions for catheter and drainage bags, keeping lines clear of the profiling sections and bags positioned below patient level.

Single-crate delivery at 2020 × 930 × 480 mm

Ships in one crate at approximately 0.90 m³, sized for domestic and care home access routes rather than loading-bay handling.

Optional room furniture package

Mattress, bedside table, dining table and chairs, companion chairs and mobile dining table available as configured options.

Manufacturer quality system certification

Hengshui Jiadun Medical Equipment publishes ISO 9001, ISO 14001, ISO 45001 and ISO 13485 certification alongside EU CE certification, with certificate scope confirmed at quotation.

The JD-YLC5-001 answers a question that specification sheets rarely address: how do you give someone a fully profiling bed without making their room feel like a ward? Wood-effect head and tail boards, matching side panels and a slatted drop-down guardrail sit over a deck that raises the backrest to 75°, the legs to 40°, and tilts head-down and head-up on powered height — the full daily positioning range of long-term nursing, controlled from one handset. It suits CQC-regulated care and nursing homes, hospices, rehabilitation and long-stay wards, and home-based care arranged privately or through community teams. Medigear.uk supplies the JD-YLC5-001 across the UK with conformity documentation, guardrail and mattress compatibility review, room furniture options and service support. Contact our team for a quotation, multi-unit pricing or bespoke configuration.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

The five powered movements are backrest raise and lower, leg-section raise and lower, whole-frame forward tilt, whole-frame backward tilt, and overall height. That set covers everyday long-term nursing: seated positioning for meals and visitors, knee-break support, Trendelenburg and reverse Trendelenburg, and a working height that protects carers' backs. It does not include powered lateral tilt—this bed does not tilt left or right. Where a resident needs assisted side-to-side turning as a core part of their pressure care plan, that is delivered here by manual repositioning with slide sheets, or by a lateral-turning mattress system, rather than by the frame.

The manufacturer's standard configuration lists one wooden guardrail. That has direct consequences for a falls risk assessment, because a bed railed on one side only offers protection on that side. Two arrangements are common in practice: the bed is positioned with the railed side outward and the unrailed side against a wall, or a second guardrail is added. Confirm the supplied quantity and whether a matching second rail is available before you complete a risk assessment, not after. Medigear.uk confirms rail configuration and availability at the time of quotation.

This is the single most important safety question for a bed of this type, and it deserves a direct answer. MHRA analysis found that most reported bed rail incidents occurred in community care settings — people's own homes and nursing homes — rather than acute hospitals. Full-length single-piece rails need particular attention on a profiling bed, because entrapment gaps that are not visible with the bed flat can open as the backrest and leg sections articulate. Check gaps through the full profiling range with the mattress actually in use, not just in the horizontal position. MHRA guidance on managing and using bed rails safely, updated in August 2023, requires an individual risk assessment before rails are used and a fresh assessment whenever the bed system changes, including a change of mattress. The NHS classifies chest or neck entrapment in a bed rail as a Never Event, and the CQC has prosecuted providers over bed rail failures.

The assembled frame is 2040 mm long and 960 mm wide, and it ships flat in a crate of 2020 × 930 × 480 mm. Delivery into a house or a care home bedroom is normally limited by the tightest turn on the route rather than by the doorway itself — a stair half-landing, a narrow hallway corner, or a lift car. Measure that turn before booking delivery and plan a two-person handling route. Where the bed is destined for an upper floor, request the confirmed shipped weight from Medigear.uk, since it is not published in the manufacturer's literature.

Adult medical beds for UK use are assessed against BS EN 60601-2-52:2010+A1:2015, which covers basic safety and essential performance for adult medical beds and sets the dimensional requirements governing entrapment gaps. Castors fall under BS ISO 22882:2016 and general electrical safety under the IEC 60601-1 series. Beds for smaller adults and children are covered by the separate BS EN 50637:2017 specification — the JD-YLC5-001 is an adult bed. It is not a substitute where a smaller-anatomy bed is indicated, a point MHRA has repeatedly flagged in entrapment incident analysis. Medigear.uk confirms the manufacturer's test evidence at quotation.

Hengshui Jiadun Medical Equipment publishes ISO 9001, ISO 14001, ISO 45001 and ISO 13485 certification alongside EU CE certification for its bed range. That is manufacturer-published positioning rather than an asserted UK regulatory status. Great Britain currently continues to accept CE-marked devices under the extended acceptance arrangements, with UKCA available as the alternative route. Medigear.uk supplies the declaration of conformity, certificate scope and current UKCA position with every quotation. A powered adult bed in this configuration is typically handled as Class I under the UK Medical Devices Regulations 2002, or higher, use-dependent — confirmed against the declaration at order.

Wood-effect panels in healthcare furniture are normally sealed laminates rather than bare timber, and the sealed surface makes routine disinfection possible. Two checks matter before purchase. Confirm the panel finish is fully sealed with no exposed edges or raw joints where fluid can wick in, and confirm the finish tolerates the disinfectant your setting actually uses — chlorine-releasing agents degrade some laminates over repeated cycles. Slatted rails need attention along the slat faces and between the slats, since these are high-touch surfaces that routine wipe-downs often miss. Request the manufacturer's cleaning instructions through Medigear.uk and check them against your infection prevention policy before commissioning.

The 2040 × 960 mm deck accommodates standard UK mattresses and high-specification foam, hybrid and alternating-air replacements within that footprint. Mattress depth changes the effective guardrail height and therefore the entrapment assessment — a deeper dynamic mattress can drop the exposed rail height below the safe threshold, which is exactly the scenario MHRA identifies when equipment is swapped without reassessment. A dynamic mattress also needs a pump position and a socket that will not foul the tilt travel or snag the handset cable. Confirm the mattress model with Medigear.uk so bed and surface are assessed together.

Yes. A bed of this specification is routinely used in private residences and care homes. NHS-funded provision at home is normally arranged through a community occupational therapist, a hospital discharge team, an Integrated Care Board or NHS Continuing Healthcare, and depends on assessed clinical need — reduced mobility, pressure ulcer risk or end-of-life care — with waiting times varying by area. Private purchase through Medigear.uk is a direct alternative when the assessment route is slow or the criteria are not met. In either case, arrange an occupational therapist assessment for rail suitability and transfer technique before using he bbed

Typical warranty on electric profiling beds in this class runs 12–24 months, with terms confirmed at quotation. Plan a documented annual service covering actuator function, handset and cable condition, brake engagement, rail locking and fastener integrity — MHRA incident analysis repeatedly identifies worn or unreplaced parts as the cause of bed-related falls. Add the bed to your electrical safety testing schedule in line with your provider policy. Medigear.uk can quote extended service cover and spare rail, castor, handset and actuator assemblies alongside the initial order.
