Grace Medy BCZL-YLL-2

Neurological rehabilitation wards benefit from the Grace Medy BCZL-YLL-2 standing rehabilitation training bed's dual-function design, which allows a single session to include motor-driven standing from 0–80° for upright weight-bearing and manual back lift from 0–65° for intermediate seated activities, without patient transfer. The training table and upper limb trainer support rehabilitation in both positions. Medigear.uk supports NHS neurological rehabilitation unit procurement teams throughout the specification and approval process.

Spinal injury and complex care settings benefit from the BCZL-YLL-2's four fixed belts and 0–80° standing tilt for patients requiring full mechanical support, and from the manual back lift for semi-reclined positioning during rest periods and upper-limb work between standing episodes. The manual rocker operates without motor power, providing infrastructure-independent back angle adjustment. Medigear.uk can provide specification documentation for spinal injury units and complex care procurement assessments.

Long-term care and rehabilitation centres benefit from the BCZL-YLL-2's dual-function design, which maximises clinical versatility by combining standing and intermediate positioning within a single unit. Therapists can alternate between back lift and standing tilt without transferring the patient — particularly valuable in shared-device settings where session time is fixed. Medigear.uk can provide bulk procurement terms for rehabilitation centres building a standing rehabilitation capacity.

Home care settings benefit from the BCZL-YLL-2's manual back lift, which allows a carer to adjust the patient's back angle using the manual rocker for rest, feeding, and seated activities without activating the motor. The compact 800 mm frame fits through standard domestic doorways. Medigear.uk offers individual buyer consultation and delivery coordination for patients and families arranging home rehabilitation.

Only Standing Rehabilitation Bed in the Range With Both Motor Tilt and Manual Back Lift

The BCZL-YLL-2 is the only model in the Grace Medy standing rehabilitation range to combine a motor-driven standing tilt (0–80°) with a separate manual back lifting function (0–65°) operated by an included manual rocker, making it the most clinically versatile single unit in the range. Neither the BCZL-YLL-1 nor the BCZL-YLL-3 provides a manual back lift in addition to the standing tilt. For rehabilitation settings that need both upright standing and reclined sitting positioning within a single device and session, the BCZL-YLL-2's dual-function specification is the appropriate choice. Contact Medigear.uk for a three-model comparison.

Manual Rocker for Independent Back Section Control

The manual rocker supplied as standard with the BCZL-YLL-2 allows clinical staff to raise and lower the back section from 0° to 65° (±10°) via a hand-operated mechanism independent of the motor system, providing fine positional control at intermediate angles without relying on motor operation. For rehabilitation sessions that require frequent, small adjustments to the back angle for comfort, positioning, and activity transitions, a manually operated rocker provides responsive, tactile control that a motor system does not. Confirm the manual rocker type and operational sequence with the Medigear.uk procurement team.

Dual-Function Session Design: Standing and Seated in a Single Platform

The BCZL-YLL-2 allows a single rehabilitation session to incorporate a motor-driven standing phase and a manually operated seated phase without patient transfer, supporting multi-phase rehabilitation protocols that combine weight-bearing standing with seated upper-limb exercises, functional tasks, and rest periods. Eliminating the need to transfer a patient between standing rehabilitation equipment and a seated exercise position reduces session transitions, saves clinical time, and reduces manual handling burden per rehabilitation episode. For physiotherapy departments managing high patient volumes in constrained session time, the dual-function capability of the BCZL-YLL-2 increases session productivity. Medigear.uk can provide clinical configuration guidance for procurement teams.

Confirmed 0–80° Motor Standing Tilt With Emergency Stop

The BCZL-YLL-2 motor-driven standing tilt is confirmed at 0° to 80° (±5°), placing the patient in a near-vertical position appropriate for standard weight-bearing rehabilitation protocols. The emergency stop halts all motor tilt movement immediately, providing the safety response required for orthostatic intolerance during standing sessions. The confirmed 80° tilt specification supports procurement documentation and risk assessment submissions for NHS clinical governance processes. Confirm the tilt speed and emergency stop mechanism with Medigear.uk.

Upper Limb Trainer and Training Table for Comprehensive Session Support

Both an upper limb trainer and a training table are supplied as standard with the BCZL-YLL-2, supporting structured upper extremity rehabilitation and functional task practice in both the semi-reclined back-lifted position and the upright standing position during a single session. Having both accessories available on the same platform allows the therapist to transition between back-lift and standing-tilt activities without repositioning the rehabilitation accessories. Confirm the upper limb trainer type and training table dimensions with the Medigear.uk procurement team.

CE Certification for NHS Rehabilitation and Specialist Care Procurement

The BCZL-YLL-2 carries CE marking under Medical Device Directive 93/42/EEC, satisfying the baseline requirement for NHS rehabilitation unit procurement frameworks, CQC-regulated care settings, and OJEU tendering. Medigear.uk holds the complete declaration of conformity and technical file, available to procurement officers and clinical governance reviewers on request. For distributors building specialist rehabilitation equipment catalogues, CE certification supports straightforward compliance with product listing requirements across NHS and private-sector supply channels.

Compact 800 mm Frame for Space-Efficient Dual-Function Deployment

The BCZL-YLL-2 delivers its dual standing and back-lift functionality within the same compact 800 mm frame as the BCZL-YLL-3, making it suitable for the same ward-bay and domestic-room configurations. For procurement officers selecting between the BCZL-YLL-2 and BCZL-YLL-3, the additional manual back-lift function of the BCZL-YLL-2 adds clinical versatility without increasing the footprint, making it a strong default choice when floor space is equivalent for both models. Medigear.uk can provide dimensioned drawings to support the bay clearance assessment.

Guardrail Supplied as Standard for Lateral Containment

A guardrail set is explicitly listed as a standard accessory with the BCZL-YLL-2, providing lateral containment during reclining and intermediate positioning phases. For procurement officers building equipment specifications that include guardrail requirements for patient safety during bed use, the explicit standard guardrail provision supports specification compliance without requiring a separate accessory order. Confirm guardrail height, material, and lowering mechanism with the Medigear.uk procurement team.

Overall Dimensions: 1900 × 800 × 575 ± 20 mm

The BCZL-YLL-2 measures 1900 mm in length and 800 mm in width, matching the BCZL-YLL-3 footprint and suited to the same ward bay and domestic room configurations. Medigear.uk can provide dimensioned drawings for bay clearance planning.

Bed Platform: 1775 × 520 mm

The patient surface measures 1775 × 520 mm, slightly smaller than the BCZL-YLL-3's 1800 × 545 mm. Confirm mattress or cushion compatibility with the Medigear.uk procurement team.

Foot Pedal: 460 × 300 ± 20 mm

The foot pedal measures 460 × 300 mm (±20 mm), providing the weight-bearing surface during vertical tilt. Confirm surface material, anti-slip specification, and adjustability with Medigear.uk.

Motor Standing Tilt: 0° to 80° (±5°)

The motor-driven tilt ranges from 0° to 80°, with a stated tolerance of ±5°. Confirm tilt speed and intermediate position hold capability with the Medigear.uk procurement team.

Manual Back Lifting Angle: 0° to 65° (±10°)

The manual back lift spans 0° to 65°, with a stated tolerance of ±10°, and is operated by the supplied manual rocker independently of the motor system. This is the key clinical differentiator of the BCZL-YLL-2 from the BCZL-YLL-3.

Manual Rocker: Supplied as Standard

A manual rocker is supplied as standard for operating the back lift function. Confirm the rocker type, attachment mechanism, and operational sequence with the Medigear.uk procurement team.

Fixed Safety Belts: Four Supplied as Standard

Four fixed safety belts are supplied for multi-segment patient restraint during the standing tilt. Confirm belt dimensions, fastening mechanism, and maximum patient weight rating with Medigear.uk.

Upper Limb Trainer: Supplied as Standard

An upper-limb trainer is supplied as standard, supporting structured upper-extremity rehabilitation in both the back-lifted and standing positions. Confirm the trainer type, range of motion, and attachment mechanism with Medigear.uk.

Training Table: Supplied as Standard

A training table is supplied as standard for functional task-based rehabilitation during both the back-lifted seated and the standing tilt positions.

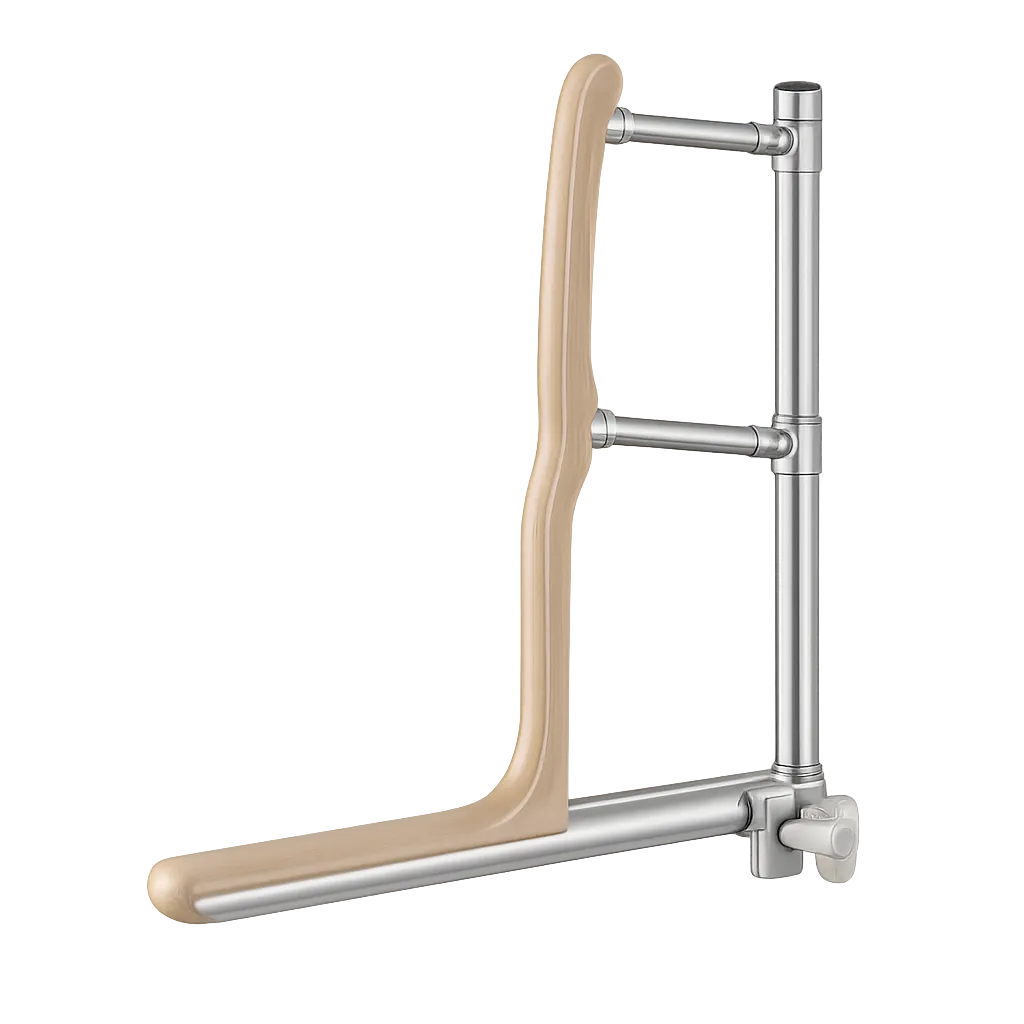

Guardrail: Supplied as Standard

A guardrail set is supplied as standard. Confirm guardrail height, material, count, and lowering mechanism with the Medigear.uk procurement team.

Emergency Stop Function

An emergency stop halts all motor tilt movement immediately when activated. The manual back lift mechanism is operated manually and does not require a motor stop. Confirm the emergency stop activation mechanism with Medigear.uk.

CE Certification: 93/42/EEC

The BCZL-YLL-2 carries CE marking under Medical Device Directive 93/42/EEC. Full certification documentation, declaration of conformity, and technical files are available through Medigear.uk for NHS procurement submissions, OJEU tendering, and clinical governance review.

The Grace Medy BCZL-YLL-2 standing rehabilitation training bed delivers a CE certified dual-function platform combining motor-driven standing tilt from 0° to 80°, manual back lifting from 0° to 65° via manual rocker, four fixed safety belts, emergency stop, upper limb trainer, training table, and guardrail set — all within a compact 800 mm frame suited to neurological rehabilitation wards, spinal injury units, long-term care settings, and home rehabilitation environments where both standing and seated positioning are required from a single device. Its dual standing and back lift capability makes it the most clinically versatile model in the Grace Medy standing rehabilitation range and a strong choice for NHS rehabilitation procurement officers, distributors building standing rehabilitation equipment catalogues, and patients and families arranging intensive home rehabilitation. Full specification, comparison documentation with the BCZL-YLL-3, and certification files are available through Medigear.uk. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
