Grace Medy BCM1-WS01-22
Grace Medy Hospital Furniture & Fixtures

Grace Medy BCM1-WS01-22

Single Back Lift, Compact Frame — Manual Back Positioning Without Operational Complexity

The Grace Medy BCM1-WS01-22 one-function manual hospital bed delivers crank-operated back elevation from 0° to 75° at a fixed platform height of 500 mm within a compact 960 mm frame, suited to wards, rehabilitation rooms, and home care where back positioning is the primary clinical need. Its single back lift function provides a focused, infrastructure-independent positioning solution. Available through Medigear.uk.

Sections
Manual bed
Categories
Hospital Furniture & Fixtures
Condition
New
Origin
China
Seller Type
Certified Professional Seller
Size:
2090 × 960 × 500 mm
CE & ISO Certified
Global Shipping
Supplier: Medigear
Share: Facebook LinkedIn Twitter Pinterest

The Grace Medy BCM1-WS01-22 is a one-function manual hospital bed engineered for crank-operated back elevation at a fixed platform height of 500 mm, suited to acute inpatient wards, rehabilitation rooms, and home care environments where back positioning is the sole clinical adjustment required. Its single-function manual drive operates only the back section, with the fixed-height specification and the absence of a knee section removing all other positional axes from the operational scope. Crank type, material, and count should be confirmed with the Medigear.uk procurement team. Medigear.uk provides comprehensive technical documentation for procurement teams that require configuration and compliance details.

The bed frame articulates only at the back section via the manual crank system. The back section adjusts from 0° to 75°, covering the clinical range from fully supine positioning through Fowler's position to high-Fowler's for respiratory management, assisted feeding, and post-operative recovery. No knee section adjustment is provided on this model, and the platform height is fixed at 500 mm with no height-crank mechanism. Crank storage and protrusion design should be confirmed with the Medigear.uk procurement team.

Guardrail type, material, count, and lowering mechanism for the BCM1-WS01-22 should be confirmed with the Medigear.uk procurement team. The product photograph shows full-length side rails. Head and foot boards are supplied as a matched set; confirm board material and any anti-collision wheel provision with Medigear.uk. Mattress platform dimensions and compatible depth range should also be confirmed with the Medigear.uk procurement team before ordering.

The load-bearing frame is constructed from high-grade steel with a powder-coat finish resistant to repeated hospital-grade disinfection. Castor type, size, and brake mechanism should be confirmed with the Medigear.uk procurement team; the product photograph shows twin-wheel castors. Certifications include CE marking under Medical Device Directive 93/42/EEC. Full certification documentation is available through Medigear.uk for NHS procurement and tendering processes.

General inpatient wards benefit from the Grace Medy BCM1-WS01-22 one-function manual hospital bed's single back-lift function, delivering 0° to 75° back elevation for respiratory management, assisted feeding, and post-operative recovery without added operational complexity. The compact 960 mm frame allows easier transit through tighter corridors. The single-function scope shortens bed induction requirements for agency and bank staff. Medigear.uk supports NHS procurement teams throughout the specification and approval process.

Rehabilitation settings benefit from the BCM1-WS01-22, in which back positioning is the primary therapeutic goal and knee or height adjustments are managed through care protocols. The 0° to 75° range supports supine rest through supported sitting to near-upright positioning for post-surgical and respiratory rehabilitation. The compact 960 mm frame allows placement in smaller rooms. Medigear.uk can provide specification packs for rehabilitation procurement teams.

Care home environments benefit from a single-function manual bed that provides back elevation for assisted meals, personal care, and comfort positioning, without the multi-axis operational demands. The fixed 500 mm platform suits most transfer scenarios, and the single-crank operation is learned quickly without specialist orientation. Medigear.uk offers care home procurement teams volume pricing and delivery coordination.

Home care and post-discharge settings benefit from the BCM1-WS01-22's single-function simplicity, allowing a trained family carer to provide reliable back elevation without having to manage multiple adjustment axes. The fixed 500 mm platform and compact 960 mm width fit more readily through domestic doorways and within standard bedroom layouts than wider multi-function hospital beds. Medigear.uk offers individual buyer consultation and delivery coordination for families arranging home hospital provision ahead of discharge.

Full Clinical Back Range in the Simplest Manual Platform

The BCM1-WS01-22 delivers the full clinical back elevation range — 0° to 75° — in a one-function manual platform, covering supine rest, Fowler's position for cardiorespiratory care, and high-Fowler's for respiratory management and assisted feeding without requiring a multi-function bed. For clinical settings where knee and height adjustments are managed through care protocols rather than the bed mechanism, this single-function scope provides the back-positioning capability that matters most in most daily patient care interactions. Medigear.uk procurement advisors can assist with comparing specifications across the one-function, two-function, and three-function manual ranges.

Simplest Operational Interface for Staff and Carers

With one adjustable function and a fixed platform height, the BCM1-WS01-22 presents the most straightforward operational interface of any bed in the Grace Medy manual range. Agency nurses, rotating bank staff, care home workers, and family carers can learn the single back lift operation during standard bed orientation without requiring additional functional training. For ward managers with high staff turnover or care homes with variable staffing levels, the reduced training overhead of a one-function bed has direct operational benefit. Medigear.uk can supply simplified operating guides for ward induction packs.

Compact 960 mm Frame Without Sacrificing Back Positioning Range

The BCM1-WS01-22 delivers a 0° to 75° back section range within a 960 mm overall frame width, narrower than the standard 1040 mm hospital bed profile, making it better suited to tighter clinical bays, rehabilitation rooms, and domestic environments where bed clearance is a practical constraint. The compact frame improves manoeuvrability through ward corridors and domestic doorway configurations that would restrict a full-width bed. For home care purchasers, the narrower profile allows placement in standard domestic bedrooms without restricting carer access. Medigear.uk can provide dimensioned drawings for bay and room fit planning.

Fixed 500 mm Platform for Focused Single-Axis Operation

The BCM1-WS01-22's fixed 500 mm platform removes height-crank operation entirely, focusing the manual system on back elevation alone and eliminating the risk of accidental height adjustment during back crank operation. In clinical settings where a fixed-height protocol manages platform height, the fixed-height specification reduces operational variables to a minimum. It shortens the time required to orientate staff and carers to the bed. For buyers who require height adjustment, Medigear.uk stocks height-adjustable alternatives across the two-function and three-function manual and electric ranges.

CE Certification for NHS and Regulatory Compliance

The BCM1-WS01-22 carries CE marking under Medical Device Directive 93/42/EEC, satisfying the baseline requirement for NHS supply frameworks, CQC-regulated care settings, and OJEU tendering. Medigear.uk holds the complete declaration of conformity and technical file, available to procurement officers and clinical governance reviewers on request. For distributors building verified-supplier-accredited catalogues, CE certification supports straightforward product-listing compliance across NHS and private-sector supply channels.

Infrastructure-Independent Back Positioning at Lowest Running Cost

The BCM1-WS01-22 delivers back elevation through a manual crank that requires no electrical connection to the bed frame, removing all motor servicing, electrical compliance, and powered supply dependency from the total cost of ownership. With no motor components, the frequency of scheduled maintenance is lower than that of any electric model, reducing long-term running costs for institutional buyers and home care purchasers alike. For procurement teams comparing the total cost of ownership across the Grace Medy range, the one-function manual specification represents the lowest-cost option for environments where back positioning is the sole requirement. Medigear.uk can provide cost-comparison documentation on request.

Spec Transparency: Unconfirmed Details Flagged for Procurement Safety

The BCM1-WS01-22 product page transparently flags specifications not confirmed from the available manufacturer image — including crank type, guardrail type and count, castor brake mechanism, and mattress platform dimensions — directing procurement teams to the Medigear.uk procurement team for verified information before purchasing. This approach aligns with clinical governance requirements for NHS procurement officers and care home compliance leads, who must base purchasing decisions on confirmed, rather than inferred, specification data. Medigear.uk can provide a full confirmed specification pack for any order.

Two One-Function Models: Choosing Between BCM1-WS01-22 and BCM1-SMJ02-5

The Grace Medy range includes two one-function manual hospital beds — the BCM1-WS01-22 and the BCM1-SMJ02-5 — both offering 0° to 75° back elevation at a fixed platform height of 500 mm ht within a 960 mm frame. The choice between the two models depends on differences in their standard configurations, including guardrail type, headboard and footboard design, and castor specifications, which should be confirmed and compared by the Medigear.uk procurement team. For distributors building one-function bed catalogues, Medigear.uk can provide a full side-by-side specification comparison to support product selection and positioning.

Distributor Flexibility for Entry-Level One-Function Bed Catalogues

The BCM1-WS01-22 is available through Medigear.uk for bulk distributor and OEM supply arrangements, offering an entry-level, one-function manual bed option for distributors building tiered clinical and care-home product catalogues. Distributors can position the BCM1-WS01-22 alongside the BCM1-SMJ02-5, two-function, and three-function models to offer buyers a clear specification and price progression from single back-lift-only through to full height-adjustable three-function capability within the Grace Medy product family. Contact Medigear.uk for volume terms and commercial review.

Fixed Platform Height: 500 mm

The BCM1-WS01-22 operates at a fixed platform height of 500 mm, appropriate for most standard patient transfers and bedside nursing procedures. The fixed-height specification, combined with the absence of a knee section, means back elevation is the sole adjustable function on this model.

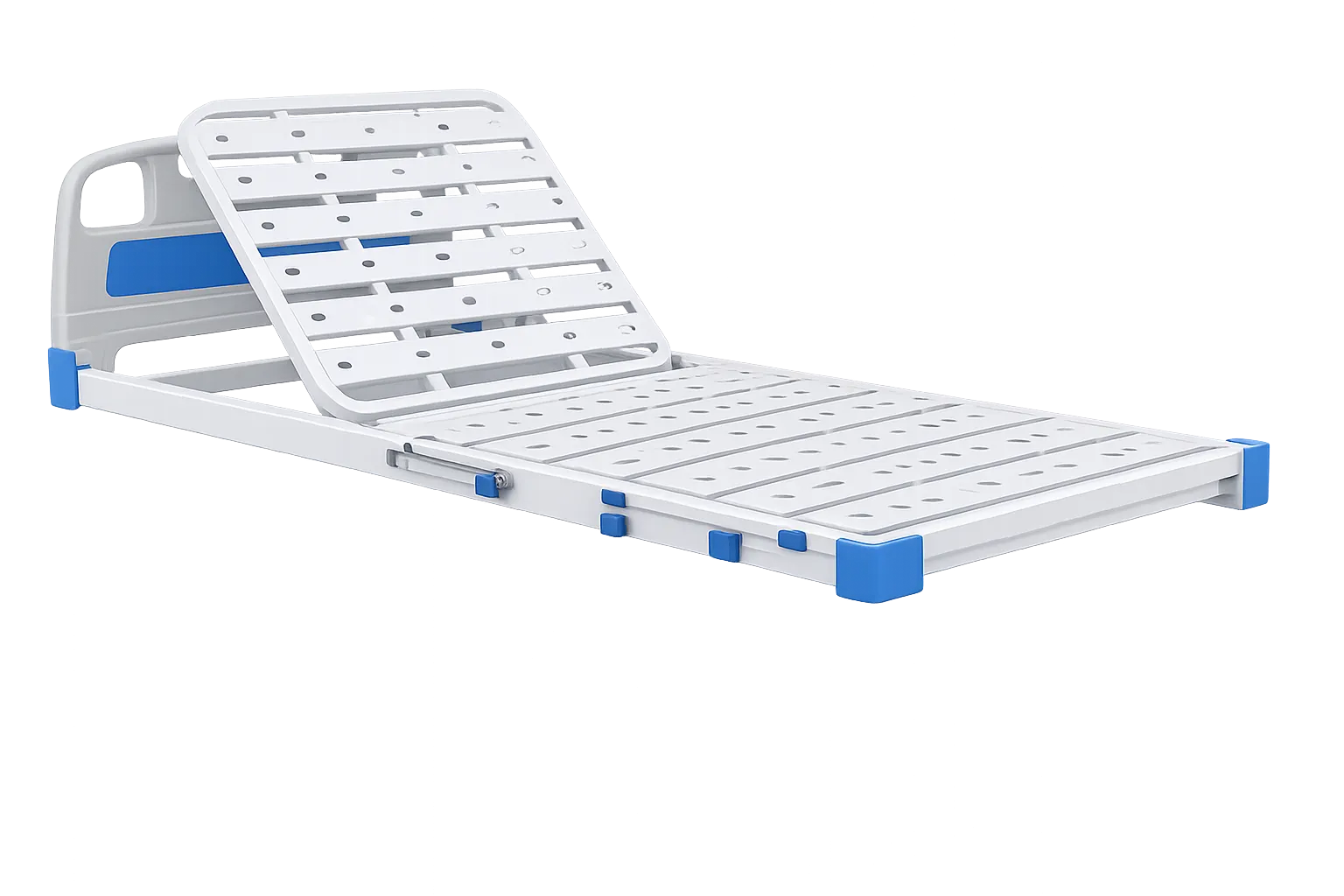

Backrest Adjustment: 0° to 75°

The back section adjusts from a fully flat 0° to a maximum of 75° through the manual crank, covering supine positioning through Fowler's and high-Fowler's for respiratory management, assisted feeding, and post-surgical recovery. This is the only adjustable axis on the BCM1-WS01-22.

No Knee Section: Back Elevation Only

The BCM1-WS01-22 does not include a knee section adjustment mechanism, and the platform height is fixed. All clinical positioning is achieved by elevating the back between 0° and 75°. For buyers requiring knee section adjustment, Medigear.uk stocks two-function and three-function manual models.

Overall Frame Width: 960 mm

The overall frame width of 960 mm is narrower than the standard 1040 mm hospital bed profile, improving manoeuvrability through tighter ward corridors, rehabilitation room doorways, and domestic entrance widths. Procurement teams should verify local clearances against the 960 mm frame width before placing orders. Medigear.uk can provide dimensioned drawings for facility planning.

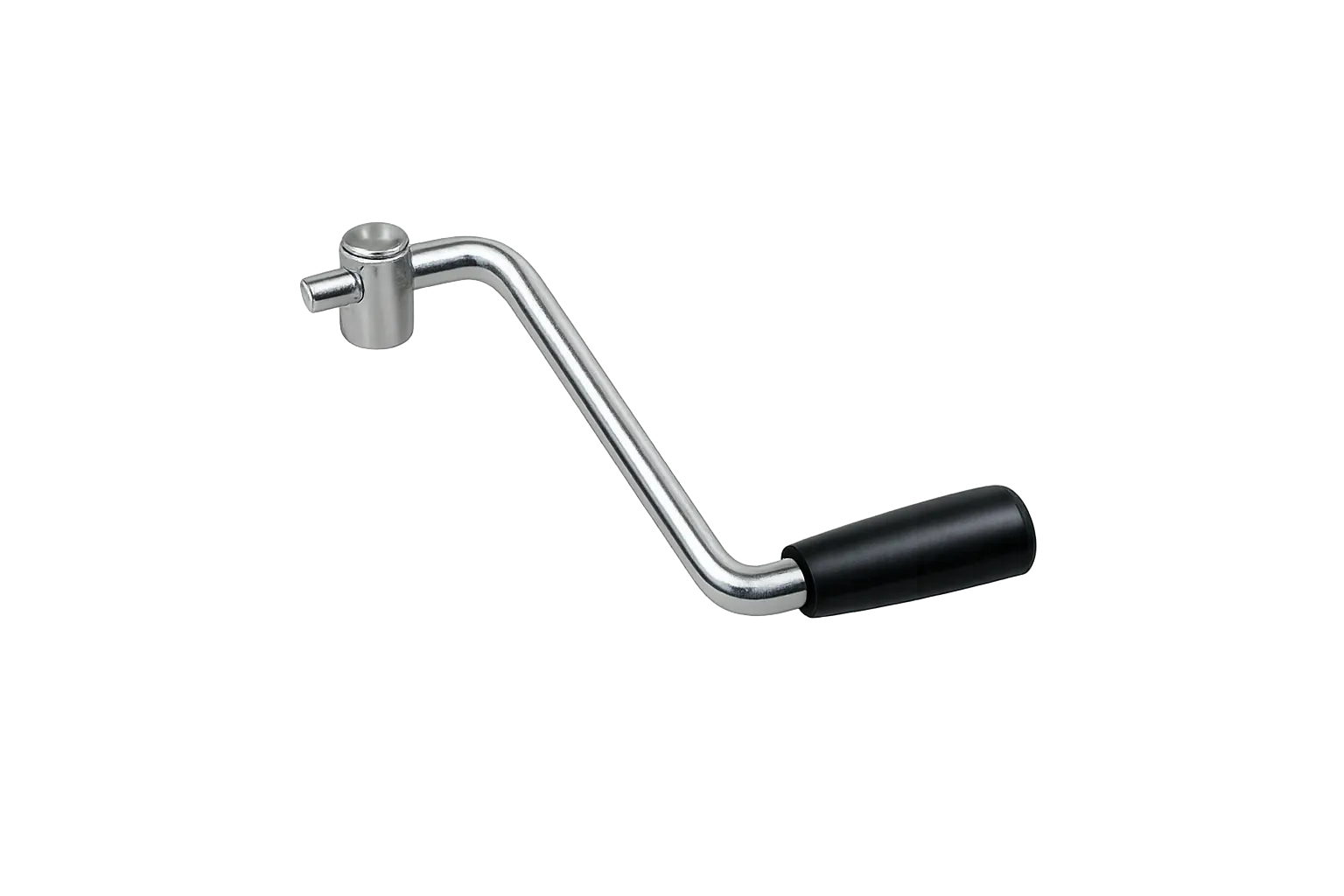

Crank Specification

Crank type, count, material, and storage design for the BCM1-WS01-22 should be confirmed with the Medigear.uk procurement team. A crank handle is visible in the product photograph at the foot end of the bed. Confirm ABS versus stainless steel specification and folding or fixed design with Medigear.uk before procurement.

Guardrail System

Guardrail type, material, count, and lowering mechanism for the BCM1-WS01-22 should be confirmed with the Medigear.uk procurement team. Full-length side rails are visible in the product photograph on both sides of the bed. Full guardrail specification is available from Medigear.uk as part of the standard procurement documentation pack.

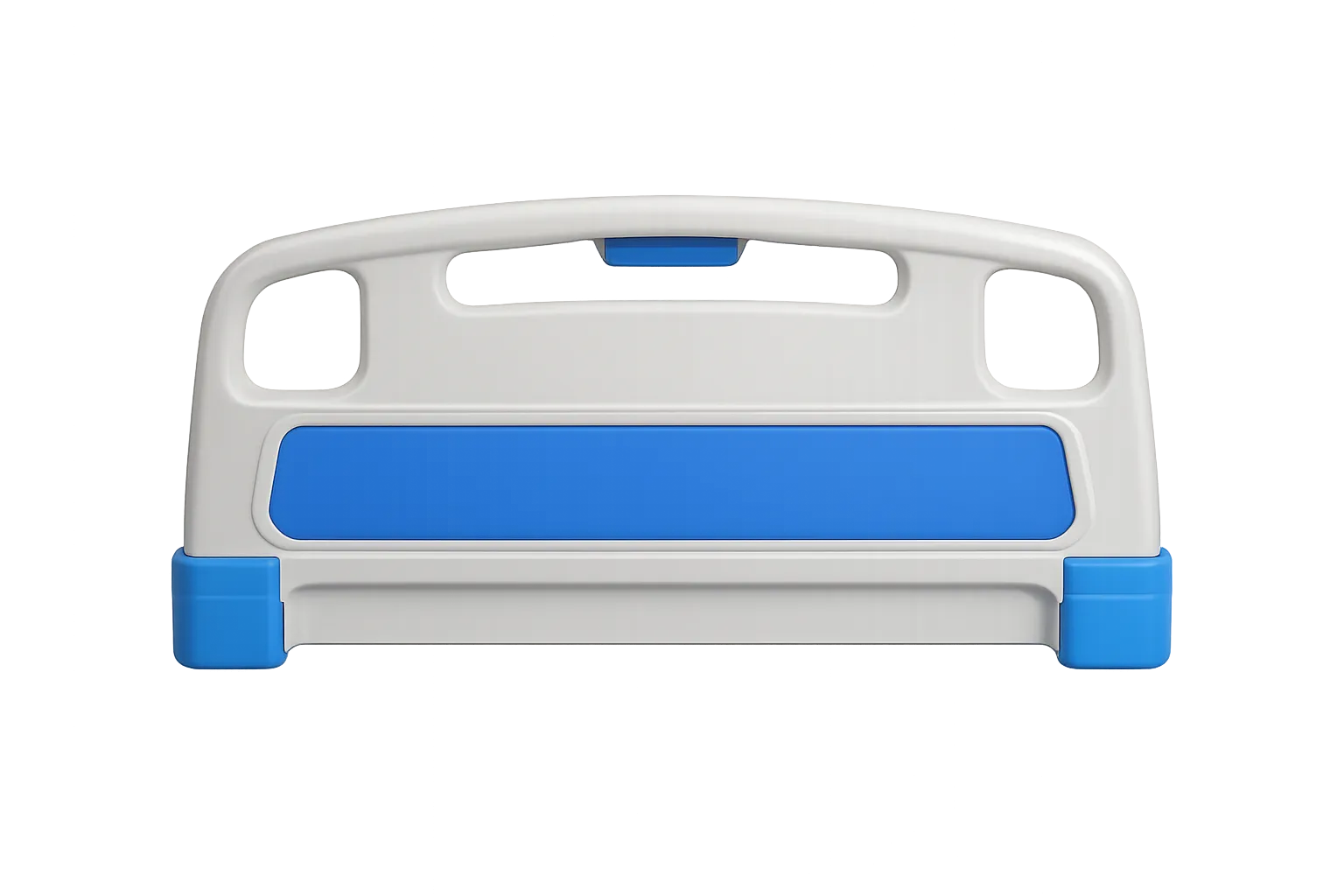

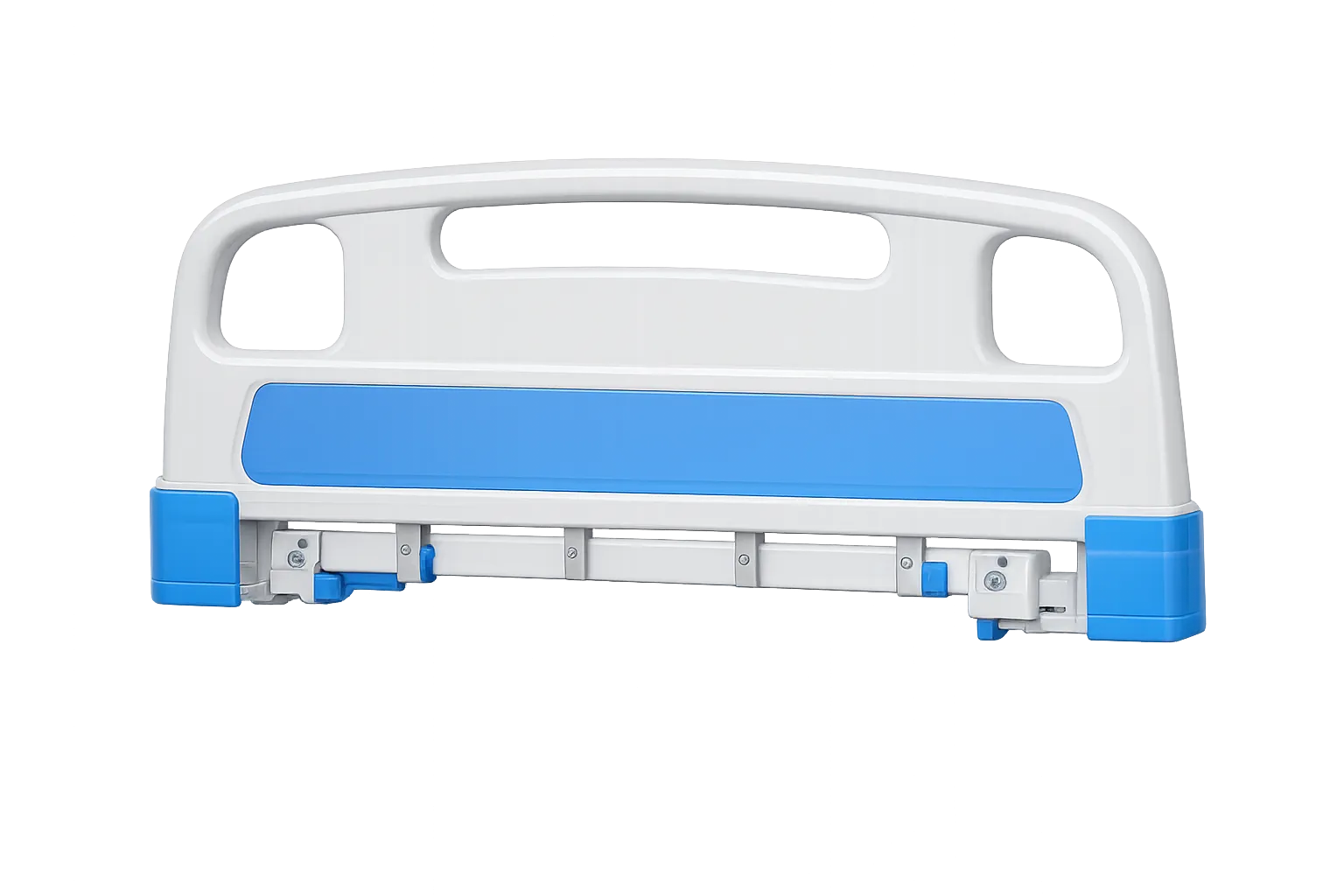

Head and Foot Boards: Matched Set Supplied

Head and foot boards are supplied as a matched set, defining the bed's overall profile and contributing to patient containment and ward aesthetics. Confirm board material, anti-collision wheel provision, and colour options with the Medigear.uk procurement team before placing a bulk or OEM order.

Mattress Platform Dimensions

Exact mattress platform dimensions and compatible depth range should be confirmed with the Medigear.uk procurement team before ordering. The 960 mm overall frame width means mattress width compatibility must be verified against the actual platform width. Confirm full mattress dimensions with Medigear.uk.

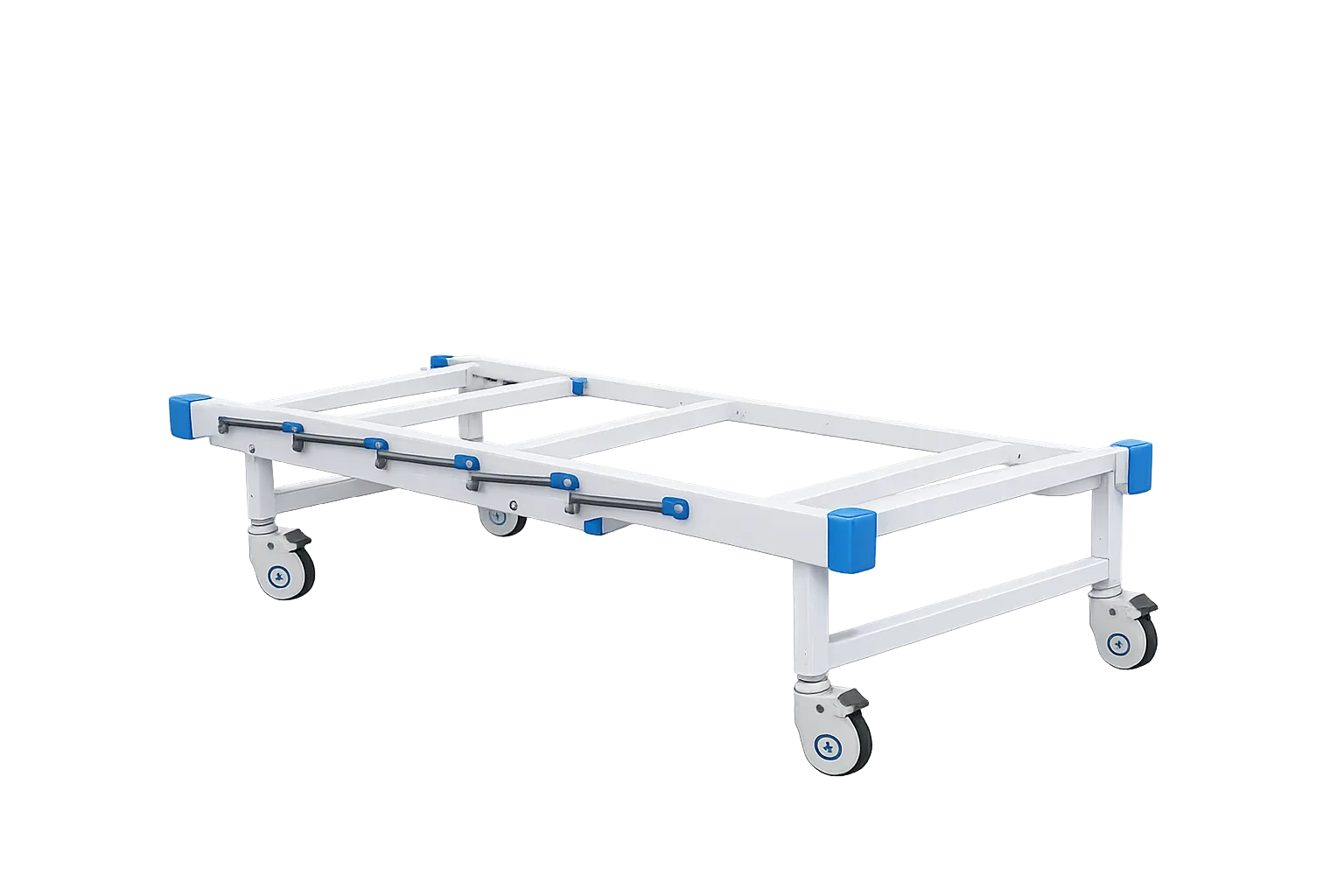

Frame Material: High-Grade Powder-Coated Steel

The load-bearing frame is constructed from high-grade steel with a powder-coated surface finish resistant to repeated cleaning with standard hospital-grade disinfectants. Chemical compatibility information is available from Medigear.uk for infection control assessments.

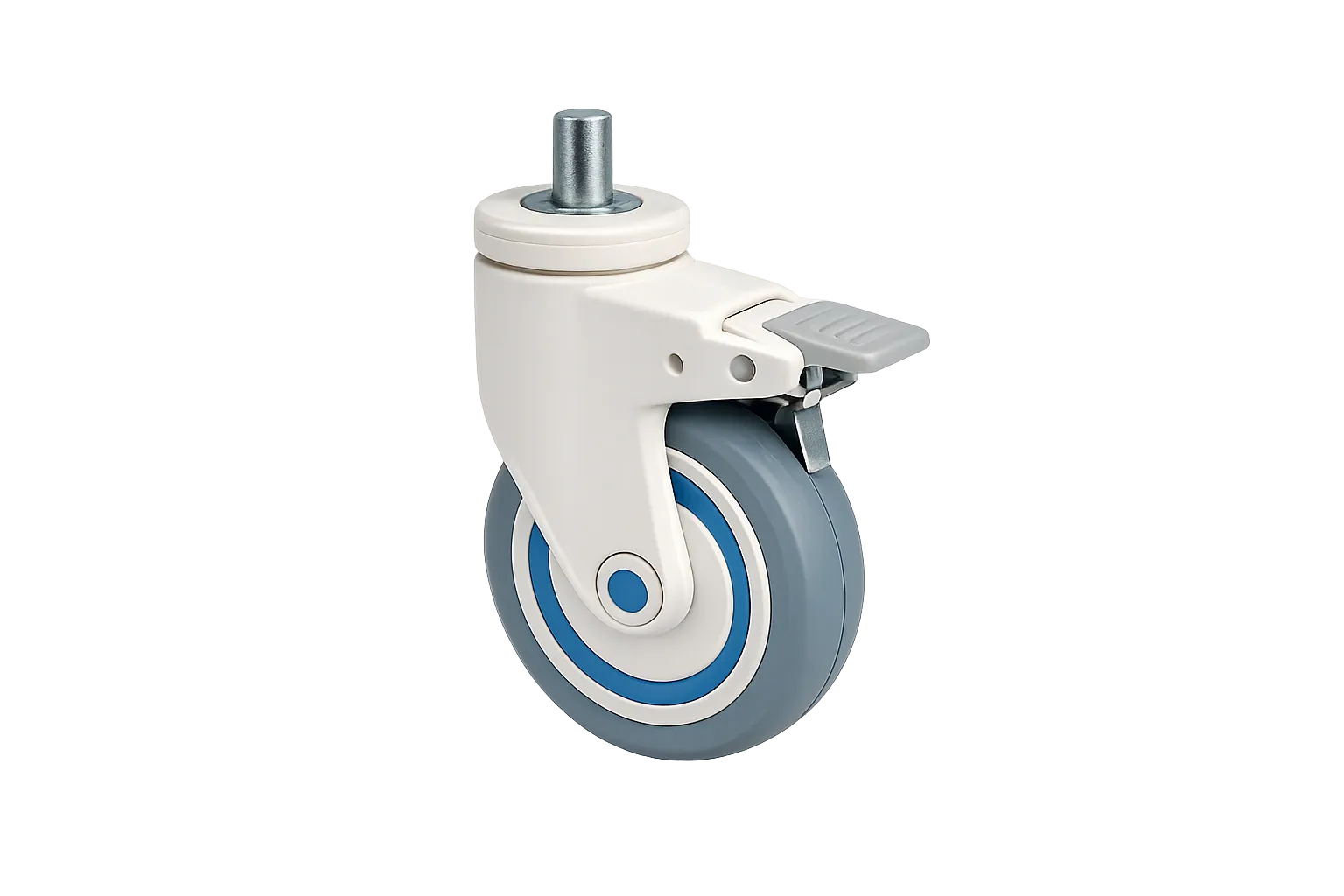

Castor Specification

Castor size, type, and brake mechanism for the BCM1-WS01-22 should be confirmed with the Medigear.uk procurement team. Twin-wheel castors are visible in the product photograph. Confirm brake configuration, load rating, and exact castor specification with Medigear.uk before procurement.

CE Certification: 93/42/EEC

The BCM1-WS01-22 carries CE marking under Medical Device Directive 93/42/EEC. Full certification documentation, declaration of conformity, and technical files are available through Medigear.uk for NHS procurement submissions, OJEU tendering, and clinical governance review.

Single Back Lift Mode Only

The BCM1-WS01-22 supports one positional adjustment mode — back lift — with the back section adjustable from 0° to 75°. There is no leg lift, combined lift, or overall lift function. This single-mode scope gives the BCM1-WS01-22 the most focused and operationally simple interface in the Grace Medy manual bed range.

The Grace Medy BCM1-WS01-22 one-function manual hospital bed delivers a CE-certified, infrastructure-independent back elevation platform — adjustable from 0° to 75° — at a fixed 500 mm height within a compact 960 mm frame, suited to general inpatient wards, rehabilitation settings, care homes, and post-discharge home care where back positioning is the primary clinical requirement. Its single back-lift function, compact frame, and straightforward operating interface make it a practical and cost-efficient choice for NHS procurement officers, regional distributors building entry-level one-function manual bed catalogues, and individual home care buyers. Full confirmed specification, crank, guardrail, and castor details are available through Medigear.uk. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

The BCM1-WS01-22 provides only one function — back elevation from 0° to 75° — via a manual crank mechanism, with no knee section or platform height adjustment. The platform is fixed at 500 mm, which means neither height nor knee positioning is available as a crank-operated function on this model. This single-function scope gives the BCM1-WS01-22 the most focused operational profile in the Grace Medy manual bed range, suited to settings where back positioning is the only bed-adjusted clinical variable. Contact Medigear.uk for full specification documentation and to confirm the crank configuration.

Yes. The back section adjusts from 0° to 75°, covering Fowler's position at 30°–45° used in cardiorespiratory care and post-operative management, and high-Fowler's at 60°–75° used for acute respiratory support and assisted feeding. For patients for whom upper-body elevation is the primary clinical positioning requirement and knee or height adjustment is not indicated, the BCM1-WS01-22 provides the full therapeutic back range on a simple manual platform. For buyers who also need knee or height adjustment, Medigear.uk stocks two-function and three-function manual models across the Grace Medy range.

Guardrail type, material, count, and lowering mechanism for the BCM1-WS01-22 should be confirmed with the Medigear.uk procurement team, as these specifications are not confirmed from the available product image. The product photograph shows full-length side rails on both sides of the bed, but the locking mechanism, material specification, and operational features require verification before procurement. Medigear.uk can provide the full guardrail specification as part of the standard procurement documentation pack.

Yes. The BCM1-WS01-22 carries CE marking under Medical Device Directive 93/42/EEC, satisfying the baseline technical certification requirement for NHS procurement frameworks and OJEU tender submissions. Procurement officers can obtain the full declaration of conformity and technical file from Medigear.uk, which is structured to support clinical governance review at the trust level. For care homes and private hospitals subject to regulatory inspection, CE certification covers the compliance requirements applicable to manually adjustable hospital beds.

Both the BCM1-WS01-22 and BCM1-SMJ02-5 are one-function manual hospital beds with back elevation from 0° to 75°, at a fixed platform height of 500 mm within a 960 mm frame. The differences between the two models relate to their standard configurations — including guardrail type, headboard and footboard design, mattress specifications, and optional accessories — which should be confirmed with the Medigear.uk procurement team for both models before a selection is made. Medigear.uk can provide a side-by-side specification comparison to support the procurement decision.

The BCM1-WS01-22 has a fixed platform height of 500 mm, which is a standard clinical working height suitable for most assisted patient transfers and bedside nursing procedures without height adjustment. At 500 mm, the platform is higher than the 420 mm minimum height of height-adjustable models, which may be a consideration for patients at the highest assessed fall risk during transfers. For buyers who require adjustable height, Medigear.uk stocks height-adjustable alternatives across the two-function and three-function manual and electric ranges.

Mattress platform dimensions and compatible depth range for the BCM1-WS01-22 should be confirmed with the Medigear.uk procurement team before ordering. The 960 mm overall frame width is narrower than the standard 1040 mm profile, and mattress width compatibility should be verified against the actual platform width before selecting a mattress. Using a mattress outside the confirmed dimensions may affect guardrail containment effectiveness and is not recommended for clinical deployment.

The BCM1-WS01-22 is designed for operation by trained healthcare staff and does not require specialist technical training beyond standard hospital bed orientation. With only one adjustable function — back elevation — the operational scope is immediately intuitive for agency staff, bank nurses, care home workers, and family carers with standard bed safety orientation. Medigear.uk can arrange product orientation sessions for institutional buyers and supply printed operating guides for ward induction packs on request.

Warranty terms for the BCM1-WS01-22 are confirmed at the point of procurement through Medigear.uk. They may vary depending on order volume, supply route, and whether AMC (Annual Maintenance Contract) support is selected. NHS trusts and institutional buyers should discuss extended warranty and AMC support options with the Medigear.uk account team before submitting a purchase order. Individual buyers and home care purchasers should request applicable consumer warranty terms directly from Medigear.uk at the time of ordering.

The BCM1-WS01-22 is available through Medigear.uk for bulk procurement and regional distribution arrangements. OEM customisation options and available configurations should be discussed with the Medigear.uk commercial team, as lead times, minimum order quantities, and configuration options vary by specification. Distributors building one-function manual bed product tiers for clinical and care home catalogues are encouraged to contact Medigear.uk for a review of commercial terms and a full product specification pack.
