Grace Medy BCE3-ZR02-3

General inpatient wards with space constraints benefit from the Grace Medy BCE3-ZR02-3 three-function electric hospital bed, whose 960 mm frame width allows easier transit through tighter corridors without sacrificing three-motor positioning capability. The four-rail guardrail system supports fall prevention governance, and the four lift modes allow staff to respond to positioning requests from a single handset. Medigear.uk supports NHS and private hospital procurement teams through specification and approval.

High-dependency units place exceptional demands on positioning accuracy, and the BCE3-ZR02-3 meets them through independent motor control of each axis and a child-lock remote controller. Clinical staff can set the back to 75°, hold the knee at a therapeutic angle, and adjust the platform height without disrupting the monitoring leads. The angle-display guardrails confirm current section positions at a glance during fast-paced HDU care. Medigear.uk can supply motor specifications for HDU environment compatibility assessments on request.

Rehabilitation settings benefit from the BCE3-ZR02-3's ability to progress a patient's positional range across a recovery arc through repeatable motor adjustments. The back range of 0° to 75° covers supine rest to near-upright sitting, and the knee range of 0° to 45° supports lower-limb elevation and gait preparation at each physiotherapy stage. The compact frame width allows placement in smaller rehabilitation rooms where a standard-width bed would limit therapist access. Medigear.uk can provide specification packs for rehabilitation procurement teams.

Home care settings benefit most from the BCE3-ZR02-3's narrower frame, which fits more readily through domestic doorways and within typical bedroom layouts. A trained carer can operate all three motor functions through the hand-held remote without clinical supervision, and the child-lock prevents unintended repositioning. Medigear.uk offers individual buyer consultation and delivery coordination for families arranging home hospital provision ahead of discharge.

Compact 960 mm Frame Width for Space-Constrained Environments

The BCE3-ZR02-3 has an overall frame width of 960 mm, making it narrower than the standard 1040 mm profile found on most hospital bed platforms, and better suited to tighter clinical bays, rehabilitation rooms, and domestic environments where clearance around the bed is limited. The reduced width allows the bed to pass through standard domestic doorways and many ward doorway configurations without the access difficulties associated with full-width frames. For NHS procurement officers sourcing beds for refurbished or legacy ward bays with constrained dimensions, the BCE3-ZR02-3 offers the full three-motor clinical capability in a smaller physical footprint. Medigear.uk can provide dimensioned drawings to assist with bay fit planning.

Three-Motor Independence for Protocol-Level Positioning Precision

The BCE3-ZR02-3 operates back elevation, knee flexion, and platform height through three separate motor-driven systems, meaning each axis can be adjusted independently without disturbing the other two positional parameters. Motor independence is clinically significant in HDU and post-surgical settings, where position configurations must be maintained accurately and adjusted without compound-axis movement. For rehabilitation teams documenting positioning protocols, the independent motor architecture supports reproducible setups across shifts. Full motor specification documentation is available from Medigear.uk.

Four Lift Modes for Complete Positional Flexibility

The BCE3-ZR02-3 supports four motorised lift configurations — back lift, leg lift, back-and-leg lift, and overall lift — all accessible via the hand-held remote controller. The back-and-leg lift-together mode enables coordinated compound positioning without requiring staff to manage multiple simultaneous inputs, which is particularly valuable during complex post-surgical and rehabilitation protocols. For NHS procurement officers comparing electric bed specifications, the four-lift mode architecture represents a clinically meaningful capability beyond basic two-function platforms. Medigear.uk can provide technical comparisons between models on request.

Hospital-Grade Fall Prevention Through Angle-Display Four-Rail System

The four individual guardrails on the BCE3-ZR02-3 incorporate angle-display indicators that show the current section angle, eliminating the need for staff to consult the remote controller and supporting accurate, real-time documentation of patient positioning. Each rail lowers independently for controlled patient access and locks securely in the raised position, providing full bilateral perimeter containment for patients at elevated fall risk. For NHS procurement officers managing fall prevention governance commitments, the angle-display guardrail system provides an auditable positioning reference at every bed position change. Full guardrail specifications are available through Medigear.uk.

CE and IEC 60601 Certification for NHS and Regulatory Compliance

The BCE3-ZR02-3 carries CE marking under Medical Device Directive 93/42/EEC and meets IEC 60601 electrical safety standards, satisfying the baseline requirements for NHS supply frameworks, CQC-regulated care settings, and OJEU tendering. Medigear.uk holds the complete declaration of conformity and technical file, available to procurement officers and clinical governance reviewers on request. For distributors building verified-supplier-accredited catalogues, the dual certification suite supports straightforward compliance with product listing requirements across NHS and private-sector supply channels.

Child-Lock Remote Controller for Safe Mixed-Acuity and Home Use

The hand-held remote controller supplied with the BCE3-ZR02-3 incorporates a child-lock that turns off all motorised inputs until a staff member reactivates the handset, preventing unintended repositioning in paediatric wards, mixed-acuity bays, and home care environments. The controller provides labelled access to all three motor functions and all four lift modes in a single unit, reducing the time required for positional adjustment during time-sensitive clinical events. For home care purchasers, the child-lock provides an essential safety layer when the controller is accessible to non-clinical household members. Full specifications are available from Medigear.uk.

Single-Sided Casters for Improved Under-Bed Access

The BCE3-ZR02-3 is fitted with four five-inch single-sided castors, which present a lower profile on the non-drive side and improve access under the bed frame for floor cleaning and infection-control inspections. The central brake control system allows a single staff member to immobilise all four castors simultaneously in one action, reducing the time and effort required to secure the bed after movement in busy ward environments. For infection control teams, the single-sided castor profile reduces the floor-contact surface area requiring cleaning attention. Castor load rating and brake specifications are available from Medigear.uk.

Ergonomic Staff Safety Through 260 mm Motorised Height Range

The 260 mm motorised height range of the BCE3-ZR02-3 — from 420 mm to 680 mm — allows nursing and care staff to set the bed at an appropriate working height for clinical tasks and lower it to transfer height without manual effort. Motorised height adjustment is consistently cited in safe-patient-handling literature as a primary engineering control measure for reducing cumulative musculoskeletal load. For procurement teams making the clinical governance case for electrically adjustable beds, Medigear.uk can provide evidence and documentation to support safe-handling risk assessments.

Distributor and OEM Flexibility for Regional Supply Chains

The BCE3-ZR02-3 is available through Medigear.uk for bulk distributor and OEM supply arrangements, with optional configurations including IV stand holes, drainage bag hooks, and IV stand provision. Distributors building regional hospital and care home supply catalogues can structure volume agreements through Medigear.uk and offer a fully configured compact electric bed package for buyers where frame width is a primary procurement consideration. The optional accessory suite allows distributors to tailor the base model to acute ward, rehabilitation, HDU, and home care buyer segments.

Minimum Platform Height: 420 mm

The BCE3-ZR02-3 reaches a minimum platform height of 420 mm, supporting natural foot-to-floor contact during assisted patient transfers and meeting clinical safe-handling recommendations for patients at elevated fall risk. This low starting height is particularly relevant for elderly patients and those with limited lower-limb strength during early mobilisation following surgery or acute illness.

Maximum Platform Height: 680 mm

The maximum platform height of 680 mm raises the mattress surface to a comfortable working level for nursing and care staff, minimising forward flexion during wound care, catheter management, and other bedside procedures. Operating at working height rather than transfer height throughout a clinical task reduces cumulative lumbar loading across a shift and supports musculoskeletal health in ward staff.

Total Height Adjustment Range: 260 mm

The total motorised height adjustment range of 260 mm — from 420 mm to 680 mm — spans the full clinical spectrum from safe transfer height to optimal nursing working height, all with fully electric control. This range is independent of the back and knee section positions, allowing height changes at any backrest or knee angle without resetting the other axes.

Overall Frame Width: 960 mm

The overall frame width of 960 mm is narrower than the standard 1040 mm hospital bed profile, making the BCE3-ZR02-3 better suited to space-constrained ward bays, rehabilitation rooms, and domestic environments. Procurement teams undertaking bay fit assessments should verify local corridor and bay widths against the 960 mm frame width before placing orders. Medigear.uk can provide dimensioned drawings for facility planning on request.

Backrest Adjustment: 0° to 75°

The back section adjusts from a fully flat 0° to a maximum of 75° through a dedicated motor, covering supine positioning through high-Fowler's for respiratory management, assisted feeding, and post-surgical recovery. The angle-display guardrails confirm the current backrest angle at a glance, supporting protocol adherence without requiring visual estimation.

Knee Section Adjustment: 0° to 45°

The knee section adjusts from 0° to 45° through an independent motor, enabling lower-limb elevation, flexion support during lower-body assessment, and comfort positioning for patients on extended bed rest. Independent knee adjustment without simultaneous backrest movement supports orthopaedic recovery, pressure area management, and lower-limb oedema protocols.

Four Lift Modes: Back, Leg, Back and Leg Together, Overall

The BCE3-ZR02-3 supports four motorised lift configurations accessible from the hand-held remote: back lift only, leg lift only, back and leg lift together, and overall platform lift. The back-and-leg lift-together mode enables coordinated compound positioning with a single control action, which is particularly useful in post-surgical and rehabilitation settings where simultaneous axis adjustment is clinically indicated.

Three-Motor System: Independent Axis Control

One set of three motors drives back, knee, and height axes independently, allowing each positional parameter to be modified without affecting the others. This motor independence supports precise compound positioning and enables reproducible protocol setups across clinical shifts and between different staff members.

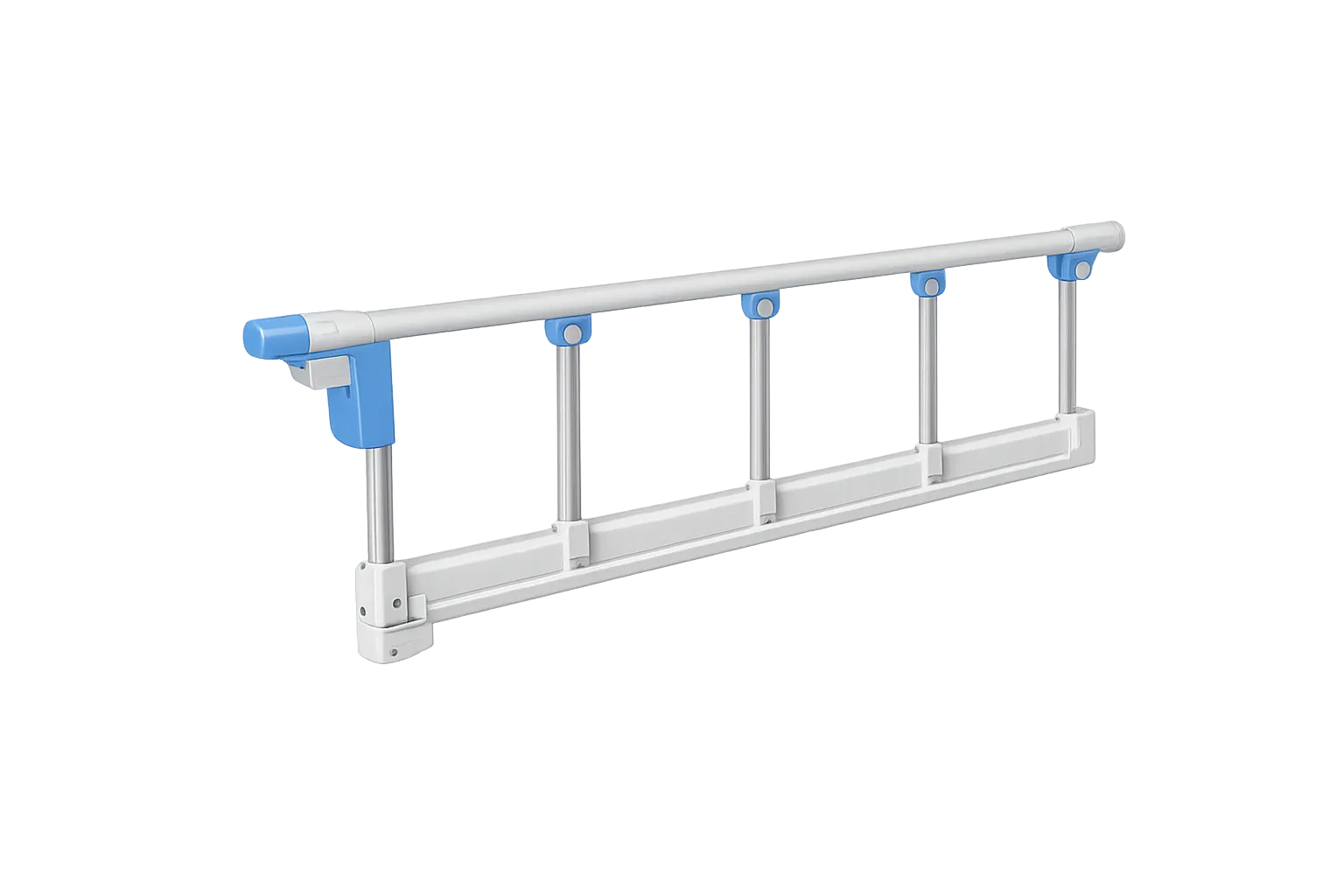

Four Angle-Display Guardrails

Four small-profile side rails are supplied as standard, each incorporating an angle-display indicator that shows the current section angle. The rails lower individually for single-side patient access and lock securely in place. The angle-display function supports accurate clinical documentation and protocol adherence without requiring staff to estimate section angles visually.

Hand-Held Remote Controller With Child-Lock

The remote controller provides dedicated inputs for each of the three motor functions and four lift modes, and incorporates a child-lock mechanism that turns off all motor inputs when engaged. The lock prevents unintended repositioning in paediatric wards, mixed-acuity environments, and home care settings. Full operating instructions are available from Medigear.uk.

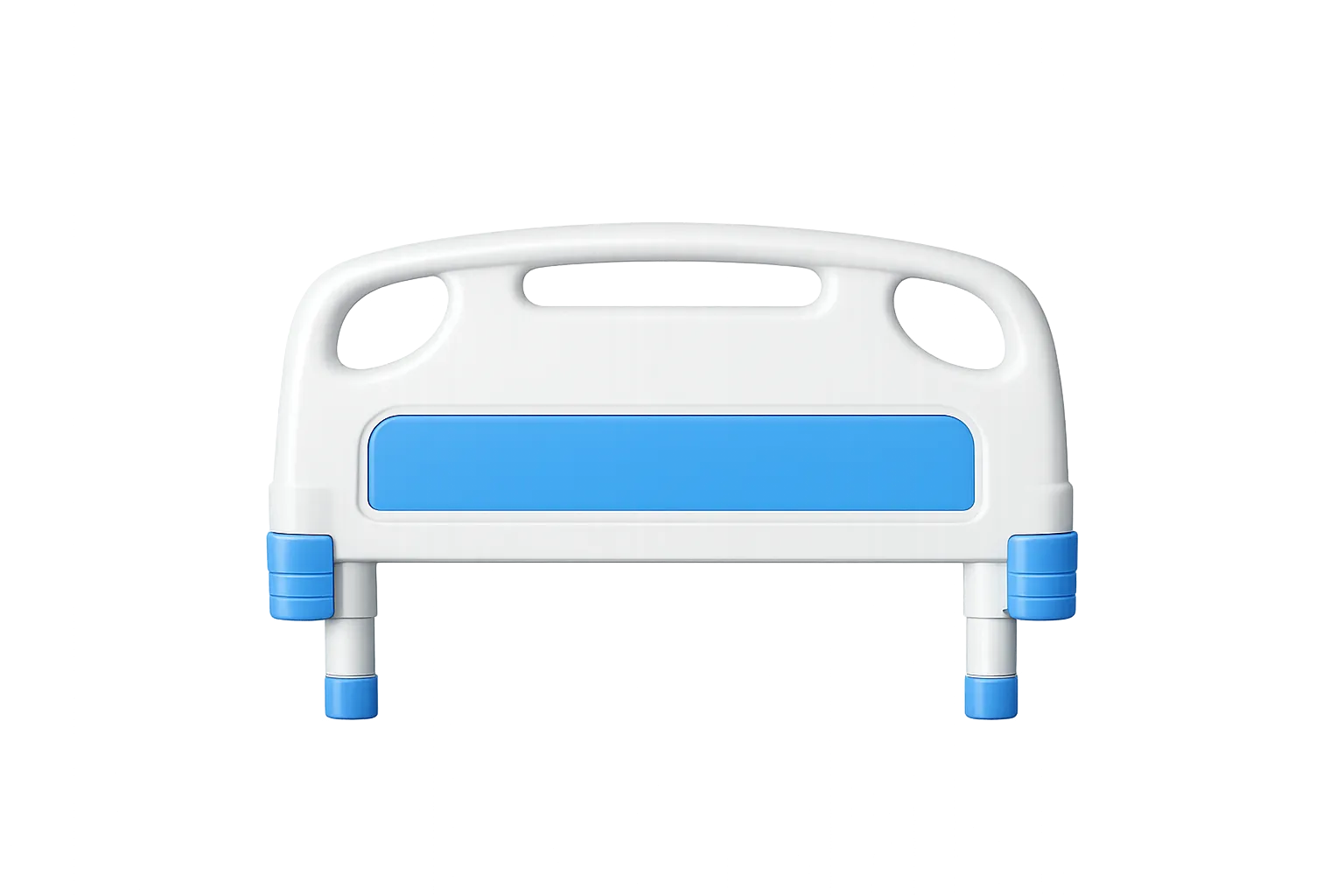

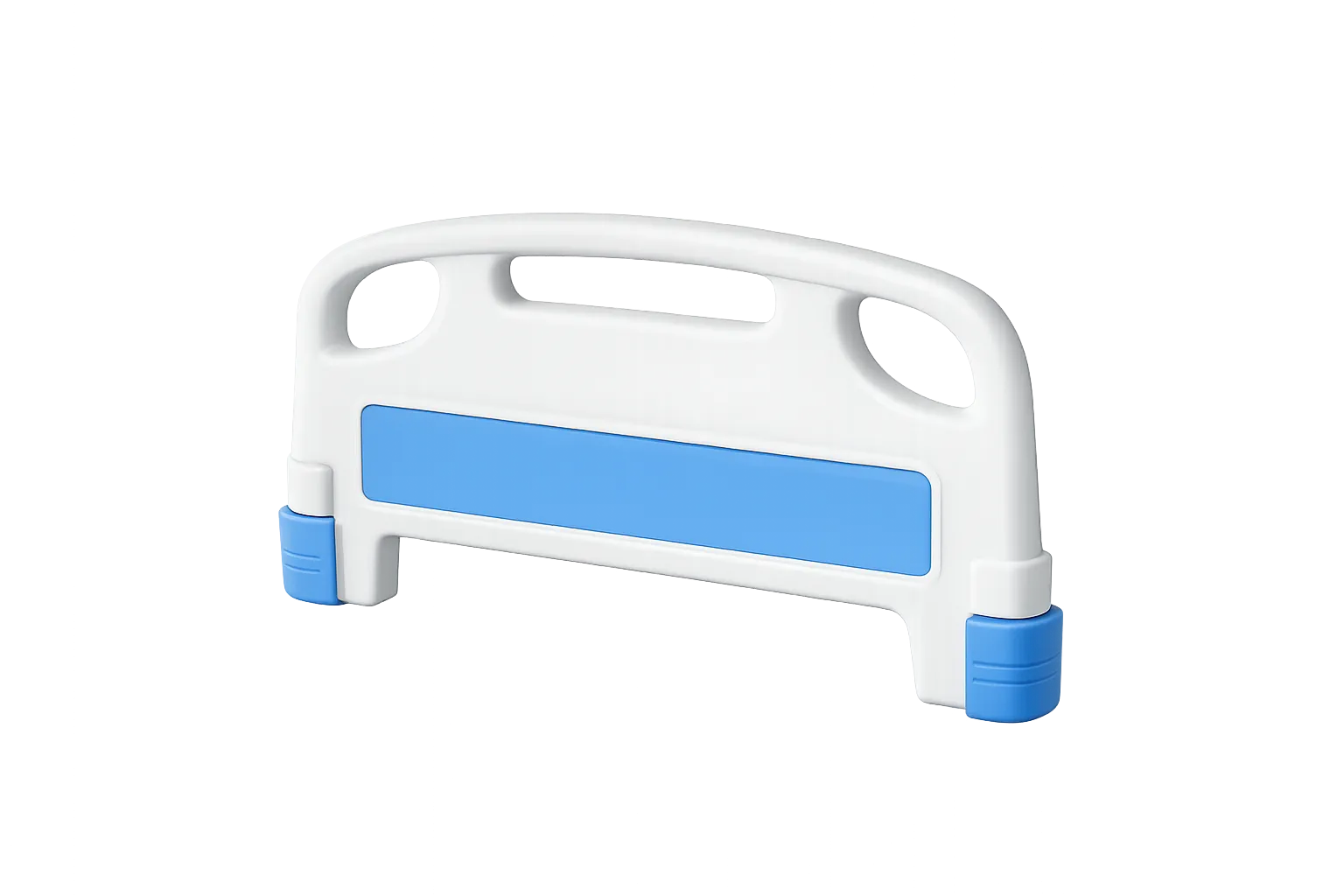

Head and Foot Boards: Matched Set Supplied

Head and foot boards are supplied as a matched set, defining the bed's overall profile and contributing to patient containment and ward aesthetics. Confirm material specification and colour options with the Medigear.uk procurement team before placing a bulk or OEM order.

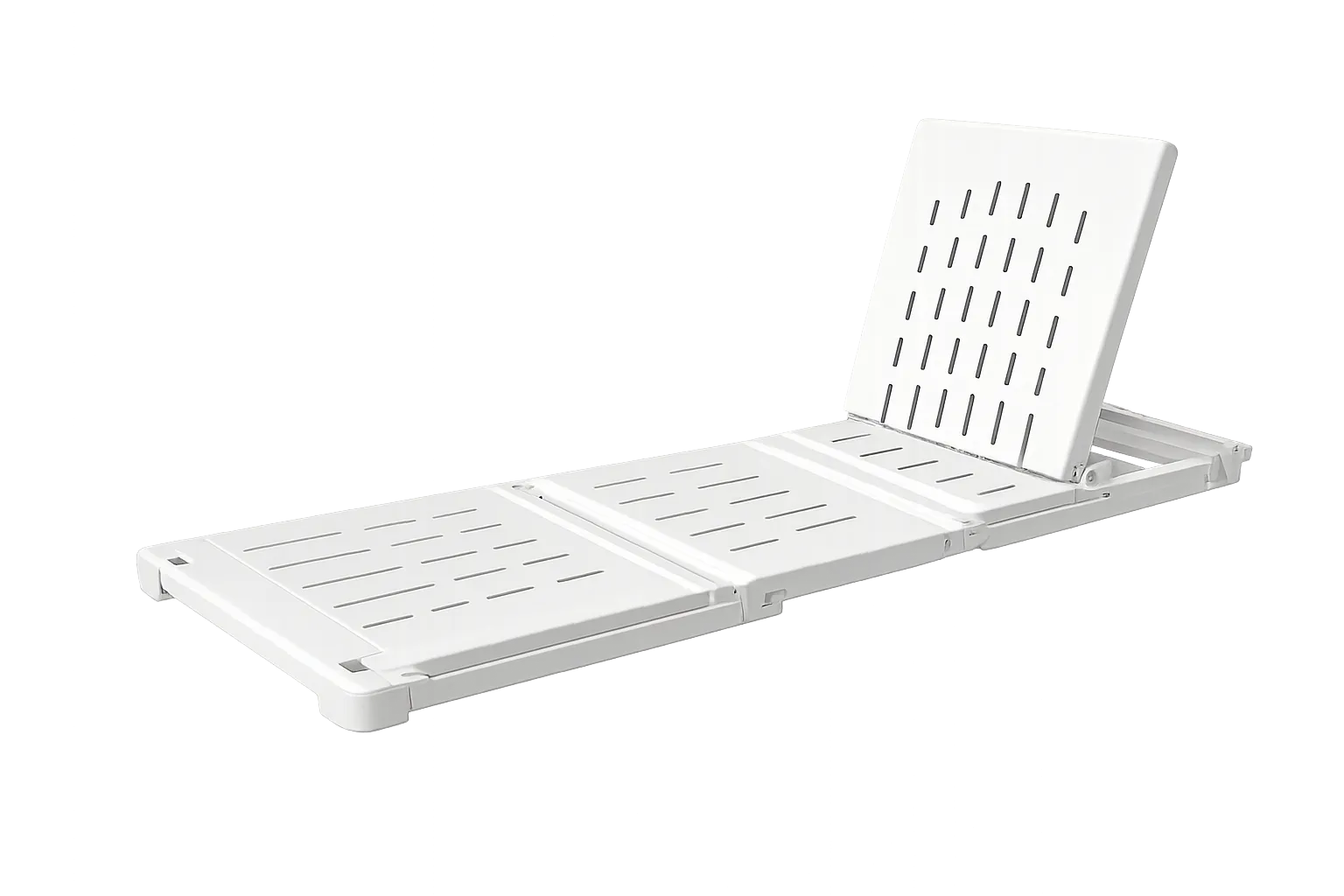

Mattress Platform: 1950 × 900 mm

The usable mattress surface measures 1950 mm in length and 900 mm in width. The 1950 mm length is shorter than the standard 2020 mm hospital bed platform and should be confirmed against the intended mattress dimensions before ordering. Confirm full mattress compatibility with the Medigear.uk procurement team.

Mattress Depth Compatibility

The compatible mattress depth range should be confirmed with the Medigear.uk procurement team, as depth compatibility is governed by guardrail height and head and footboard clearance dimensions specific to the BCE3-ZR02-3 configuration. Using a mattress outside the confirmed depth range may affect the effectiveness of guardrail containment and is not recommended for clinical deployment.

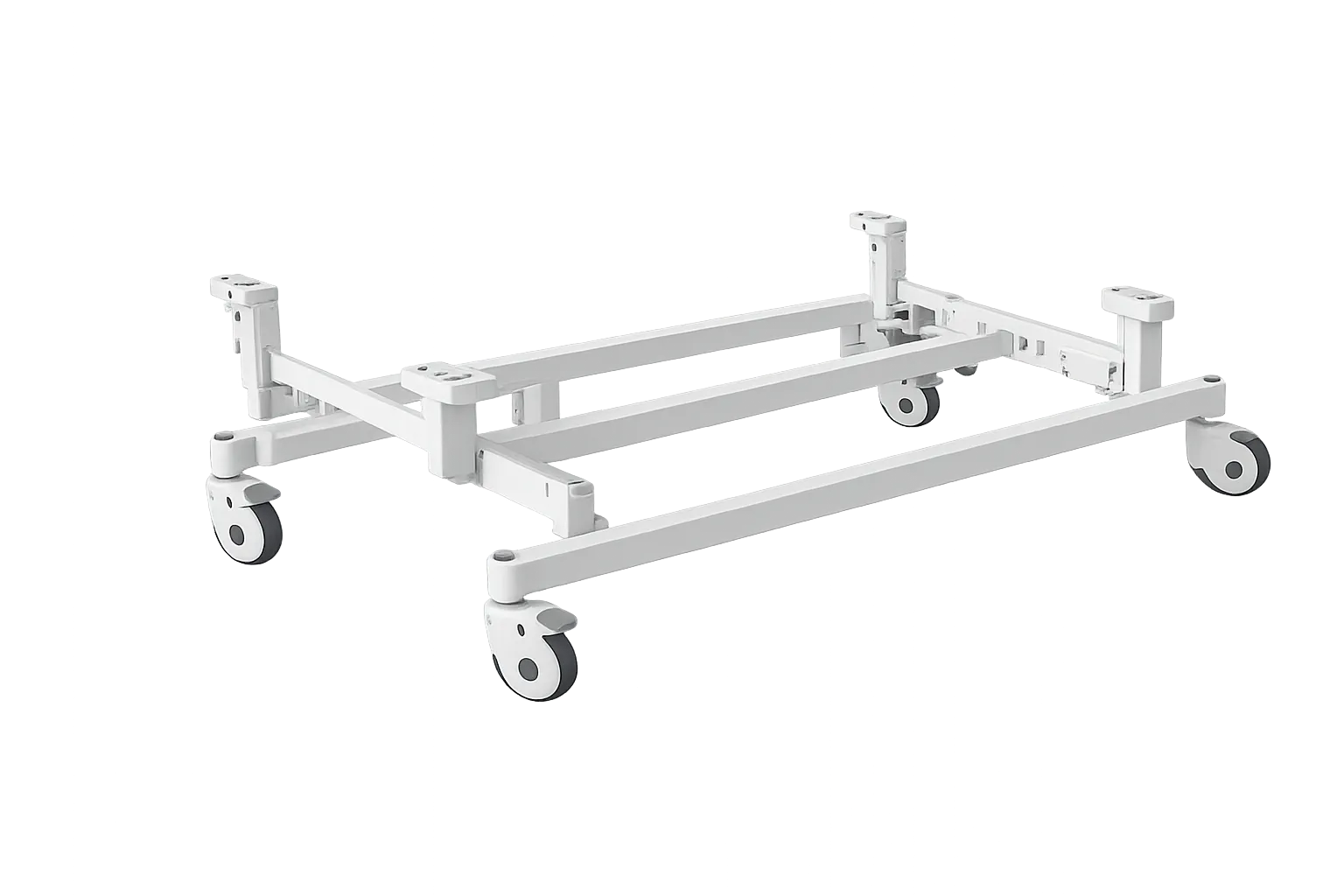

Frame Material: High-Grade Powder-Coated Steel

The load-bearing frame is constructed from high-grade steel with a powder-coated surface finish that is resistant to repeated cleaning with standard hospital-grade disinfectant agents. Chemical compatibility information is available from Medigear.uk for infection control assessments.

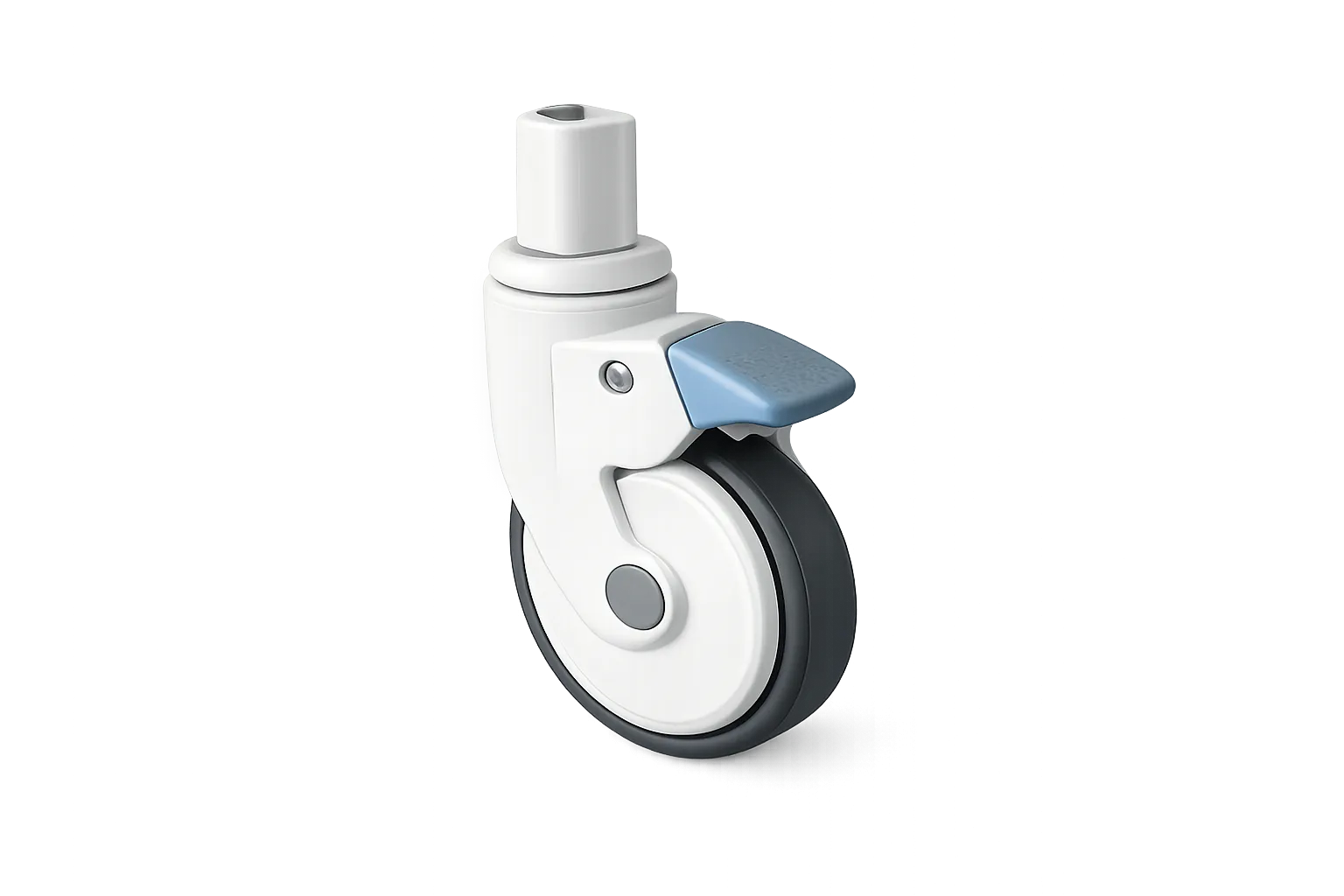

Castor Specification: Five-Inch Single-Sided With Central Brake

Four five-inch single-sided castors are fitted as standard. The single-sided profile reduces the floor-contact footprint compared with twin-wheel alternatives and improves under-bed access for cleaning. The central brake control system allows simultaneous locking of all four castors in a single action.

Optional Accessories: IV Stand Holes, Drainage Bag Hooks, IV Stand

The BCE3-ZR02-3 supports optional configuration with four or two diagonal IV stand holes, two drainage bag hooks, and an IV stand. These accessories are specified at the point of order through Medigear.uk. Procurement teams and distributors should confirm required optional configurations during the specification phase.

The Grace Medy BCE3-ZR02-3 three-function electric hospital bed delivers a compact, CE- and IEC 60601-certified positioning platform for general inpatient wards, high-dependency units, rehabilitation settings, and post-discharge home care, with a 960 mm frame width that makes it particularly suited to space-constrained clinical and domestic environments. Its three-motor independent drive system, four lift modes, four angle-display guardrails, child-lock remote controller, and single-sided castor configuration make it a precise and operationally practical choice for NHS procurement officers, regional distributors building clinical supply portfolios, and individual home care buyers where frame width is a primary consideration. Full specification documentation, certification files, and logistics support are available through Medigear.uk at every stage of procurement. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
