Grace Medy BCE3-ZR02-1

General inpatient wards require a bed that combines precise electric positioning with fall prevention, and the Grace Medy BCE3-ZR02-1 three-function electric hospital bed provides both through its three-motor drive and four-rail guardrail system. The four lift modes allow nursing staff to respond to positioning requests from a single handset. Height adjustment from 420 mm to 680 mm supports safe transfers and reduces musculoskeletal strain across a shift. Medigear.uk supports NHS and private hospital procurement teams through specification and approval.

High-dependency units place exceptional demands on positioning accuracy, and the BCE3-ZR02-1 meets them through independent motor control of each axis and a child-lock remote controller. Clinical staff can adjust the back to 75°, hold the knee at a therapeutic angle, and modify platform height without disrupting monitoring leads or intravenous lines. The angle-display guardrails confirm current section positions at a glance during fast-paced HDU care. Medigear.uk can supply motor specifications for HDU environment compatibility assessments.

Rehabilitation settings benefit from the BCE3-ZR02-1's ability to progress a patient's positional range across a recovery arc through repeatable motor-driven adjustments. The back range of 0° to 75° covers the full progression from supine rest to near-upright sitting, and the knee range of 0° to 45° supports lower-limb elevation and gait preparation at each physiotherapy stage. Medigear.uk can provide specification packs for rehabilitation unit procurement teams.

Home care and post-discharge settings benefit from a three-function electric hospital bed that a trained family carer can operate safely without clinical supervision. The child-lock function prevents unintended repositioning, and the 200 mm height-adjustment range supports safe transfers for carers assisting patients with varying mobility. Medigear.uk offers individual buyer consultation and delivery coordination for families arranging home hospital provision ahead of discharge.

Four Lift Modes for Complete Positional Flexibility

The BCE3-ZR02-1 supports four distinct motorised lift modes — back lift, leg lift, back-and-leg lift, and overall lift — providing clinical staff with a wider range of positioning options than standard two-function or basic three-function electric beds. The back-and-leg lift-together mode enables coordinated compound positioning without requiring staff to manage multiple simultaneous inputs, which is particularly valuable during complex post-surgical and rehabilitation protocols. For NHS procurement officers comparing electric bed specifications, the four-lift mode architecture is a clinically meaningful differentiator. Medigear.uk can provide technical comparisons on request.

Three-Motor Independence for Protocol-Level Precision

The BCE3-ZR02-1 operates back elevation, knee flexion, and platform height through three separate motor-driven systems, meaning each axis can be adjusted independently without disturbing the other two postural parameters. This level of motor independence is clinically significant in HDU and post-surgical settings, where position configurations must be maintained accurately and altered precisely without any compound-axis movement. For rehabilitation teams documenting positioning protocols, the independent motor architecture supports reproducible setups across shifts and among staff members. Full motor specification documentation is available from Medigear.uk.

Hospital-Grade Fall Prevention Through Angle-Display Four-Rail System

The four individual guardrails fitted to the BCE3-ZR02-1 incorporate angle-display indicators that show the current section angle, eliminating the need for staff to consult the remote controller and supporting accurate real-time documentation of patient positioning throughout a shift. Each rail lowers independently for controlled patient access and locks securely in the raised position, providing full bilateral perimeter containment for patients at elevated fall risk. For NHS procurement officers managing fall prevention governance commitments, the angle-display guardrail system provides an auditable positioning reference point. Medigear.uk provides full documentation of the guardrail specification.

CE and IEC 60601 Certification for Compliant NHS Procurement

The BCE3-ZR02-1 carries CE marking under Medical Device Directive 93/42/EEC and meets IEC 60601 electrical safety standards, satisfying the baseline requirements for NHS supply frameworks, CQC-regulated care settings, and OJEU tendering. Medigear.uk holds the complete declaration of conformity and technical file, available to procurement officers and clinical governance reviewers on request. For distributors building verified-supplier-accredited catalogues, the dual certification suite supports straightforward compliance with product listing requirements across NHS and private-sector supply channels.

Single-Sided Casters for Improved Under-Bed Access

The BCE3-ZR02-1 is fitted with four five-inch single-sided castors, which provide a lower profile on the non-drive side and improve access under the bed frame for floor cleaning, infection control inspections, and manual handling assessments. The central brake control system allows a single staff member to immobilise all four castors in one action, reducing the time and effort required to secure the bed after movement in busy ward environments. For infection control teams, the single-sided castor profile reduces the surface area of floor-contact components requiring cleaning attention. Medigear.uk can confirm castor load rating and brake specifications on request.

Child-Lock Remote Controller for Safe Mixed-Achandheld

The handheld remote controller supplied with the BCE3-ZR02-1 incorporates a dedicated child-lock that turns off all motorised inputs until a staff member reactivates the handset, preventing unintended bed repositioning in paediatric wards, mixed-acuity environments, and home care settings. The controller provides clear, labelled access to all three motor functions and all four lift modes on a handheld unit, reducing the time required for positional adjustment during time-sensitive clinical events. For home care purchasers, the child-lock provides an essential safety layer when the controller is accessible to non-clinical household members. Full controller specifications are available from Medigear.uk.

Standard Platform Dimensions for Existing Mattress Compatibility

The 2020 mm × 900 mm platform dimensions match the standard profile of hospital mattresses in common clinical use, allowing NHS trusts, care homes, and home care purchasers to use existing approved mattress stock without additional specification or procurement work. For trusts undertaking bed fleet replacement, compatibility with current mattress supply contracts reduces total procurement cost and simplifies asset integration across wards. Medigear.uk procurement advisors can confirm mattress compatibility for specific existing stock on request, supporting straightforward fleet integration planning.

Distributor and OEM Flexibility for Regional Supply Chains

The BCE3-ZR02-1 is available through Medigear.uk for bulk distributor and OEM supply arrangements, with optional configurations including IV stand holes, drainage bag hooks, and IV stand provision for acute and HDU environments. Distributors building regional hospital and care home supply catalogues can structure volume agreements through Medigear.uk and offer a fully configured electric bed package without separately sourcing accessories. The optional accessory suite allows distributors to tailor the base model to different buyer segments — acute ward, rehabilitation, HDU, and home care — from a single platform specification.

Ergonomic Staff Safety Through Motorised Height Adjustment

The 200 mm motorised height range of the BCE3-ZR02-1 — from 420 mm to 680 mm — allows nursing and care staff to position the bed at an appropriate working height for clinical tasks and lower it to transfer height without manual lifting or repositioning. Manual handling injuries represent a significant occupational health cost across inpatient settings, and motorised height adjustment is consistently cited in safe-patient-handling literature as a primary engineering control measure. For procurement teams making the clinical governance case for electrically adjustable beds, Medigear.uk can provide evidence and documentation to support safe-handling risk assessments.

Minimum Platform Height: 420 mm

The BCE3-ZR02-1 reaches a minimum platform height of 420 mm, supporting natural foot-to-floor contact during assisted patient transfers and meeting clinical safe-handling recommendations for patients at elevated fall risk. This low starting height is particularly relevant for elderly patients and those with limited lower-limb strength during early mobilisation following surgery or acute illness.

Maximum Platform Height: 680 mm

The maximum platform height of 680 mm raises the mattress surface to a comfortable working level for nursing and care staff, minimising forward flexion during wound care, catheter management, and other bedside clinical procedures. Operating at working height rather than transfer height throughout a clinical task reduces cumulative lumbar loading across a shift and supports musculoskeletal health in ward staff.

Total Height Adjustment Range: 200 mm

The total motorised height adjustment range of 200 mm — from 420 mm to 680 mm — spans the clinical spectrum from safe transfer height to optimal nursing working height, with fully electric control. This range is independent of the back and knee section positions, allowing height changes at any backrest or knee angle without resetting the other axes.

Backrest Adjustment: 0° to 75°

The back section adjusts from a fully flat 0° to a maximum of 75° through a dedicated motor, covering the clinical range from supine positioning through Fowler's and high-Fowler's positions used in respiratory management, assisted feeding, and post-surgical recovery. The angle-display guardrails confirm the current backrest angle at a glance, supporting protocol adherence without requiring visual estimation.

Knee Section Adjustment: 0° to 45°

The knee section adjusts from 0° to 45° through an independent motor, enabling lower-limb elevation, flexion support during lower-body assessment, and comfort positioning for patients on extended bed rest. Independent knee flexion without simultaneous backrest movement is clinically important for orthopaedic recovery, pressure area management, and lower-limb oedema protocols.

Four Lift Modes: Back, Leg, Back and Leg Together, Overall

The BCE3-ZR02-1 supports four motorised lift configurations accessible from the hand-held remote: back lift only, leg lift only, back and leg lift together, and overall platform lift. The back-and-leg lift-together mode enables coordinated compound positioning with a single control action, which is particularly useful in post-surgical and rehabilitation settings where simultaneous axis adjustment is clinically indicated.

Three-Motor System: Independent Axis Control

One set of three motors drives the back, knee, and height axes independently, allowing each position parameter to be modified without affecting the others. This motor independence supports precise compound positioning and enables reproducible protocol setups across clinical shifts and between different staff members.

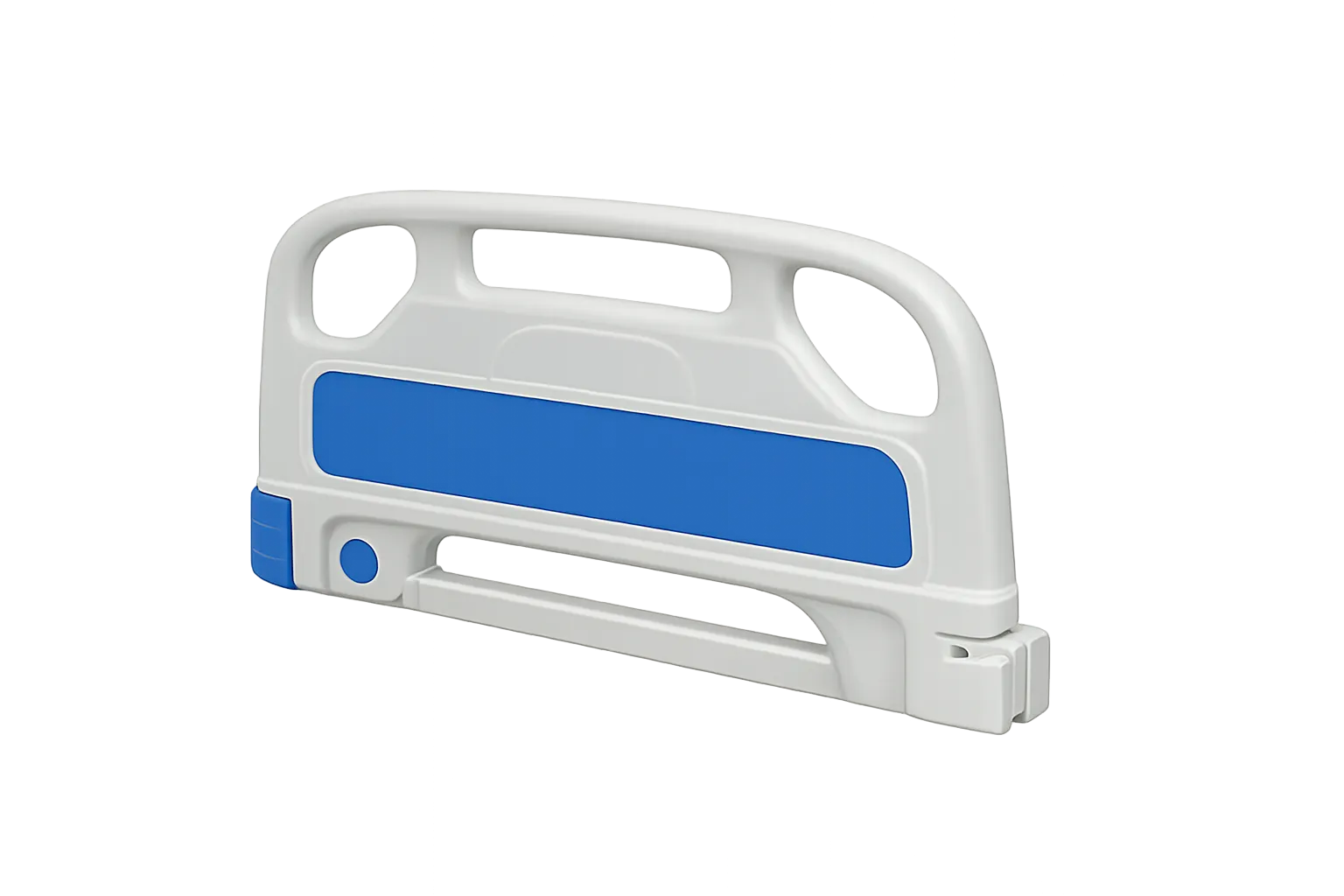

Four Angle-Display Guardrails

Four individual small-profile side rails are supplied as standard, each incorporating an angle-display indicator that shows the current section angle of the adjacent bed frame. The rails lower individually for single-side patient access and lock securely in place. The angle-display function supports accurate clinical documentation and protocol adherence without requiring staff to estimate section angles visually.

Hand-Held Remote Controller With Child-Lock

The remote controller provides dedicated inputs for each of the three motor functions and four lift modes, and incorporates a child-lock mechanism that turns off all motor inputs when engaged. The lock prevents accidental or unsupervised repositioning in paediatric wards, mixed-acuity environments, and home care settings, and reactivates through a staff-operated sequence. Full operating instructions are available from Medigear.uk.

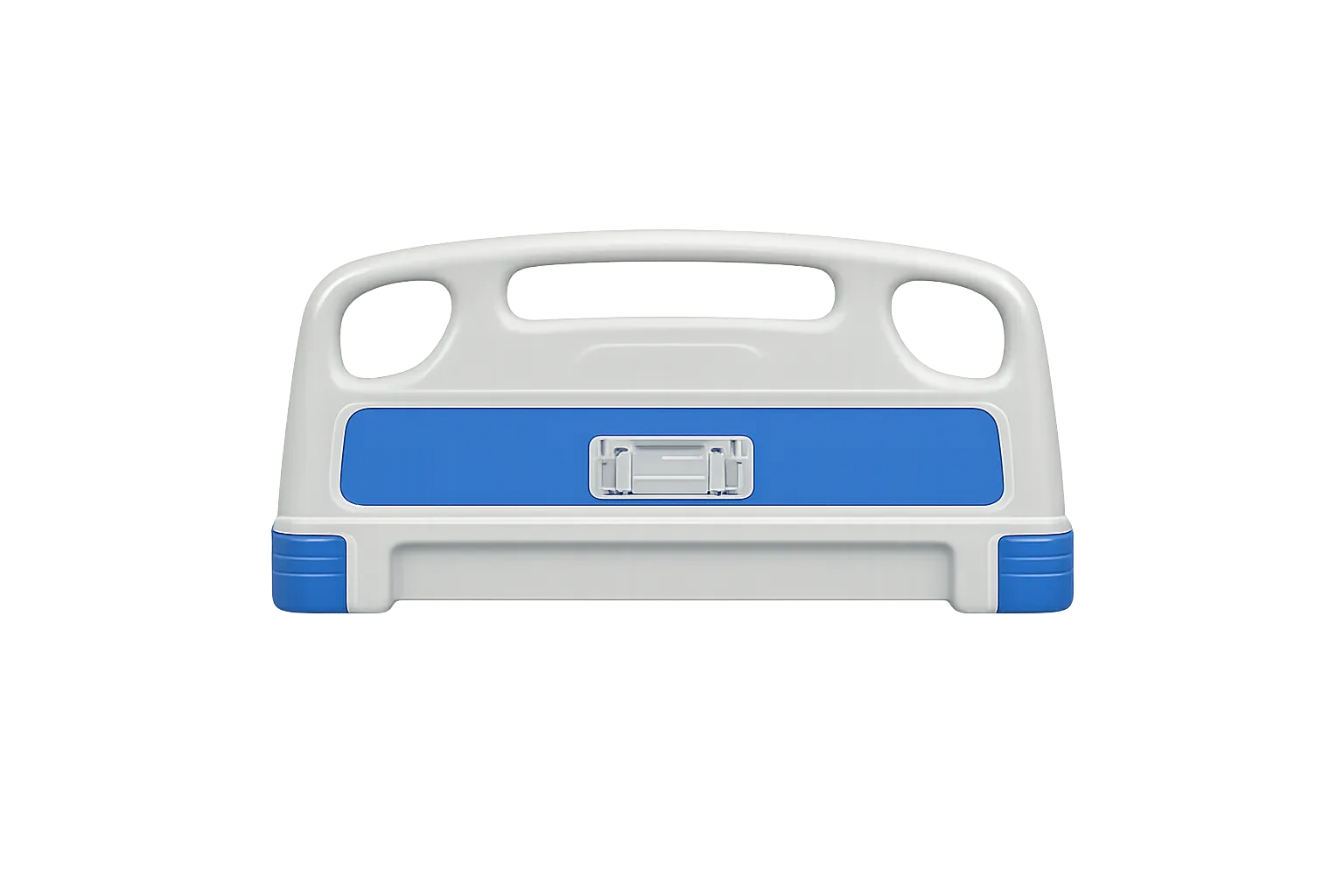

Head and Foot Boards: Matched Set Supplied

Head and foot boards are supplied as a matched set with the BCE3-ZR02-1, defining the bed's overall profile and contributing to patient containment and ward aesthetics. Confirm material specification and colour options with the Medigear.uk procurement team before placing a bulk or OEM order.

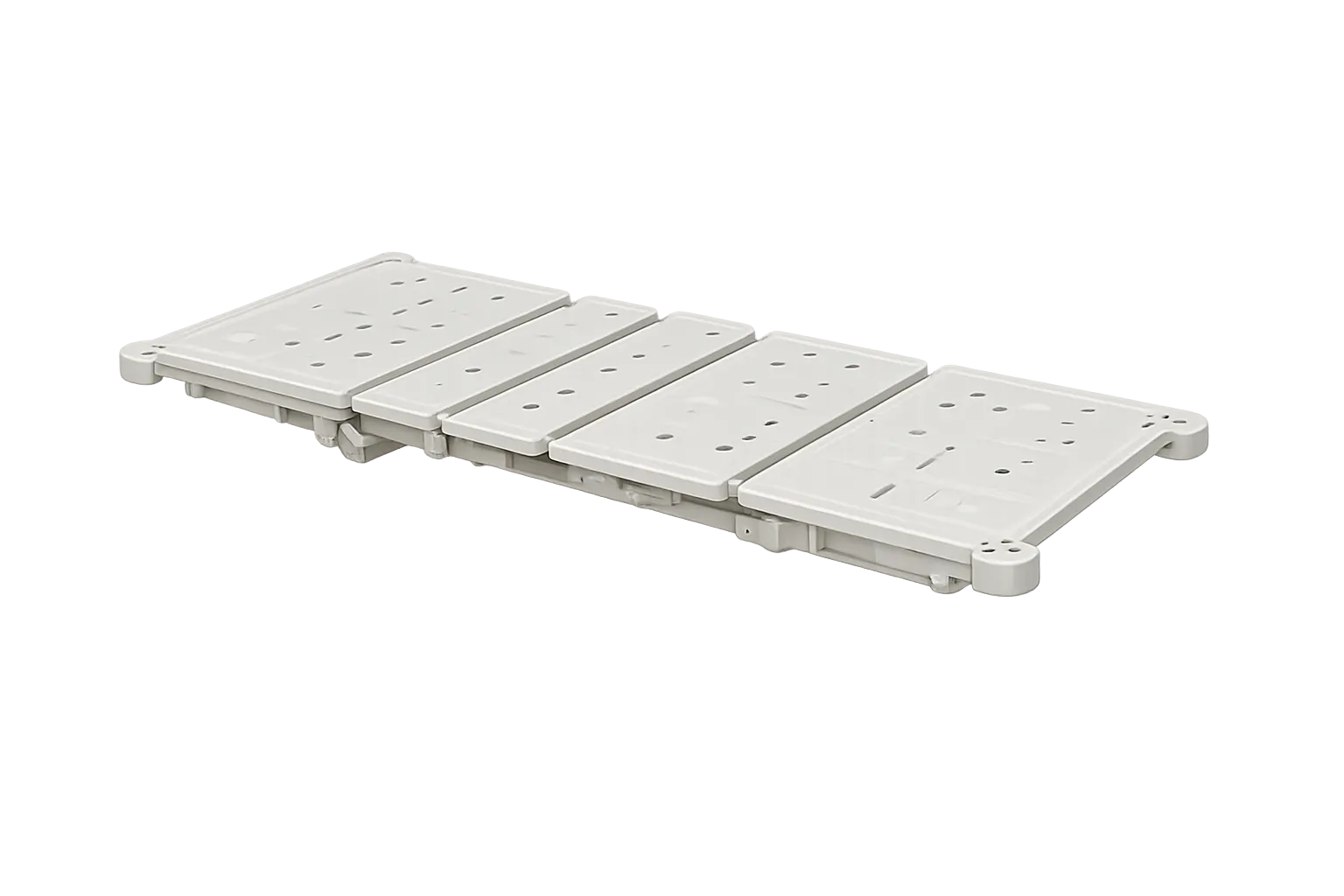

Mattress Platform: 2020 × 900 mm

The usable mattress surface measures 2020 mm in length and 900 mm in width, matching the standard dimensions of hospital mattresses in common clinical use. This platform size supports full-length adult patients and allows existing approved ward mattresses to be retained during bed fleet replacement.

Mattress Depth Compatibility

The compatible mattress depth range should be confirmed with the Medigear.uk procurement team, as depth compatibility is governed by guardrail height and head and footboard clearance dimensions specific to the BCE3-ZR02-1 configuration. Using a mattress outside the confirmed depth range may affect the effectiveness of guardrail containment.

Frame Material: High-Grade Powder-Coated Steel

The load-bearing frame is constructed from high-grade steel with a powder-coated surface finish that resists repeated cleaning with standard hospital-grade disinfectants and maintains structural integrity under the mechanical demands of daily ward use. Chemical compatibility information is available from Medigear.uk for infection control assessments.

Castor Specification: Five-Inch Single-Sided With Central Brake

Four five-inch single-sided castors are fitted as standard. The single-sided profile reduces the floor-contact footprint compared with twin-wheel alternatives and improves under-bed access for cleaning. The central brake control system allows simultaneous locking of all four castors in a single action.

Optional Accessories: IV Stand Holes, Drainage Bag Hooks, IV Stand

The BCE3-ZR02-1 supports optional configuration with four or two diagonal IV stand holes, two drainage bag hooks, and an IV stand. These accessories are specified at the point of order through Medigear.uk. Procurement teams and distributors should confirm required optional configurations with Medigear.uk during the specification phase.

The Grace Medy BCE3-ZR02-1 three-function electric hospital bed delivers a clinically comprehensive and CE and IEC 60601 certified positioning platform for general inpatient wards, high-dependency units, rehabilitation settings, and post-discharge home care. Its three-motor independent drive system, four lift modes, four angle-display guardrails, child-lock remote controller, and single-sided castor configuration make it a precise and operationally efficient choice for NHS procurement officers, regional distributors building clinical supply portfolios, and individual buyers arranging home hospital provision. Full specification documentation, certification files, and logistics support are available through Medigear.uk at every stage of the procurement process. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
