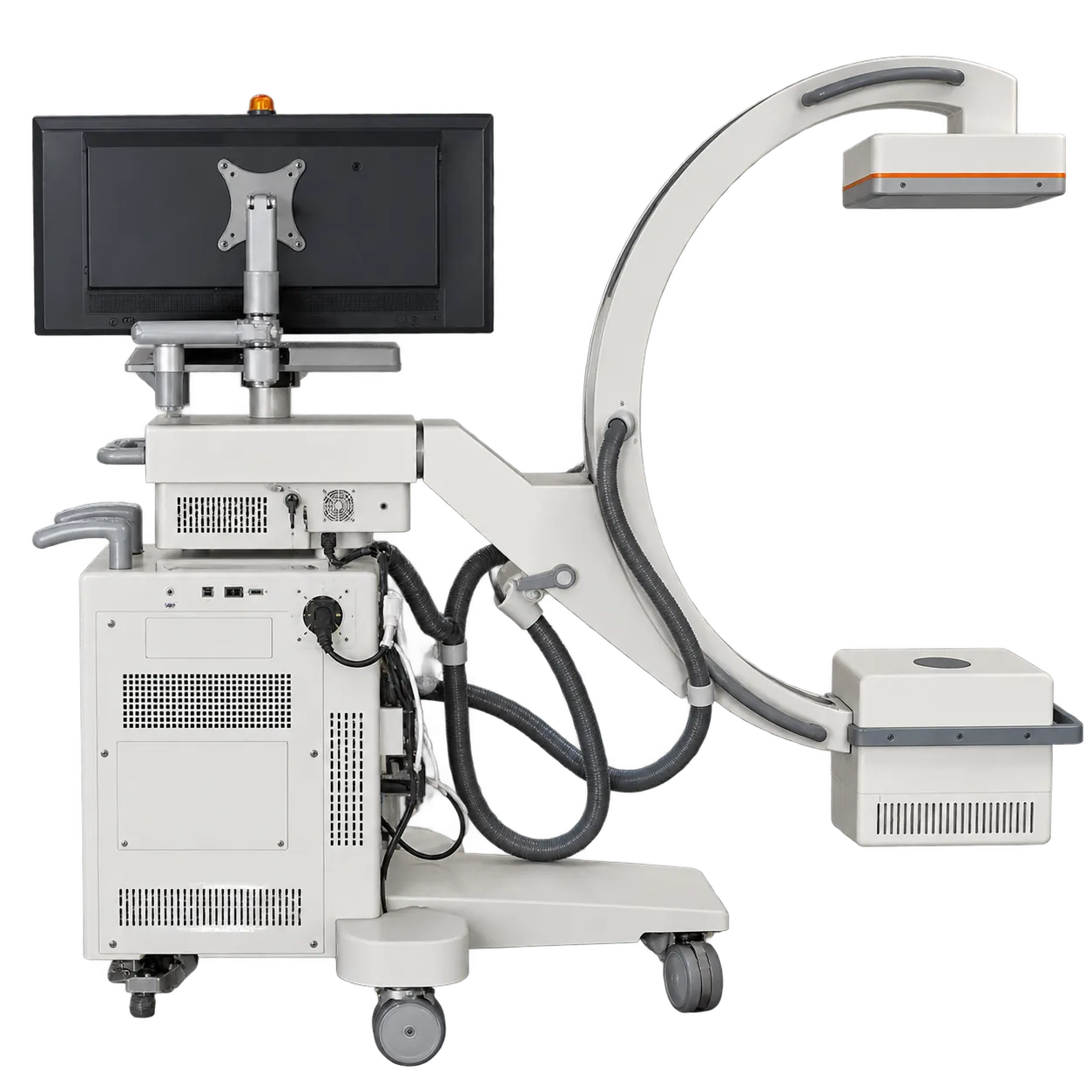

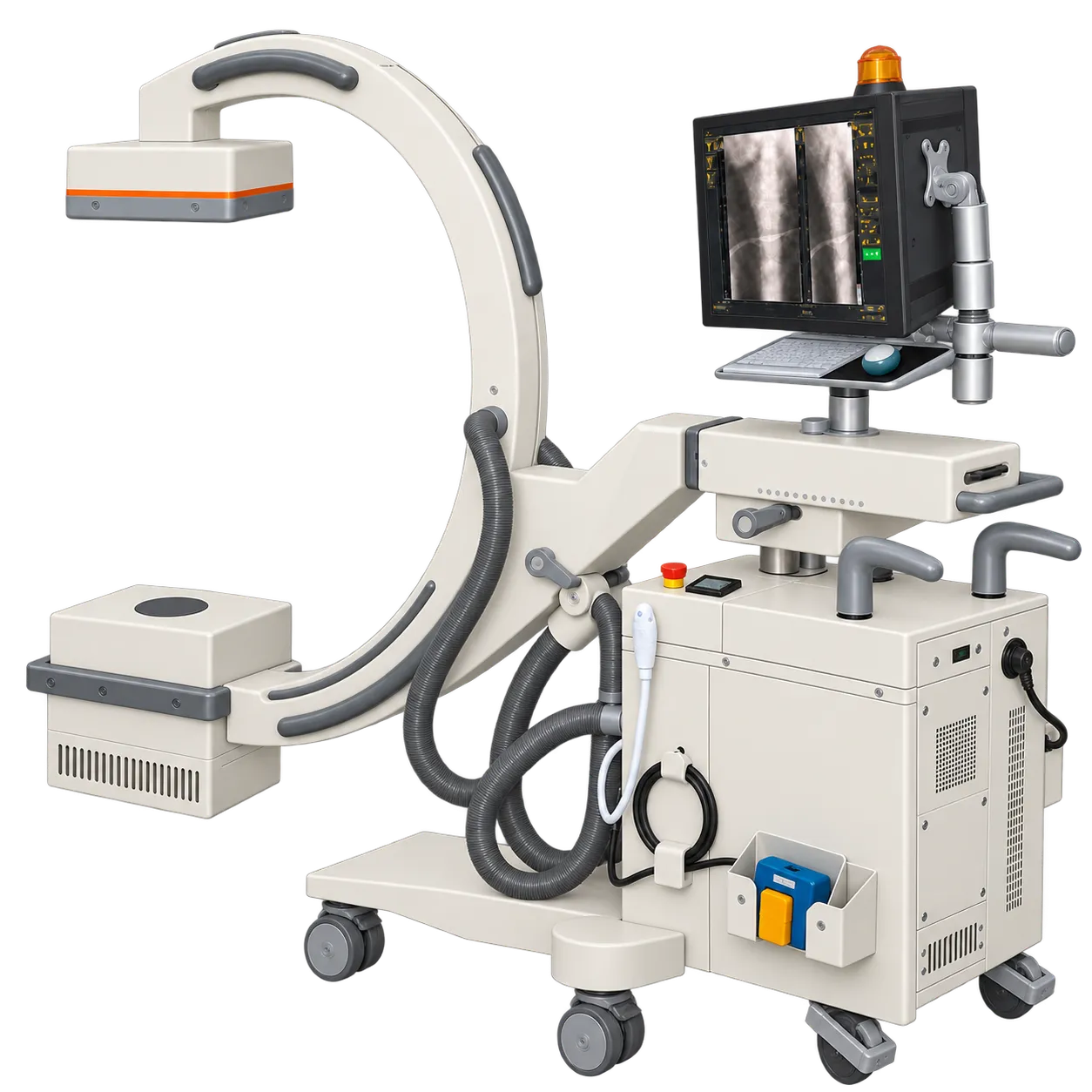

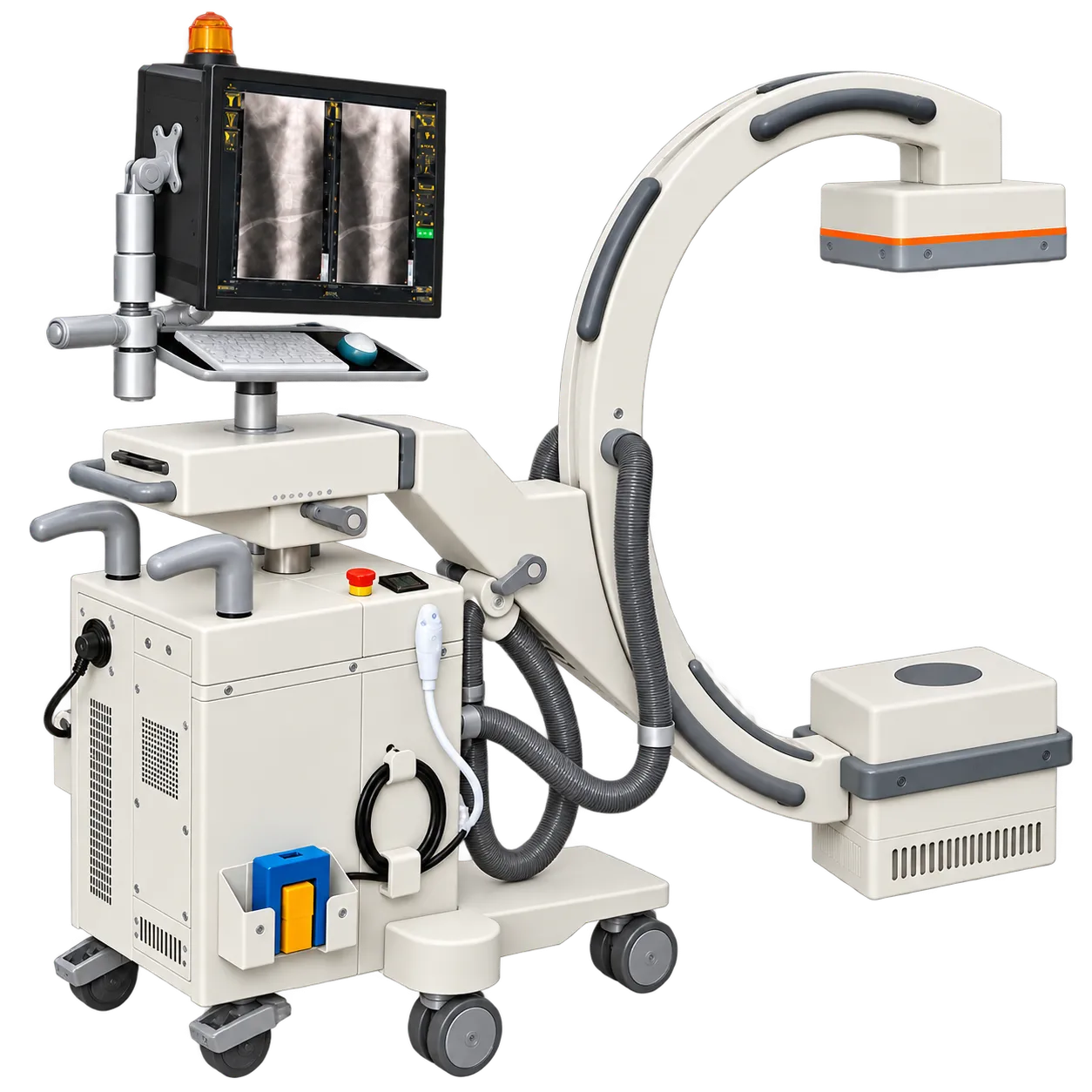

A mobile C-arm X-ray unit with this output suits orthopaedic and trauma theatres, pain management, urology, and general surgery, where the surgeon needs live images to guide screws, wires, needles, or catheters. The small 0.3 mm focus and the flat panel give sharp images of bone and metalwork. A field of around 9 inches covers hips, knees, wrists, and one or two spinal levels at a time, although it is smaller than the 12-inch panels used for larger anatomy.
The 5 kW generator and 6.3 mA fluoroscopy ceiling point to a compact unit for extremities, smaller patients and shorter procedures. Long vascular cases and bariatric patients benefit from more power and tube heat capacity. The laser localiser reduces the screening time spent on positioning, and 30 frames per second gives smooth live images. Whether pulsed fluoroscopy is available matters too, because pulsing can cut patient and staff dose considerably. Last-image hold, image rotation and on-screen measurement are also worth confirming, as they shape the workflow in theatre.
In UK theatres, the 2017 Ionising Radiations Regulations govern staff screening, and the IR(ME) R governs patient screening. Staff wear lead protection, controlled areas and local rules apply during screening, and patient dose has to be recorded, usually through a dose-area product meter. Medigear.uk confirms whether a DAP meter, pulsed modes and DICOM export are included.
It also obtains the arc dimensions and supply requirements for the theatre team and the radiation protection adviser. Theatre staff will also need training on the controls and the laser before first use.
