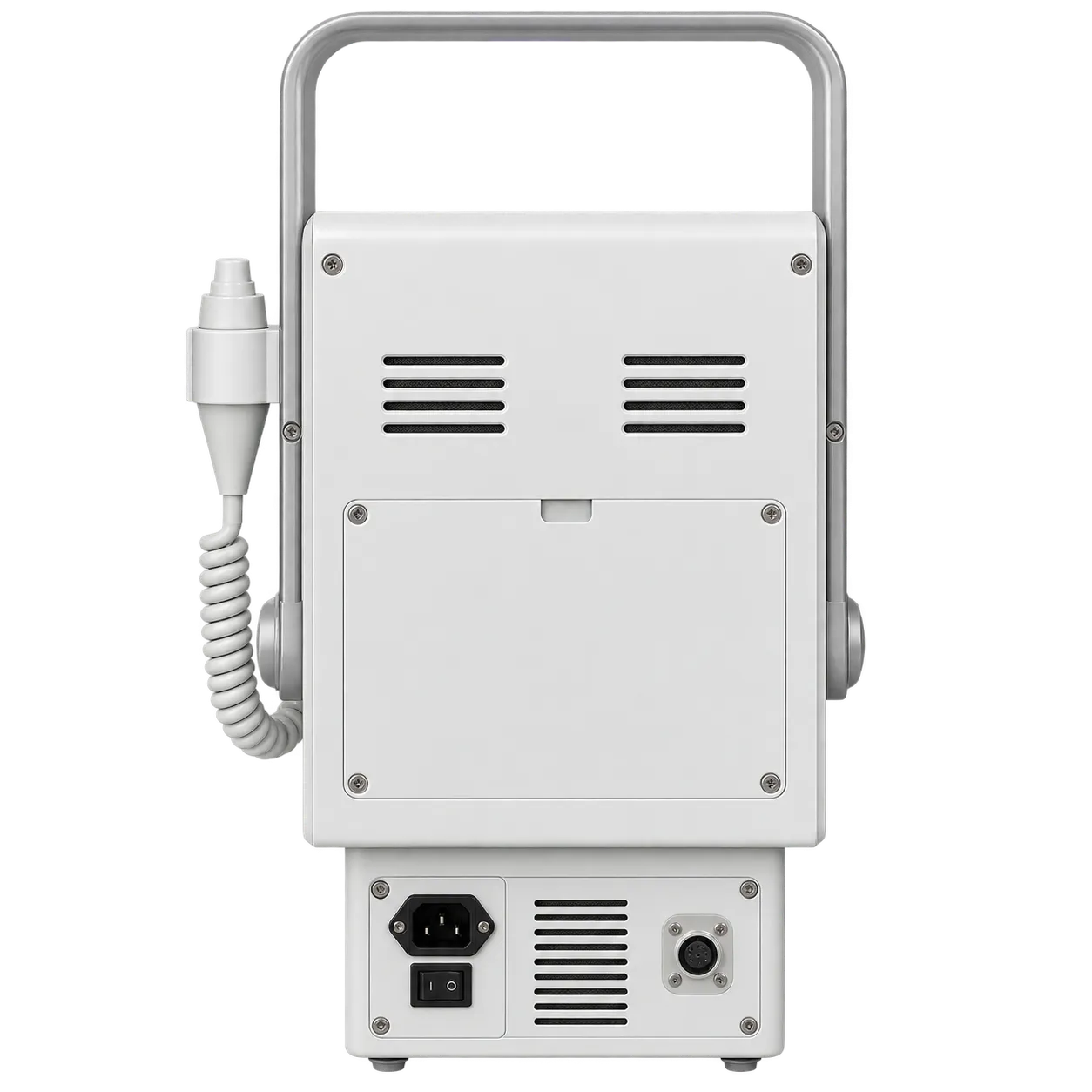

With 5.6 kW and up to 200 mAs, this portable DR X-ray unit moves beyond chests and extremities. It can take on examinations that need more output, such as the pelvis, the abdomen, and the spine in average adults. The 100 kHz generator gives a near-constant output. Exposure times of a few milliseconds help freeze movement in patients who cannot hold still, such as children or confused older adults. The 1.8 mm focal spot is larger than on most fixed rooms, so fine bony detail is best captured with the part close to the detector.

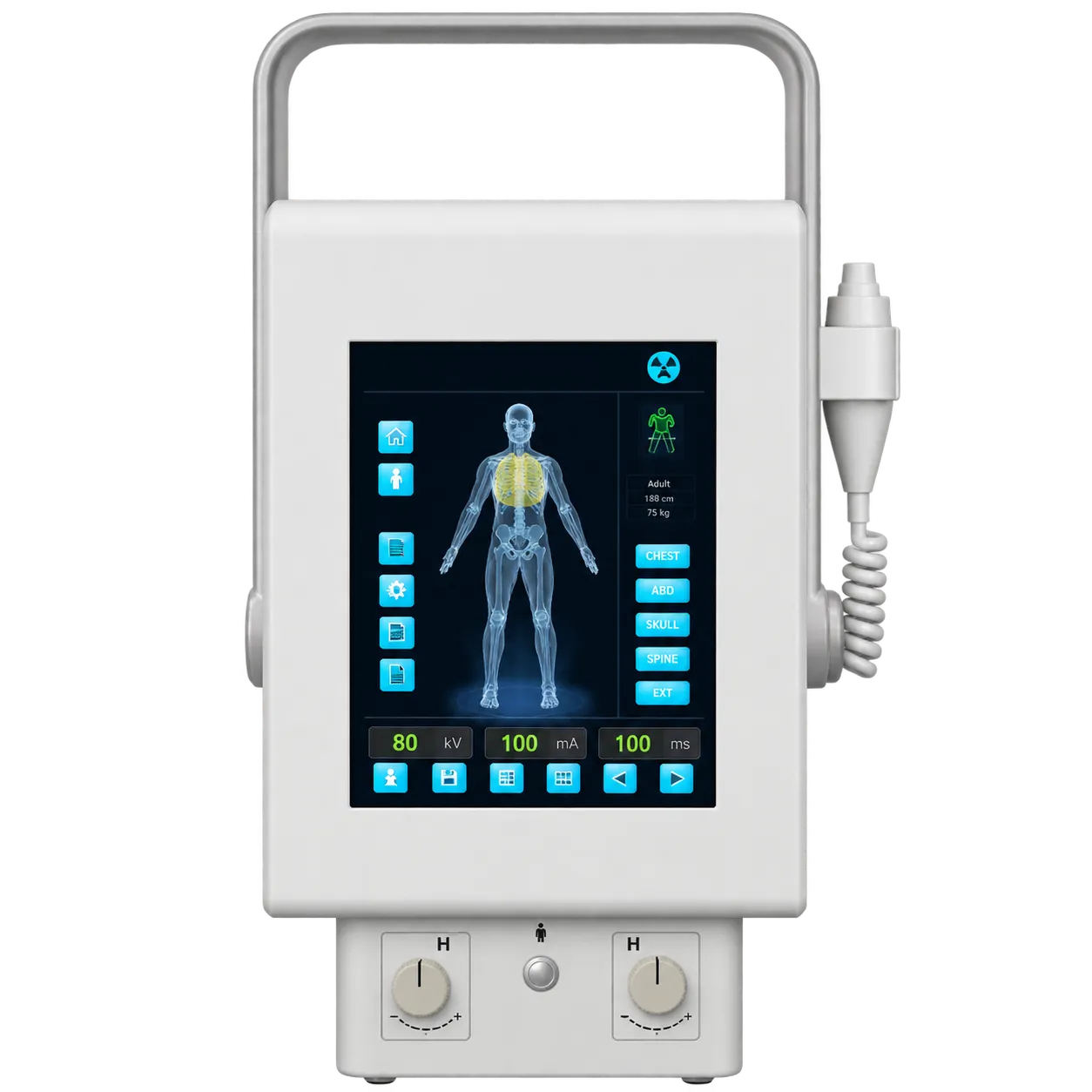

The battery version suits wards, care homes and field settings where a socket may not be close to the patient. Its wider 125 kV range also helps with penetration through larger body parts. The wireless exposure switch lets the operator stand back from the tube during the exposure, which supports the distance principle in radiation protection. The touch screen simplifies technique selection, although the sheet does not say whether preset anatomical programmes are included.
UK installation follows the Ionising Radiations Regulations 2017. The employer registers the work with the HSE and consults a radiation protection adviser, and the installer performs a critical examination. Acceptance testing then checks performance, including beam quality, so confirming the total filtration before delivery avoids problems on site.
Medigear.uk obtains the filtration, leakage, heat capacity, and detector details from Blackstone. It shares them with the radiation protection adviser and the radiology manager ahead of any order, together with the software documentation.
