Saikang SK-CHD01

The Saikang SK-CHD01 addresses a specific and well-documented clinical need in paediatric inpatient care: the prevention and mitigation of bed falls in children who are at elevated risk due to their clinical condition, age, or cognitive state. In post-operative recovery bays, children emerging from general anaesthesia are frequently disoriented, agitated, or unable to judge distance and depth accurately. A bed whose sleeping surface sits 190 mm from the floor dramatically reduces the injury potential of any uncontrolled movement during this phase, even when nursing observation is momentarily directed elsewhere.

Paediatric wards managing children with seizure disorders, epilepsy, or neurological conditions benefit directly from the SK-CHD01's combination of super-low positioning and secure wooden-edged guardrails. Children experiencing tonic-clonic episodes or rhythmic movements during sleep require a bed that minimises both fall distance and the risk of limb entrapment. The wooden rail edge, in contrast to a metal bar, reduces the risk of bruising or laceration if the child contacts the rail during movement. Ward managers implementing fall-risk assessment frameworks such as the Humpty Dumpty Falls Scale will find the SK-CHD01's feature set directly addresses the highest-risk categories.

Day-stay paediatric units across NHS trusts and private children's hospitals use the SK-CHD01 for children undergoing short procedures — dental extractions under general anaesthesia, minor orthopaedic interventions, ear-nose-and-throat procedures — who require a recovery bay bed during the post-anaesthetic period before discharge. In these settings, the bed's foldable frame is a significant operational advantage, allowing bays to be reconfigured rapidly between admissions and beds stored compactly in the interim. The 10-button locked remote reduces the risk of inadvertent position changes during recovery monitoring.

For paediatric units caring for children with developmental conditions, including autism spectrum disorder and intellectual disabilities, the SK-CHD01's low floor height and child-locked controller provide an additional layer of safety for patients who may not understand or respond to verbal instructions about staying in bed. Medigear.uk supplies the SK-CHD01 to NHS paediatric departments, private children's hospitals, and specialist paediatric facilities across the UK.

90 mm Minimum Floor Height for Fall Mitigation

The SK-CHD01's lowest position places the mattress platform just 190 mm from the floor — significantly lower than standard electric paediatric beds. At this height, any unsupervised exit or involuntary movement results in a minimal fall distance, substantially reducing the risk of head or limb injury. This single feature makes the SK-CHD01 the appropriate bed choice wherever a paediatric fall-risk assessment identifies an elevated clinical risk.

Foldable Frame for Ward Flexibility

The complete bed frame folds for transportation and storage, a feature unique to the SK-CHD01 within the Saikang paediatric bed range. This allows day-stay and short-stay units to store beds compactly between admissions, freeing bay space for clinical work. Folding takes place without tools and can be operated by a single member of staff, minimising disruption to ward workflow.

Beech Wood Board Construction

Head and foot boards combine laminate with solid beech wood, offering a natural aesthetic that reduces the clinical severity of the environment for young patients. Beech wood is structurally robust, lightweight relative to metal alternatives, and presents a smooth, cleanable surface on the laminate facing. For paediatric environments where reducing patient anxiety is a clinical priority, the wood-finish appearance provides a measurable benefit over standard hospital bed aesthetics.

Wooden-Edged Guardrails for Contact Safety

The side rails use wooden-edged construction rather than bare metal, reducing the risk of bruising or laceration if a child contacts the rail during movement, seizure activity, or sleep. The rails lock securely in the raised position and lower smoothly to facilitate supervised patient exit. This design provides both fall-prevention security and contact-safety benefits that metal-rail beds do not match.

10-Button Locked Remote Controller

The remote controller provides full bed adjustment through 10 clearly labelled buttons with an integrated child-lock function. When locked, the controller cannot be activated by a child pressing the buttons, eliminating an important source of inadvertent position changes in unsupervised moments. The lock engages and disengages quickly, allowing nursing staff to alternate between caregiver control and locked-safe status as the clinical situation requires.

CE-Marked for NHS Procurement Confidence

CE marking under MDD 93/42/EEC, combined with ISO 9001, ISO 13485, and EN 60601 compliance, provides the audit trail required for NHS trust procurement, clinical engineering sign-off, and MHRA registration. Medigear.uk holds all UK distribution documentation and can supply the Declaration of Conformity and full technical file index at the point of enquiry.

Distinguishing the SK-CHD01 from Standard Paediatric Beds

Standard paediatric electric beds typically achieve a minimum height of 480 mm or more. The SK-CHD01's 190 mm position is clinically meaningful: a 290 mm difference in fall distance represents a substantial reduction in impact force at the floor. For ward managers performing bedded-patient risk assessments, this difference directly influences which bed category is specified in the patient's care plan.

Foldable Storage Supports Surge Capacity Planning

Hospitals planning for surge capacity in paediatric services benefit from beds that can be stored efficiently when not in use. The SK-CHD01's foldable design allows multiple units to be stored in a fraction of the floor space required by rigid beds, supporting rapid bay setup during high-demand periods such as seasonal respiratory illness peaks or post-surgical recovery surges.

Suitable for a Range of Clinical Risk Profiles

While the SK-CHD01 is specifically positioned for fall-prevention, its standard electric positioning functions — backrest, knee-rest, height adjustment — provide the clinical utility required across a broad range of paediatric admissions. Ward managers do not need to segregate beds only for high-risk patients; it provides the same positioning flexibility as standard paediatric electric beds while delivering superior fall-risk mitigation as a baseline feature.

Super-Low Position: 190 mm from Floor

The bed achieves a minimum sleeping surface height of 190 mm from the Floor when set to its lowest electric position. This is the primary clinical differentiator of the SK-CHD01 within the Saikang paediatric range. The low position is maintained electrically, requiring no manual adjustment, and is stable under the bed's full safe working load.

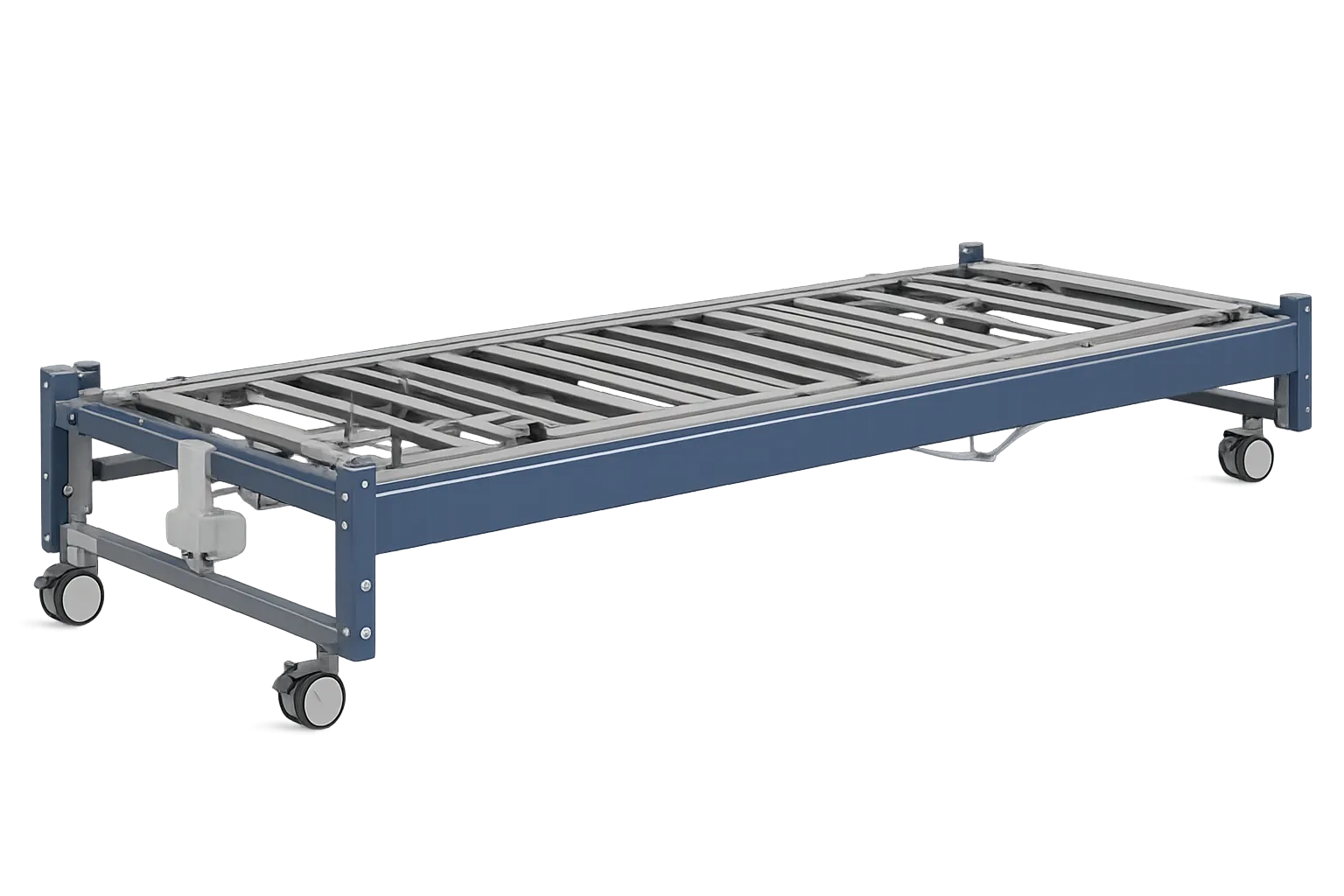

Foldable Full-Frame Design

The complete bed — frame, platform, and board supports fold to a compact configuration for transportation between bays or to a storage area. The folding mechanism uses no tools and is designed for single-nurse operation. When unfolded and locked in the clinical position, all structural connections engage fully before any patient loading occurs, ensuring safety is not compromised by incomplete unfolding.

Solid Beech Wood and Laminate Head and Foot Boards

The head and foot boards are manufactured from solid beech wood with a laminate facing, providing a surface that is structurally strong, lighter than equivalent metal boards, and cleanable with standard hospital disinfectants. Beech wood is a hardwood with low moisture absorption when sealed, making it appropriate for clinical environments where surface decontamination is routine.

Wooden-Edged Guardrails with Secure Locking

The guardrails are constructed with wooden edges rather than exposed metal. They run the full length of the mattress platform, locking positively in the raised position and releasing smoothly for caregiver access. The wooden edge reduces the risk of contact trauma during involuntary patient movement. Rail operation is designed to be quiet, minimising disturbance to sleeping patients in adjacent bays.

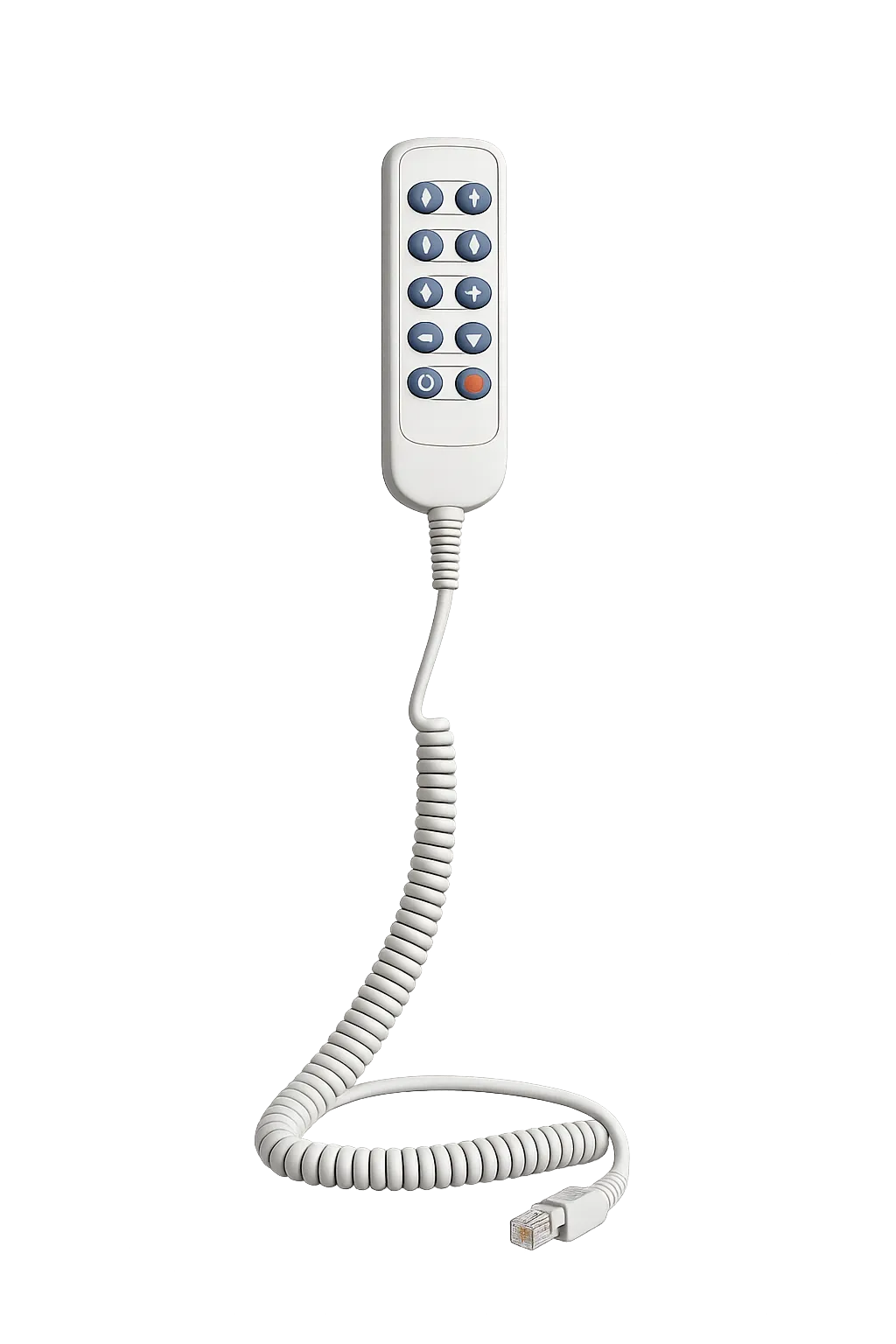

10-Button Remote Controller with Child Lock

The remote controller provides access to all bed functions through 10 dedicated buttons. The integrated child-lock function turns off button inputs when engaged, preventing inadvertent adjustments by a curious or agitated child. The controller is designed for single-handed operation from a standard nursing position beside the rail, without requiring the nurse to reach across the patient.

Electric Positioning Functions

The SK-CHD01 provides electric adjustment of backrest elevation, knee-rest elevation, and bed height as standard functions. These support the range of positioning requirements in paediatric nursing, including semi-recumbent positions for respiratory support, knee elevation for post-procedural limb management, and height adjustment for caregiver access during nursing procedures.

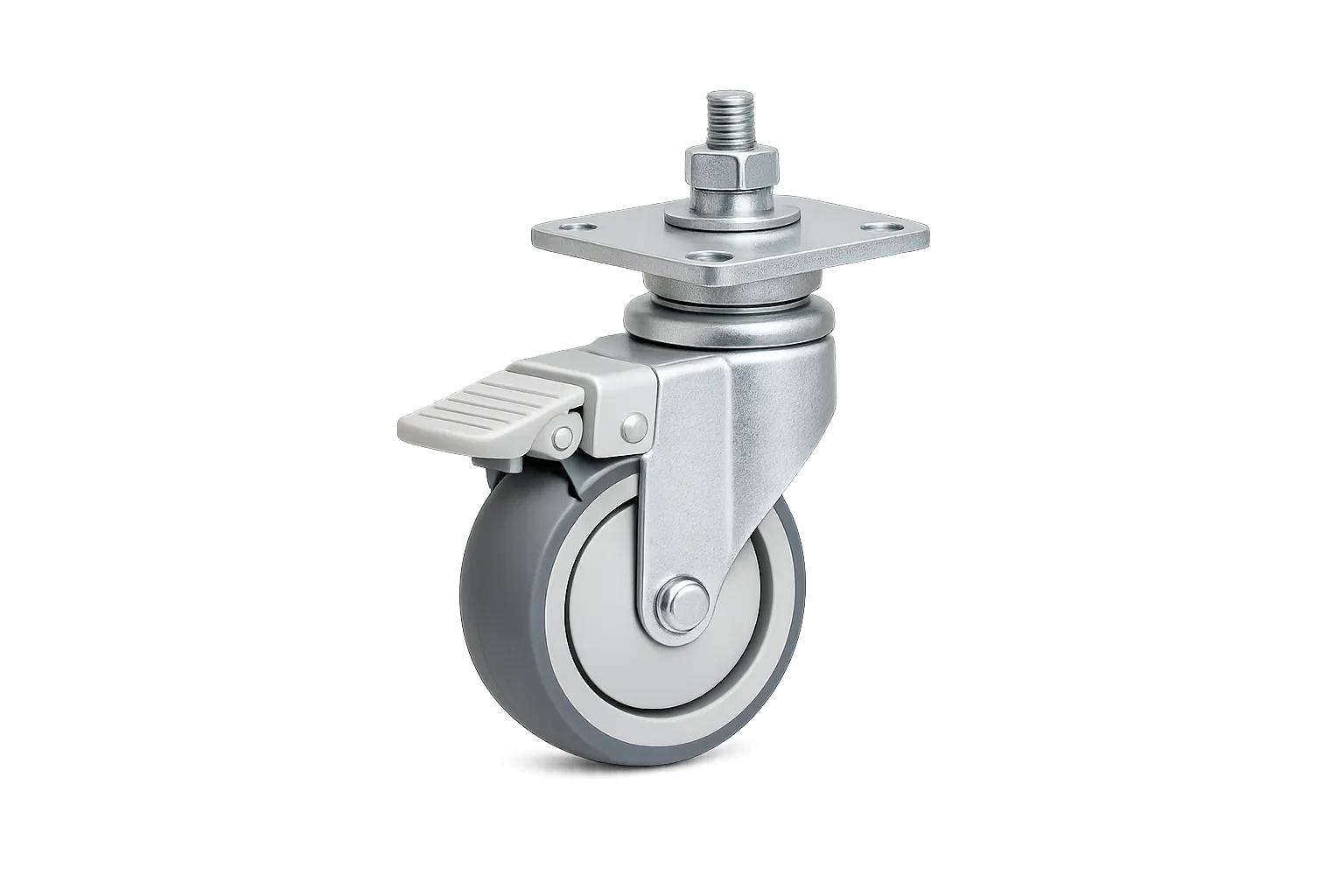

Integrated Castor System for Transport

The bed rolls on integrated castors that remain functional in both the unfolded clinical position and the folded transport configuration. This allows a single staff member to move the bed through corridors and between bays without requiring additional trolley equipment. The castors include a braking function that holds the bed in place during use.

CE Marked, MDD 93/42/EEC Class Compliance

The SK-CHD01 carries CE marking under the Medical Devices Directive 93/42/EEC, with manufacturing quality assured under ISO-9001 and ISO-13485 certification held by Jiangsu Saikang Medical Equipment. Electrical safety compliance is to EN 60601 standards. These certifications are the baseline requirements for NHS procurement and are verifiable through documentation supplied by Medigear.uk.

Laminate Surfaces for Infection Control

Laminate-faced board surfaces on the head and foot boards are smooth, non-porous, and cleanable with standard hospital-grade disinfectant products. The laminate construction prevents contaminants from being absorbed into the wood substrate. Ward infection control teams should verify that the proposed cleaning agents are compatible with both the laminate and the epoxy frame coating, following the manufacturer's guidance provided at the point of sale.

Standard Saikang Build Quality

The SK-CHD01 shares Saikang's standard frame construction: Baosteel-sourced structural steel, robot-welded joints, and an 11-stage epoxy paint process, tested to ASTM antibacterial standards, with a paint thickness of 0.12 mm. These manufacturing standards are applied consistently across the Saikang paediatric range, ensuring that the SK-CHD01's specialist features are delivered on the same quality platform as the broader product family.

12-Month Warranty with Free Spare Parts

The bed comes with Saikang's standard 12-month warranty, with 1% of the order value in spare parts supplied free of charge. Manufacturing defects identified within the warranty period are addressed with free parts and repair support. Technical support from Saikang remains free indefinitely; post-warranty parts are charged at cost. Medigear.uk manages all warranty and spares logistics for UK customers.

Optional Colour Customisation for Bulk Orders

For trusts or facilities ordering 100 or more units, Saikang offers colour customisation of the ABS and structural components. This allows the SK-CHD01 to be specified in a colour that matches institutional branding or ward colour-coding schemes. Colour options follow Saikang's standard RAL palette; confirm available options with Medigear.uk at the point of enquiry.

The Saikang SK-CHD01 is a purpose-designed super-low paediatric bed that addresses one of the most persistent challenges in children's inpatient care: reducing the clinical consequences of falls in high-risk young patients. It's a minimum floor height of 268 mm, 420 mm of electric height travel, a foldable frame, wooden-board construction, and a child-locked remote controller that form a coherent set of features no standard paediatric electric bed delivers. CE marked under MDD 93/42/EEC and manufactured to ISO 9001 and ISO 13485, it meets the compliance requirements for NHS procurement without exception. Medigear.uk distributes the SK-CHD01 across the UK, providing full documentation, pre-delivery site assessment, and spare parts support. Contact Medigear.uk to discuss fall-risk bed specifications, bulk order options, or to request a procurement quotation.
