Grace Medy BCM3-ZR01-2
Grace Medy Hospital Furniture & Fixtures

Grace Medy BCM3-ZR01-2

Steel-Cranked Clinical Precision — Compact Frame, Gear Guardrail, Built for Demanding Wards

The Grace Medy BCM3-ZR01-2 three-function manual hospital bed delivers crank-operated back elevation, knee flexion, and height adjustment within a compact 960 mm-wide frame. Its stainless steel crank — with a replaceable ABS crank option — and gear guardrail system provide durable, infrastructure-independent positioning for acute wards, rehabilitation settings, and home care. Available through Medigear.uk.

Sections
Manual bed
Categories
Hospital Furniture & Fixtures
Condition
New
Origin
China
Seller Type
Certified Professional Seller
Size:
2090 × 960 × 680 mm
CE & ISO Certified
Global Shipping
Supplier: Medigear
Share: Facebook LinkedIn Twitter Pinterest

The Grace Medy BCM3-ZR01-2 is a three-function manual hospital bed built for reliable crank-operated positioning within a compact 960 mm frame width, suited to space-constrained inpatient bays, rehabilitation rooms, and home care environments. Its height adjustment ranges from 420 mm to 680 mm, with back elevation, knee flexion, and platform height all operated through the stainless steel crank mechanism supplied as standard. A replaceable ABS crank is available for environments where lighter crank weight is preferred. Medigear.uk supplies full technical documentation for procurement teams requiring configuration and compliance details.

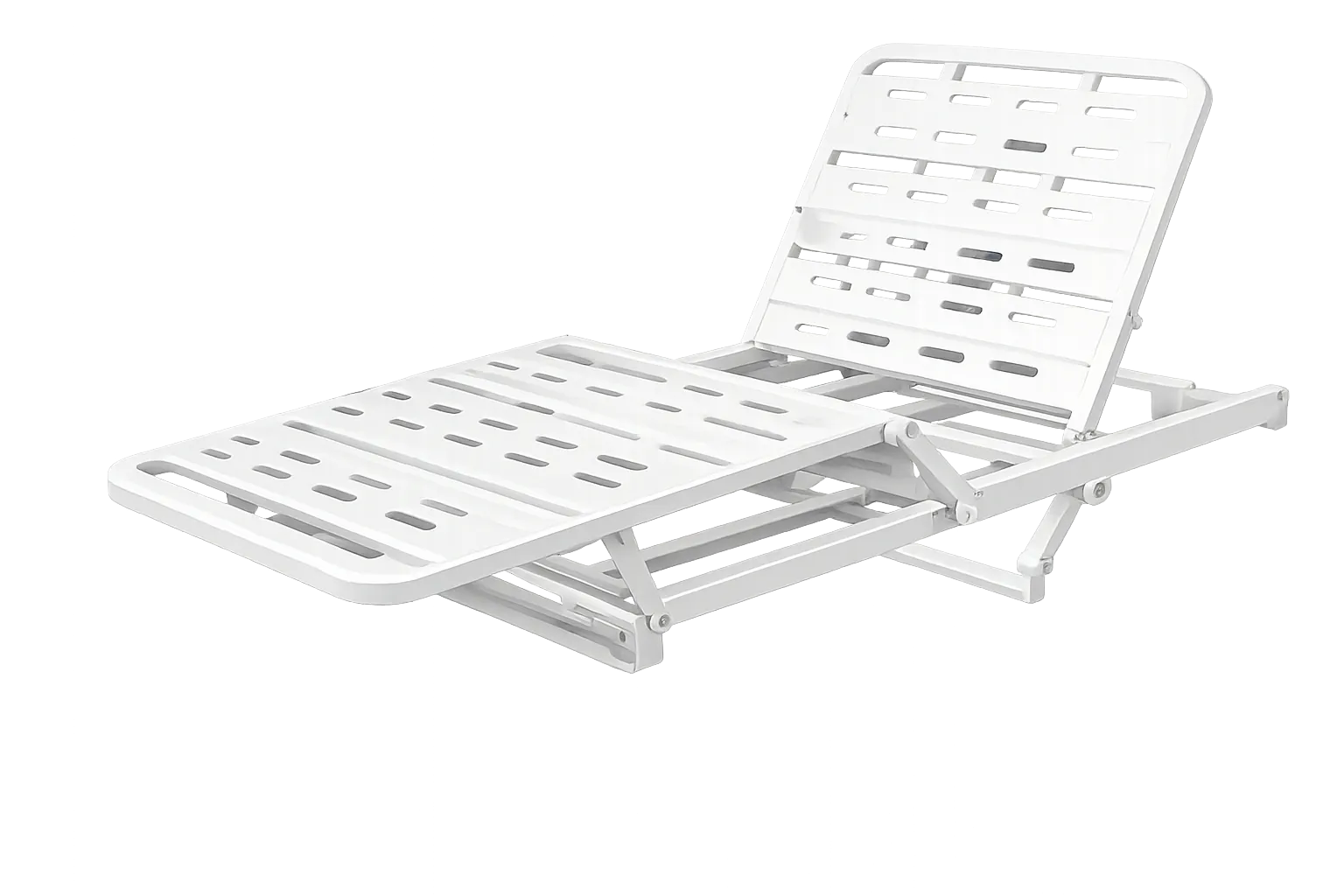

The bed frame articulates into multiple sections, governed by a crank-operated mechanical system. The back section adjusts from 0° to 75°, covering the clinical range from supine rest through high-Fowler's for respiratory management, assisted feeding, and post-operative recovery. The knee section adjusts from 0° to 45°, enabling lower-limb elevation and pressure redistribution for patients on extended bed rest. The stainless steel crank is removed and stored separately when not in use, in accordance with standard practice for steel-crank manual hospital beds.

The guardrail system is a gear guardrail — a mechanically indexed rail that engages positively at defined positions through a gear mechanism, providing secure, repeatable locking without reliance on friction or spring-loaded catches. Head and foot boards are supplied as a matched set. The mattress platform measures 1950 mm × 900 mm; confirm exact mattress length and depth compatibility with the Medigear.uk procurement team before ordering.

The load-bearing frame is constructed from high-grade steel with a powder-coated finish that is resistant to repeated hospital-grade disinfection. Four five-inch castors are fitted as standard. Certifications include CE marking under Medical Device Directive 93/42/EEC. Full certification documentation and technical files are available through Medigear.uk for NHS procurement and tendering processes.

General inpatient wards with space constraints benefit from the Grace Medy BCM3-ZR01-2 three-function manual hospital bed, whose 960 mm frame width allows easier transit through tighter corridors without sacrificing three-function positioning capability. The gear guardrail provides positive, indexed locking to support fall prevention governance. Manual height adjustment from 420 mm to 680 mm supports safe patient transfers without powered infrastructure. Medigear.uk supports NHS procurement teams throughout the specification and approval process.

Rehabilitation settings benefit from the BCM3-ZR01-2's stainless steel crank, designed for high-frequency use with frequent back and knee adjustments. The back range of 0° to 75° supports progression from supine rest to near-upright sitting, and the knee range of 0° to 45° supports lower-limb elevation and gait preparation. Medigear.uk can provide specification packs for rehabilitation procurement teams.

Care home environments benefit from a compact manual bed that avoids the overhead of motor maintenance. The BCM3-ZR01-2 provides the postural range needed for long-term resident care — including pressure relief and post-meal elevation — through a stainless steel crank that withstands daily use without degradation. The gear guardrail locks securely in place at each position, providing reliable containment for residents with limited spatial awareness. Medigear.uk offers care home procurement teams volume pricing and delivery coordination.

Home care and post-discharge settings benefit from the BCM3-ZR01-2's compact frame and infrastructure-independent crank operation. A trained family carer can operate all three adjustment functions through the stainless steel crank without a powered connection, and the gear guardrail locks securely without requiring a secondary engagement check. The 960 mm width fits more readily through domestic doorways and within standard bedroom layouts. Medigear.uk offers individual buyer consultation and delivery coordination for families arranging provision ahead of discharge.

Stainless Steel Crank Standard for High-Frequency Ward Use

The BCM3-ZR01-2 is supplied as standard with a stainless steel crank, inverting the typical manual bed configuration in which ABS is the primary and steel the upgrade. Stainless steel provides greater resistance to mechanical deformation under repeated torque loading, making it a better match for busy acute ward and rehabilitation environments where the crank is operated multiple times per shift. The stainless steel specification also reduces the frequency of crank replacement compared with ABS, lowering the long-term maintenance cost for institutional buyers. Medigear.uk can confirm the availability and lead time for replacement cranks upon request.

Gear Guardrail for Positive, Indexed Rail Locking

The gear guardrail on the BCM3-ZR01-2 engages positively at defined mechanical positions through a gear mechanism, providing an audible and tactile confirmation that the rail is securely locked at each position. This indexed locking behaviour prevents lateral slippage under patient load, which is a clinically meaningful safety advantage over friction-based or spring-loaded guardrail systems. For ward managers and procurement officers reviewing guardrail safety specifications, the gear mechanism provides a verifiable, repeatable locking standard to support fall-prevention governance. Full guardrail specifications are available through Medigear.uk.

Compact 960 mm Frame Without Platform Compromise

The BCM3-ZR01-2 delivers a 1950 × 900 mm mattress platform within a 960 mm overall frame width, making it narrower than the standard 1040 mm hospital bed profile and better suited to tighter clinical bays, rehabilitation rooms, and domestic environments. The reduced frame width allows the bed to navigate tighter ward corridors and many domestic doorway configurations that would restrict a full-width bed, improving operational mobility across departments. Procurement teams should note that the 1950 mm platform length differs from the standard 2020 mm and should confirm mattress compatibility before ordering. Medigear.uk can provide dimensioned drawings and guidance on mattress compatibility.

CE Certification for NHS and Regulatory Compliance

The BCM3-ZR01-2 carries CE marking under Medical Device Directive 93/42/EEC, satisfying the baseline requirement for NHS supply frameworks, CQC-regulated care settings, and OJEU tendering. Medigear.uk holds the complete declaration of conformity and technical file, available to procurement officers and clinical governance reviewers on request. For distributors building verified-supplier-accredited catalogues, the CE certification supports straightforward compliance with product listing requirements across NHS and private-sector supply channels.

Cost-Efficient Manual Operation Without Electrical Infrastructure

The BCM3-ZR01-2 delivers full three-function adjustable positioning through a manual crank that requires no electrical connection to the bed frame, making it suitable for ward bays, care home rooms, and home environments where powered bed infrastructure is unavailable. The absence of motor components removes the servicing and electrical compliance overhead associated with powered models, reducing long-term total cost of ownership. For NHS trusts managing fleet replacement across large ward counts, Medigear.uk procurement advisors can provide cost-comparison documentation on request.

Replaceable ABS Crank Option for Configuration Flexibility

Whilst the stainless steel crank is supplied as standard, the BCM3-ZR01-2 supports a replaceable ABS crank for environments where lighter crank weight or lower replacement cost is preferred. This dual-specification approach allows procurement teams and distributors to configure the bed for the intended clinical environment — steel for high-frequency acute and rehabilitation use, ABS for home care or lower-acuity settings. The replaceable design means the crank can be swapped in the field without replacing the bed frame. Confirm ABS crank availability with the Medigear.uk procurement team.

Ergonomic 260 mm Manual Height Range for Safe Handling

The 260 mm manual height range, from 420 mm to 680 mm, allows nursing and care staff to lower the bed to transfer height and raise it to a comfortable working level for bedside procedures through crank operation, reducing the need for sustained awkward postures during patient care. Although manually operated rather than motorised, the crank-driven height adjustment still removes the need for staff to physically reposition a fixed-height bed frame, providing a meaningful ergonomic benefit in care home and home care settings. For procurement teams assessing manual handling risk, Medigear.uk can supply supporting documentation.

Distributor and OEM Flexibility for Regional Clinical Supply

The BCM3-ZR01-2 is available through Medigear.uk for bulk distributor and OEM supply arrangements, with optional configurations including IV stand holes, drainage bag hooks, IV stand provision, and crank specification. Distributors building regional clinical and care-home supply catalogues can structure volume agreements through Medigear.uk and offer a compact manual bed with a steel-crank specification that differentiates it from standard ABS-crank models in the same product tier. The configurable crank and accessory options allow a single base model to serve multiple buyer segments.

Four-Mode Lift Capability for Versatile Manual Positioning

The BCM3-ZR01-2 supports four distinct manual adjustment configurations — back lift, leg lift, back and leg lift together, and overall lift — all achieved through the single stainless steel crank mechanism. The back-and-leg lift-together mode allows simultaneous coordinated positioning of both the backrest and knee section, which is useful in post-surgical and rehabilitation protocols where compound positioning is indicated. This four-mode capability within a manual platform makes the BCM3-ZR01-2 a functionally versatile option for procurement teams sourcing manual beds beyond basic two-position adjustment. Medigear.uk can provide full lift configuration details on request.

Minimum Platform Height: 420 mm

The BCM3-ZR01-2 reaches a minimum platform height of 420 mm, supporting natural foot-to-floor contact during assisted patient transfers and meeting clinical safe-handling recommendations for patients at elevated fall risk. This low starting height supports early mobilisation in rehabilitation settings and reduces fall risk for elderly and post-surgical patients at the transfer point.

Maximum Platform Height: 680 mm

The maximum platform height of 680 mm raises the mattress surface to a comfortable working level for nursing and care staff, reducing forward flexion during wound care, catheter management, and other bedside procedures. The 680 mm maximum covers the ergonomic working height requirements of staff of average to tall stature without requiring bed risers.

Total Height Adjustment Range: 260 mm

The total manual height adjustment range of 260 mm — from 420 mm to 680 mm — covers the clinical spectrum from safe transfer height to optimal nursing working height through crank operation. Height adjustment is independent of the back and knee section positions, allowing platform height changes at any backrest or knee angle without resetting the other axes.

Overall Frame Width: 960 mm

The overall frame width of 960 mm is narrower than the standard 1040 mm hospital bed profile, improving manoeuvrability through tighter ward corridors, rehabilitation room doorways, and domestic entrance widths. Procurement teams undertaking bay fit assessments should verify local clearances against the 960 mm frame width before placing orders. Medigear.uk can provide dimensioned drawings for facility planning.

Backrest Adjustment: 0° to 75°

The back section adjusts from a fully flat 0° to a maximum of 75° through the stainless steel crank, covering supine positioning through high-Fowler's for respiratory management, assisted feeding, and post-surgical recovery. The 75° maximum covers the full clinical positioning range required for most inpatient and rehabilitation care protocols.

Knee Section Adjustment: 0° to 45°

The knee section adjusts from 0° to 45° via the same crank mechanism, enabling lower-limb elevation, providing flexion support during lower-body assessment, and providing comfort positioning for patients on extended bed rest. Independent knee adjustment supports orthopaedic recovery, pressure area management, and lower-limb oedema protocols.

Stainless Steel Crank: Standard Specification

Three stainless steel cranks are supplied as standard, providing greater mechanical durability and resistance to deformation under high-frequency clinical use compared with ABS alternatives. The steel construction is particularly suited to busy acute ward and rehabilitation environments where the crank is operated many times daily.

Replaceable ABS Crank Option

A replaceable ABS crank is available as an alternative to the standard stainless steel unit, offering a lighter weight and lower replacement cost for environments where high-frequency crank operation is not a primary requirement. The replaceable design allows the crank to be swapped in the field. Confirm ABS crank availability and lead time with the Medigear.uk procurement team.

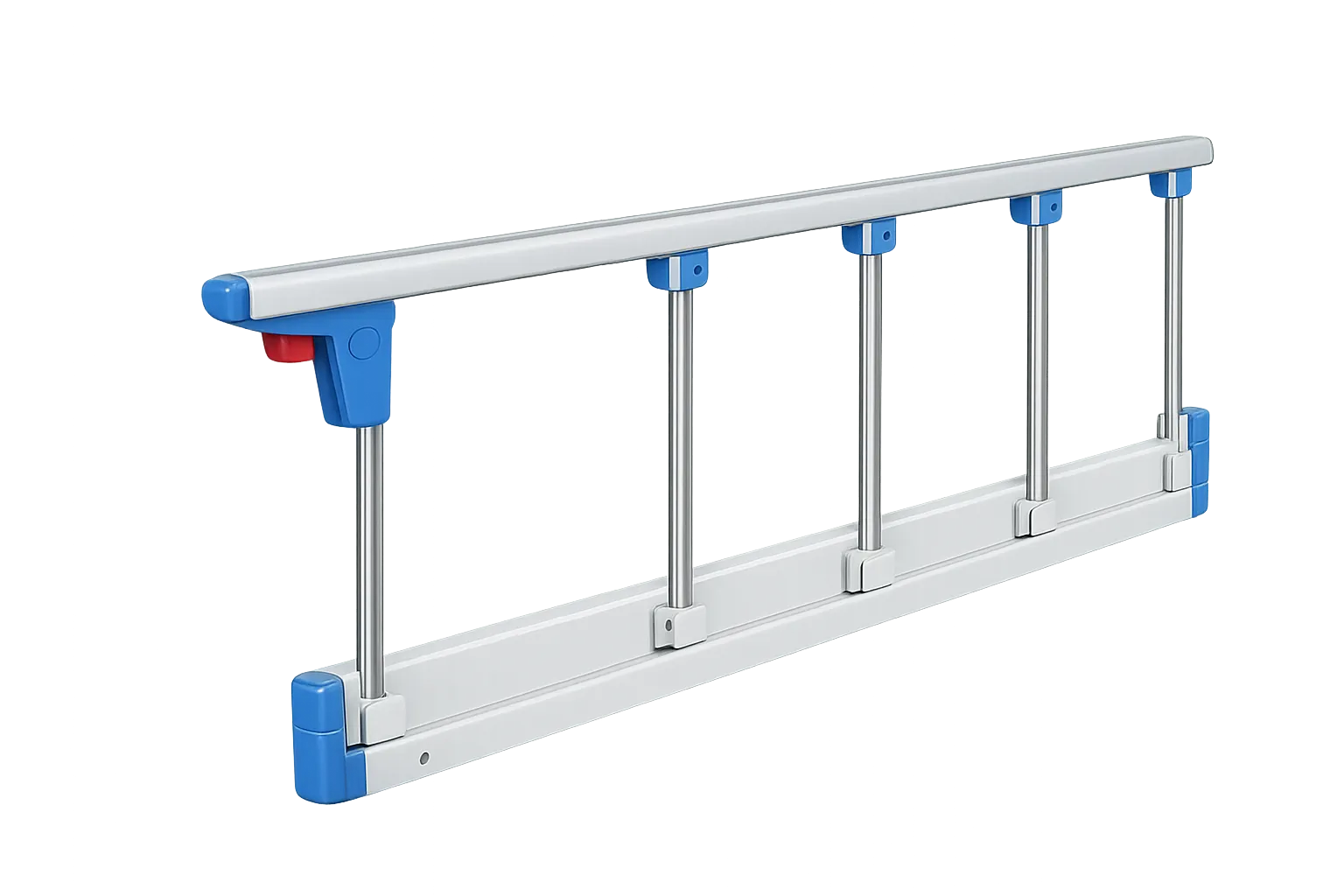

Gear Guardrail System

The gear guardrail engages at defined mechanical positions through a positive gear mechanism, providing an audible and tactile confirmation of secure rail locking at each position. Unlike friction-based rail systems, the gear mechanism prevents lateral slippage under patient load. Full guardrail specification is available from Medigear.uk.

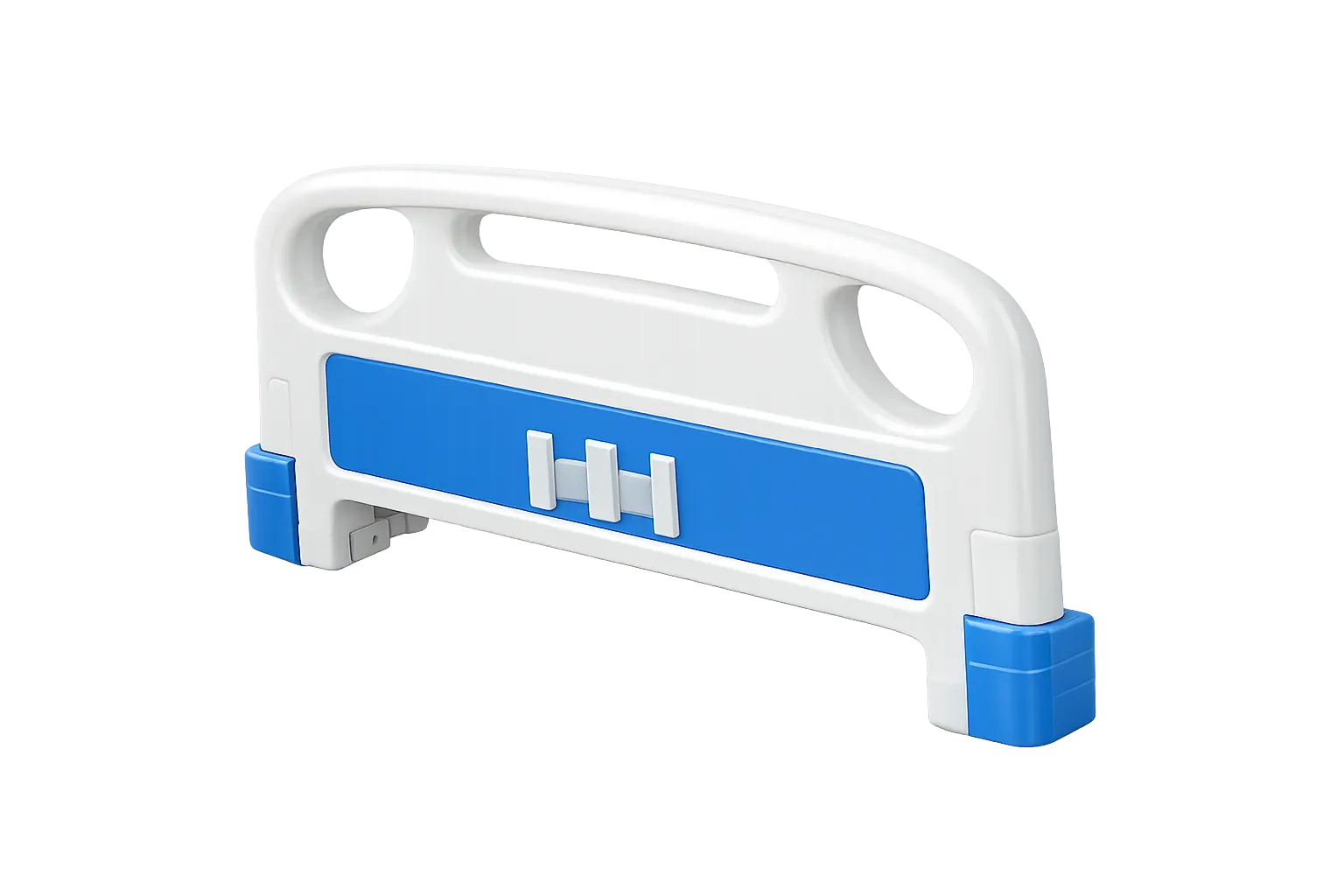

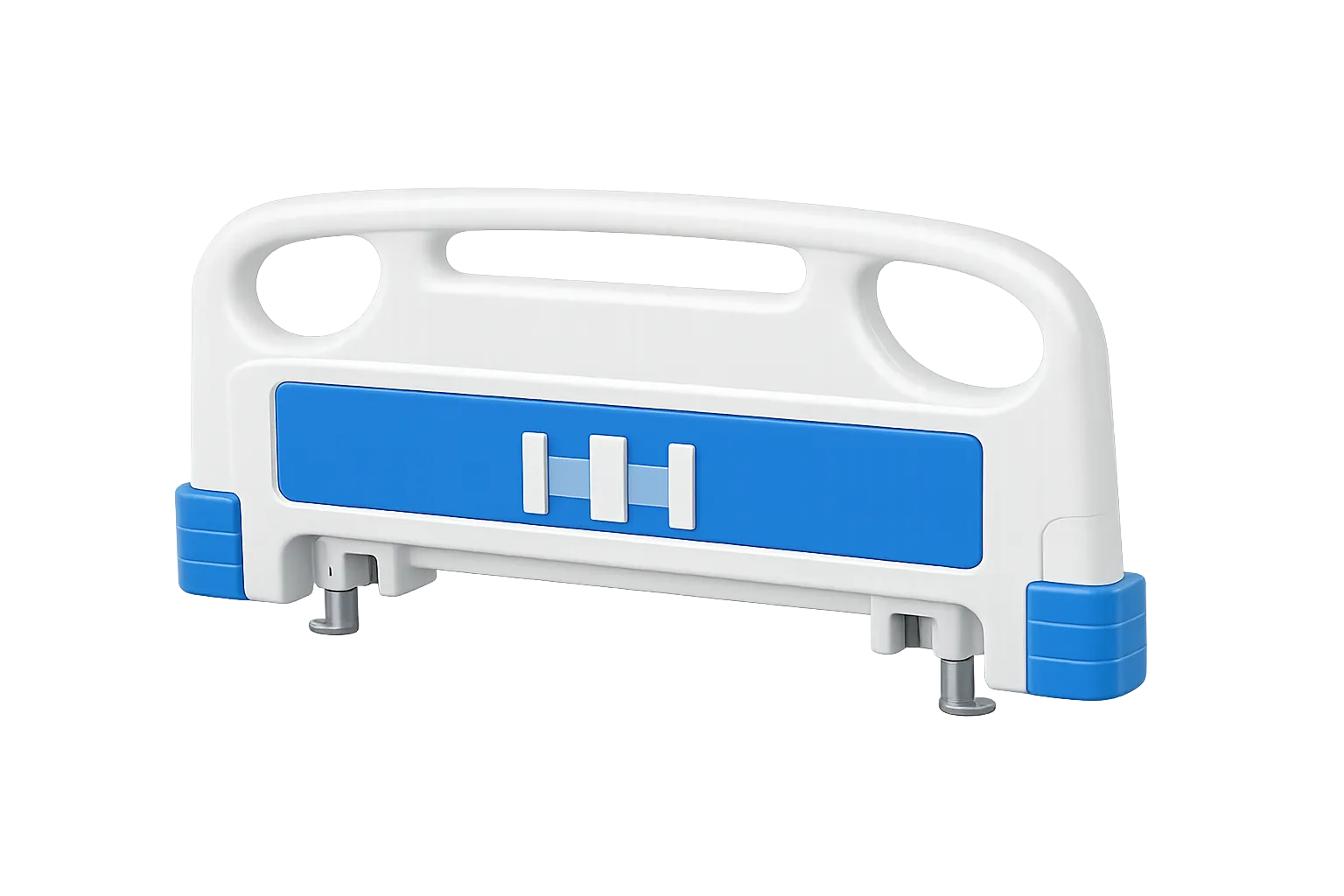

Head and Foot Boards: Matched Set Supplied

Head and foot boards are supplied as a matched set, defining the bed's overall profile and contributing to patient containment and ward aesthetics. Confirm material specification and colour options with the Medigear.uk procurement team before placing a bulk or OEM order.

Mattress Platform: 1950 × 900 mm

The usable mattress surface measures 1950 mm in length and 900 mm in width. The 1950 mm length is shorter than the standard 2020 mm hospital bed platform and should be confirmed against the intended mattress dimensions before ordering. Confirm full mattress length and depth compatibility with the Medigear.uk procurement team.

Mattress Depth Compatibility

Compatible mattress depth should be confirmed with the Medigear.uk procurement team, as depth compatibility is governed by gear guardrail height and head and foot board clearances specific to the BCM3-ZR01-2. Using a mattress outside the confirmed depth range may affect the effectiveness of guardrail containment and is not recommended for clinical deployment.

Frame Material: High-Grade Powder-Coated Steel

The load-bearing frame is constructed from high-grade steel with a powder-coated surface finish that is resistant to repeated cleaning with standard hospital-grade disinfectant agents. Chemical compatibility information is available from Medigear.uk for infection control assessments.

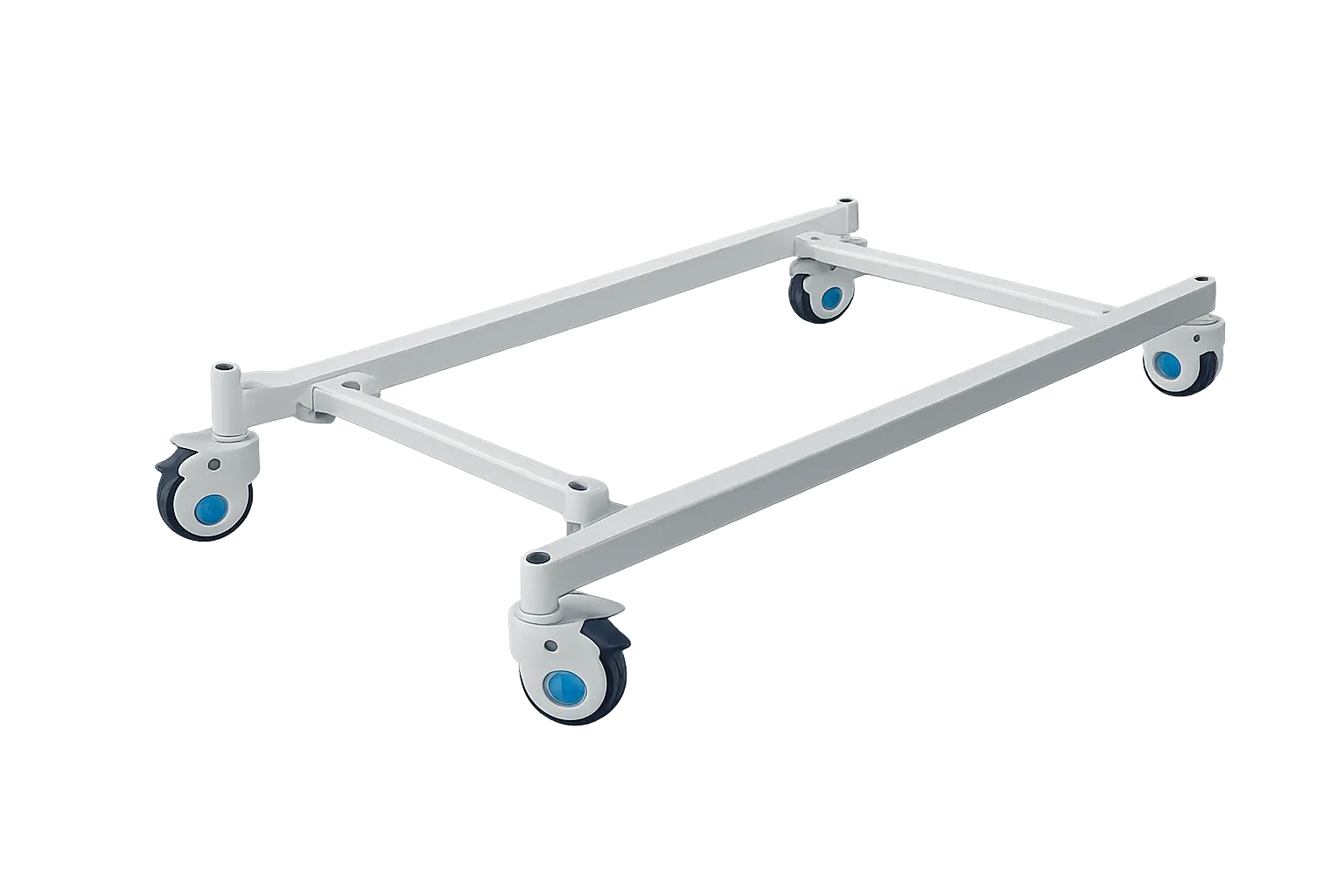

Castor Specification: Four Five-Inch Castors

Four five-inch castors are fitted as standard. Confirm brake configuration and castor load rating with the Medigear.uk procurement team. The castor size supports smooth transit across standard clinical floor surfaces during inter-department bed movements.

Optional Accessories: IV Stand Holes, Drainage Bag Hooks, IV Stand

The BCM3-ZR01-2 supports optional configuration with four or two diagonal IV stand holes, two drainage bag hooks, and an IV stand. These accessories are specified at the point of order through Medigear.uk. Procurement teams and distributors should confirm required optional configurations with Medigear.uk during the specification phase.

The Grace Medy BCM3-ZR01-2 three-function manual hospital bed delivers a CE-certified, infrastructure-independent positioning platform within a compact 960 mm frame width for general inpatient wards, rehabilitation settings, care homes, and post-discharge home care. Its stainless steel crank standard specification, replaceable ABS crank option, and gear guardrail system make it a durable and clinically versatile choice for NHS procurement officers sourcing high-frequency manual beds, regional distributors building compact manual bed portfolios, and individual home care buyers where frame width and crank durability are primary considerations. Full specification documentation, certification files, and logistics support are available through Medigear.uk at every stage of procurement. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

The BCM3-ZR01-2 reaches a minimum platform height of 420 mm, placing the mattress surface at a level that supports natural foot-to-floor contact during assisted patient transfers and reduces fall risk at the point of mobilisation. Clinical safe-handling guidance consistently identifies low-profile bed heights as a primary control measure for patients at elevated fall risk, and the 420 mm minimum supports compliance with those standards on general and rehabilitation wards. Crank-operated height adjustment allows staff to lower the bed to transfer height without electrical dependency. Contact Medigear.uk for full height specification documentation.

The stainless steel crank is specified as standard on the BCM3-ZR01-2 because it provides greater mechanical durability and resistance to deformation under high-frequency clinical use compared with the ABS alternative. In busy acute ward and rehabilitation environments where the crank is operated multiple times per shift across multiple patients, the steel construction offers a longer service life before replacement is required. A replaceable ABS crank is available for environments where lighter crank weight or lower cost is preferred. Confirm crank configuration and replacement availability with the Medigear.uk procurement team.

The gear guardrail on the BCM3-ZR01-2 uses a mechanical gear engagement mechanism to lock the rail at defined positions, providing positive, indexed stops rather than relying on friction or spring-loaded catches. This means the rail engages and holds securely under lateral patient load without gradual slippage, which is clinically significant in settings where rail stability under pressure is a patient safety requirement. The gear mechanism provides an audible and tactile confirmation of secure engagement that staff can verify quickly at the bedside without a secondary check. Full guardrail specification documentation is available from Medigear.uk.

The BCM3-ZR01-2 has a mattress platform measuring 1950 mm × 900 mm, which is shorter in length than the standard 2020 mm hospital bed platform. Procurement teams and home care buyers should confirm that intended mattresses are compatible with the 1950 mm platform length before placing an order, as standard hospital mattresses sized for 2020 mm platforms will overhang this bed. Confirm full mattress length and depth compatibility with the Medigear.uk procurement team to avoid fitting issues on delivery.

Yes. The BCM3-ZR01-2 carries CE marking under Medical Device Directive 93/42/EEC, satisfying the baseline technical certification requirement for NHS procurement frameworks and OJEU tender submissions. Procurement officers can obtain the full declaration of conformity and technical file through Medigear.uk, which is structured to support clinical governance review at the trust level. For care homes and private hospitals under regulatory inspection, the CE certification covers the equipment compliance requirements applicable to manually adjustable hospital beds.

The 960 mm overall frame width allows the BCM3-ZR01-2 to navigate tighter ward corridors, rehabilitation room doorways, and domestic entrance widths more readily than a standard 1040 mm frame, without restricting the 1950 × 900 mm patient platform. In space-constrained single-bay ward configurations, the reduced frame width increases available clearance on both sides of the bed for clinical staff and equipment during patient care. For home care purchasers, the narrower profile allows placement in standard domestic bedrooms where a full-width hospital bed would restrict movement. Contact Medigear.uk for dimensioned drawings to support bay and room fit assessments.

The BCM3-ZR01-2 is designed for operation by trained healthcare staff and does not require specialist technical training beyond standard hospital bed orientation and manual handling competency. The stainless steel crank follows a straightforward engage-and-rotate operation for each of the three adjustment axes, and the gear guardrail provides audible and tactile confirmation of secure rail engagement. Medigear.uk can arrange product orientation sessions for institutional buyers and supply printed operating guides for ward induction packs on request.

Warranty terms for the BCM3-ZR01-2 are confirmed at the point of procurement through Medigear.uk. They may vary depending on order volume, supply route, and whether AMC (Annual Maintenance Contract) support is selected. NHS trusts and institutional buyers should discuss extended warranty and AMC support options with the Medigear.uk account team before submitting a purchase order. Individual buyers and home care purchasers should request applicable consumer warranty terms directly from Medigear.uk at the time of ordering.

The BCM3-ZR01-2 is available through Medigear.uk for bulk procurement and regional distribution arrangements. OEM customisation options — including crank specification (stainless steel or ABS), IV stand holes, and drainage bag hooks — should be discussed with the Medigear.uk commercial team, as lead times and minimum order quantities vary by configuration. Distributors building clinical and care-home supply catalogues are encouraged to contact Medigear.uk for a review of commercial terms and a full product specification pack.

Yes. The BCM3-ZR01-2 is fitted with four five-inch castors, allowing the fully assembled bed to be wheeled between departments, through clinical corridors, and into service lifts without disassembly. The 960 mm frame width improves manoeuvrability through tighter ward corridors and doorways compared with standard-width beds. For freight transport between facilities or home delivery, packing dimensions and logistics requirements should be confirmed directly with the Medigear.uk procurement team.
