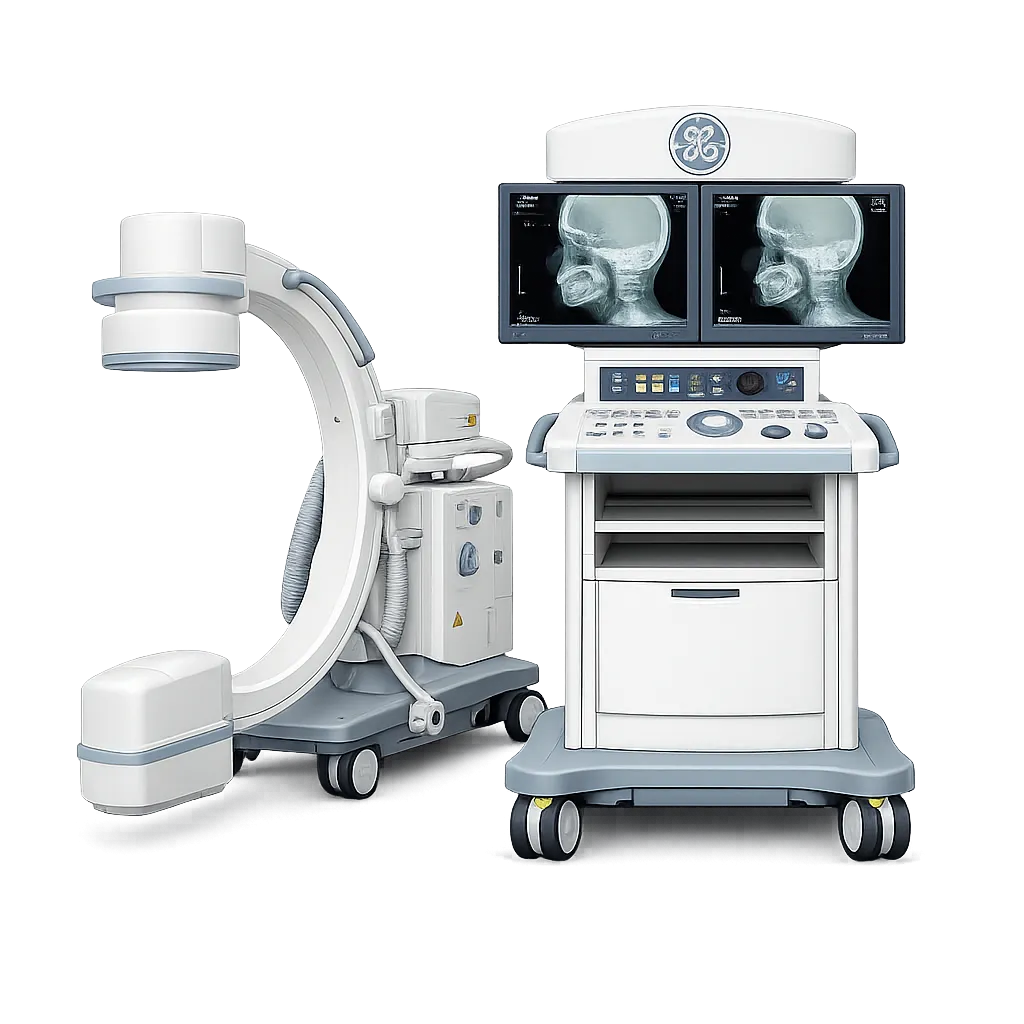

Orthopaedic and trauma theatres are the largest application for a system of this class, where screening guides reduction, fixation and implant positioning through the procedure. The 9 inch intensifier with 9, 6 and 4.5 inch fields covers extremity work at the smaller settings and larger anatomy at the widest, while 120 degrees of orbital and 450 degrees of lateral rotation position the arm without moving the patient. All clinical decisions, including whether an exposure is justified, remain with the entitled practitioner under the operating organisation's own procedures. Medigear.uk supplies condition records and compliance support rather than clinical guidance.
Vascular, urology and endoscopy services use the same platform where continuous screening is required, and the dose management features matter most in exactly those settings. Pulsed fluoroscopy, last image hold and shutter placement against a held image together reduce delivered dose substantially compared with continuous screening and live collimation.

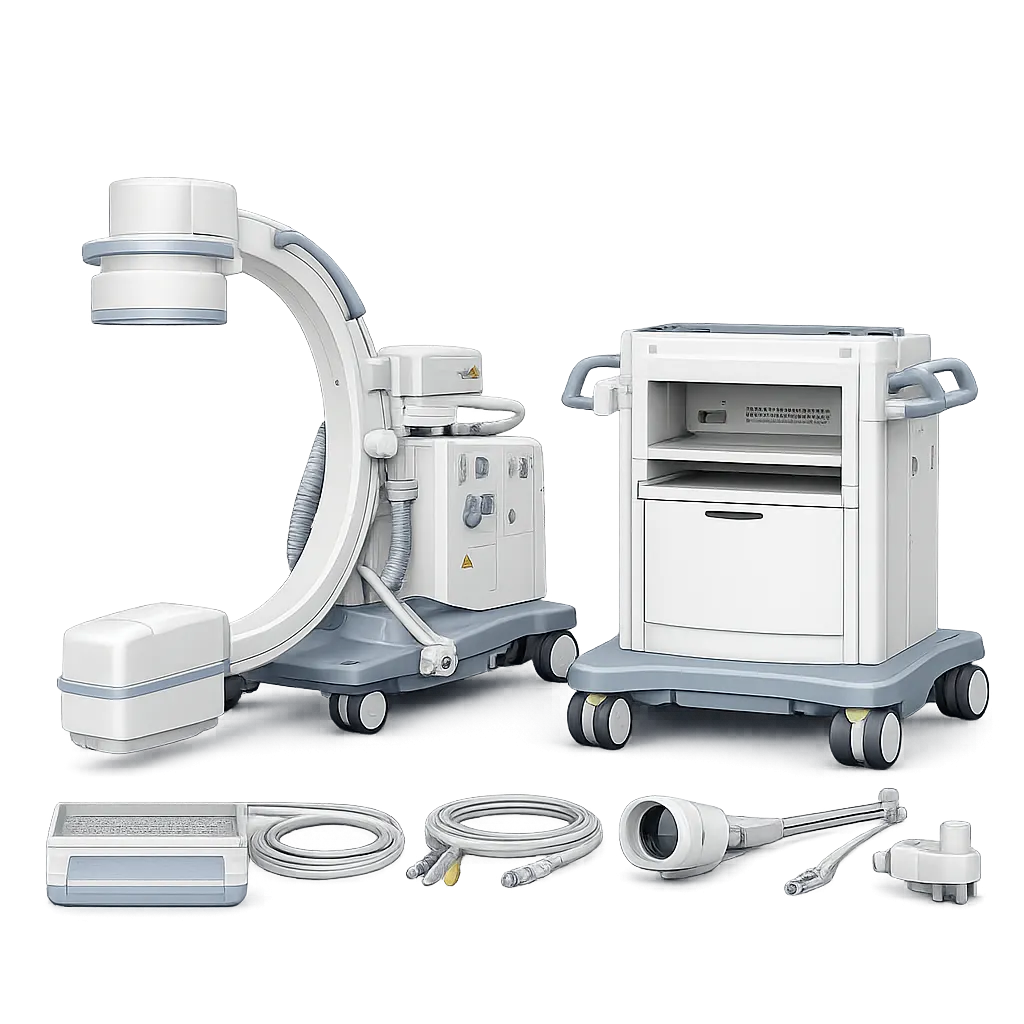

Emergency and intensive care use follows from mobility. A 285 kg compact frame on a footprint of 163 by 171 by 79 cm moves between locations rather than fixing imaging to one room, and the compact configurations remove a separate monitor cart entirely, which matters where a corridor or lift is the constraint rather than the theatre itself. Medigear.uk confirms which configuration a quoted unit carries.
Any organisation acquiring X-ray equipment takes on notification, radiation protection adviser appointment, local rules, employer procedures and a critical examination before clinical use. Medigear.uk raises these at enquiry so they are planned rather than discovered, since the lead time on appointing an adviser and drafting local rules can exceed the lead time on the machine itself.
