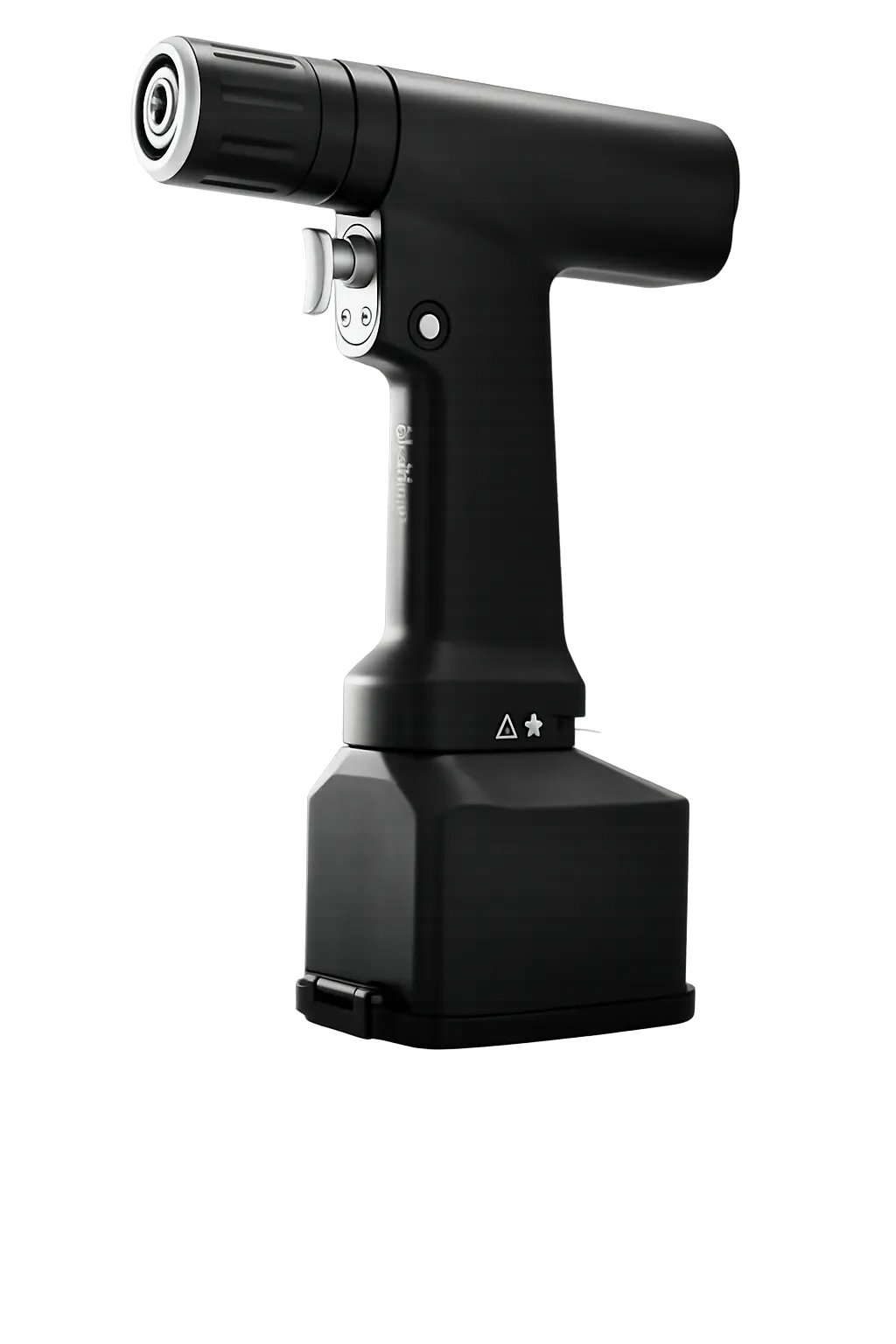

XC E-Series Brushless Multifunctional Drill Handpiece

General orthopaedic trauma theatres managing varied surgical caseloads — from fracture fixation and K-wire placement to plate drilling and cannulated screw technique — benefit from a single multi-attachment power platform that eliminates the need to procure and maintain separate handpieces for each operative function. The E Series Brushless Multifunctional Drill Handpiece, available through Medigear.uk, provides this capability via its quick-coupling interface, which accepts oscillating saw, reamer, drill, wire driver, and cannulated drill attachments. CE Certification and ISO 13485-aligned documentation help hospital procurement teams meet the approval requirements for instrument set consolidation.

In joint arthroplasty, where a single case may require drilling, reaming, sawing, and K-wire driving, the brushless motor delivers the torque and speed stability needed for precise performance across attachment types and bone densities. The low-noise, brushless design reduces the acoustic burden on theatre teams during long lists, and a single handpiece reduces sterilisation load compared to separate instruments. Medigear.uk supports procuring the E Series as a complete set or as a standalone handpiece compatible with existing attachment inventories.

Neurosurgical and thoracic teams can also use the E Series Brushless Multifunctional Drill Handpiece for cranial drilling and sternum saw attachments through the same coupling interface, making the platform relevant beyond orthopaedic surgery. The brushless motor's consistent output allows teams across multiple specialities to standardise on a single power platform without compromising performance. The complete set from Medigear.uk supports multi-speciality theatre consolidation.

B2B distributors building surgical power tool catalogues across orthopaedic, thoracic, and neurosurgical theatre markets can offer the E Series Brushless Multifunctional Drill Handpiece as a universal power platform that reduces the number of line items a procurement team must manage. We offer volume pricing, OEM labelling, and CE and ISO documentation packages through our Medigear.uk procurement team for distributors managing regulatory submissions in their operating markets.

Brushless Motor for Long Lifespan Across Repeated Autoclave Cycles

The brushless motor at the core of the E Series handpiece eliminates carbon brush wear that progressively degrades brushed-motor performance with each sterilisation cycle, giving the instrument a significantly longer functional lifespan than comparable brushed-motor designs. This is a meaningful total cost-of-ownership benefit for hospitals running high-volume trauma and joint lists, where the handpiece enters the autoclave daily, and for B2B distributors offering instrument programmes, where long service life reduces replacement frequency and the customer support burden. Medigear.uk can confirm the motor specification and estimated autoclave cycle rating with the manufacturer's technical documentation on request.

Quick-Coupling Interface — One Handpiece Across All Orthopaedic, Neurosurgical, and Thoracic Attachments

The quick-coupling attachment system of the E Series allows a single handpiece to drive oscillating saw, acetabulum reaming drill, standard bone drill, wire-and-pin chuck, cannulated drill, craniotomy mill, sternum saw, and reciprocating saw attachments through a fast-connect mechanism that requires no tools and no set changes between attachment types. By consolidating platforms, theatres buy fewer powered instruments to purchase, sterilise, and maintain across their full surgical programme, resulting in direct procurement cost savings for hospital instrument managers and catalogue simplification for distributors. Medigear.uk supplies the E Series with an attachment configuration that matches the buyer's operational requirements.

≤ 0.05 mm Axial Run-Out — Precision Drilling for Implant Alignment

The E Series handpiece maintains axial concentricity run-out at or below 0.05 mm, ensuring that the drill bit or attachment tip deviates no more than 0.05 mm from the intended rotational axis during operation. This level of concentricity is required in orthopaedic drilling where the accuracy of hole placement, angle, and depth directly determines the seating and alignment of implanted screws, wires, nails, and prosthetic components. Run-out exceeding this specification produces widened or off-axis bone channels that compromise implant fixation stability and long-term outcome. The 0.05 mm specification is confirmed in the product documentation available through Medigear.uk.

CE Certified and ISO 13485-Aligned — NHS-Ready Compliance Documentation.

The E Series Brushless Multifunctional Drill Handpiece is CE-certified and manufactured to ISO 13485, meeting the regulatory compliance requirements of NHS trust medical device approval panels, hospital procurement committees, and government framework buying assessors. Medigear.uk has the Declaration of Conformity and technical documentation ready to be issued with the product, so you won't face administrative delays when sourcing compliance paperwork after purchase. For institutional buyers managing complex multi-device procurement submissions, this documentation completeness is a practical operational benefit.

Low-Noise Brushless Operation — Improved Theatre Environment During Long Lists

The brushless motor of the E Series produces lower operational noise than equivalent brushed-motor designs, which contributes to a quieter theatre environment during extended joint replacement, trauma, or neurosurgical lists where the power tool is in continuous use across multiple operative sequences. Lower background noise reduces cumulative acoustic fatigue for the surgical team and supports the communication quality needed during complex procedures. Please confirm the operational noise level specification with the Medigear.uk procurement team using the manufacturer's technical datasheet for the institutional occupational health review.

Autoclavable Handpiece at 135°C — Validated CSSD Integration

The E Series handpiece body is autoclavable at up to 135°C once the battery has been removed and integrates directly into the high-temperature, high-pressure sterilisation workflows used in hospital CSSD departments for reusable Class II surgical instruments. The sterilising channel included in the standard set supports internal sterilisation of the handpiece bore and attachment coupling port, ensuring full compliance with infection control requirements without the need for cold-process sterilisation agents or special handling. The validated sterilisation protocol is available from Medigear.uk for supply to sterile services departments on request.

Multi-Speciality Platform — One Instrument Across Orthopaedic, Neuro, and Thoracic Surgery

The E Series quick-coupling interface supports attachments used in orthopaedic trauma, joint arthroplasty, neurosurgery, and thoracic surgery, making the E Series handpiece a genuine multi-speciality power-tool platform rather than a single-speciality instrument. For hospitals with shared instrument budgets across surgical divisions, or for procurement frameworks that manage equipment across multiple specialities, the ability to specify a single handpiece platform that serves all departments simplifies procurement. The Medigear.uk team can advise on the attachment configuration that best serves a specific hospital's multi-speciality requirements.

Complete Set Supply — Ready for Immediate Clinical Use

The E Series Brushless Multifunctional Drill Handpiece is supplied as a complete set, including the handpiece, battery, charger, sterilising channel, and attachment configuration selected at the point of procurement. This all-in-one supply means the instrument can move from goods receipt through sterile services to operative use without the procurement team having to source additional accessories from separate suppliers. Medigear.uk supplies the full set as a single line item with all compliance documentation included, which simplifies the goods receipt and commissioning process for new theatre facilities.

OEM and Volume Supply — Flexible for Distributor Catalogues and Institutional Programmes

Medigear. The UK offers the E Series Brushless Multifunctional Drill Handpiece for OEM configuration, volume pricing, and custom attachment set composition, making it a strong anchor product for B2B medical equipment distributors building surgical power-tool catalogues for the orthopaedic, neuro, and thoracic markets. White-label branding, custom packaging, and documentation in different regulatory formats may be available depending on order volume. The Medigear.uk business team provides the CE and ISO documentation packages needed to support distributor regulatory submissions in each operating market.

Maximum Drilling Speed: approximately 1100 rpm — Optimised for Bone Drilling

The E Series handpiece delivers a maximum speed of approximately 1100 rpm in standard drill mode, which aligns with the clinically established optimal range for controlled bone drilling, minimising frictional heat generation while maintaining adequate cutting efficiency. Speed customisation to 1200, 1350, and 1500 rpm may be available on request; confirm options with the Medigear.uk procurement team. The variable trigger provides stepless control from zero to maximum speed without stepped transitions between pre-set bands.

Motor Torque: 3.3 Nm — Sufficient Force for Cortical and Cancellous Bone

The brushless motor delivers 3.3 Nm of torque, providing sufficient rotational force to drive the drill bit through the full thickness of cortical bone in long-bone trauma drilling and joint reconstruction procedures without stalling under load. This torque output is confirmed in the EM-100 technical data sheet and is consistent with the specification required for trauma and arthroplasty drilling. Confirm the torque specification for specific operative applications with the Medigear.uk procurement team.

Axial Concentricity Run-Out: ≤ 0.05 mm — High-Precision Implant Placement

The axial run-out specification of 0.05 mm or below ensures that the drill tip or attachment axis deviates no more than a fraction of a millimetre from the intended rotation centre during operation. This precision is the standard required for orthopaedic drilling in joint reconstruction, cannulated screw technique, intramedullary nail preparation, and neurosurgical applications, where hole accuracy directly determines implant seating and surgical outcome. The specification is confirmed in the E Series product documentation available through Medigear.uk.

Motor Type: Brushless Motor — Extended Autoclave Lifespan

The brushless motor eliminates carbon brush wear, providing more consistent power output over a greater number of sterilisation cycles than a brushed motor equivalent. This extended operational lifespan is a direct economic benefit in high-volume surgical environments where the handpiece is autoclaved daily. The brushless motor also generates less internal heat during operation and produces less audible noise than brushed designs, contributing to a better theatre environment during long operative lists.

Attachment Interface: Quick-Coupling — Tool-Free, Multi-Brand Compatible

The quick-coupling interface connects and disconnects attachments without tools, enabling intraoperative attachment changes in seconds. The interface is compatible with oscillating saw, acetabulum reaming drill, standard bone drill, wire-and-pin chuck, cannulated drill, craniotomy mill, sternum saw, and reciprocating saw attachments, and supports multiple attachment brands via a standard coupling format. Confirm specific brand compatibility with the Medigear.uk team before ordering.

Attachment Range: Oscillating Saw, Reamer, Drill, Wire Driver, Cannulated Drill, and More

The E Series handpiece accepts a comprehensive range of quick-coupling attachments covering all major functions used in orthopaedic trauma, joint arthroplasty, neurosurgery, and thoracic surgery. This range includes an oscillating saw for arthroplasty cuts, an acetabulum reaming drill for hip socket preparation, a standard bone drill for trauma fixation, a wire and pin chuck for K-wire driving, a cannulated drill for guided wire technique, a craniotomy mill for neurosurgery, and a sternum saw for cardiac access. The attachment set supplied with the handpiece can be configured to match the buyer's operative programme through the Medigear.uk team.

Battery: NiMH, Non-Autoclavable — Must Be Removed Before Sterilisation

The E Series uses a high-capacity NiMH rechargeable battery for extended operation. The battery is not autoclavable and must be removed from the handpiece before each sterilisation cycle; attempting to autoclave the battery will damage the cells and degrade performance. A sterilising channel is included in the set for handpiece sterilisation with the battery removed. Replacement batteries are available as spare parts through Medigear.uk.

Handpiece Material: Medical-Grade Stainless Steel — Autoclavable at 135°C

The handpiece body is manufactured from medical-grade stainless steel, providing corrosion resistance through repeated high-temperature autoclave cycles. Once the battery is removed, the handpiece is autoclavable at up to 135°C using high-temperature, high-pressure sterilisation consistent with Class B CSSD reprocessing. Stainless steel construction is the accepted material standard for reusable Class II surgical power tools and supports the long operational lifespan of the E Series handpiece.

Variable Speed Trigger: Stepless from Zero to Maximum rpm

The trigger delivers proportional, stepless speed response from zero to the maximum rpm, allowing the surgeon to begin drilling, sawing, or reaming at zero speed for positioning, then ramp up smoothly to the required operative speed without stepped transitions. This control characteristic is consistent with the expectation for precision surgical power tools used in orthopaedic and neurosurgical procedures, where initial engagement speed significantly affects outcome accuracy.

Set Contents: Handpiece, Battery, Charger, Sterilising Channel, Attachments, Aluminium Case

The complete E Series set includes the handpiece, one or two batteries, depending on the configuration, a charger, a sterilising channel, the selected attachment set, and an aluminium carrying and storage case. Individual replacement components, including batteries, sterilising channels, and attachments, are available through Medigear.uk for ongoing instrument maintenance and set replenishment. You can customise the set composition at the point of procurement with the Medigear.uk product team.

Low Noise Operation — Below 63 dB During Use

The E Series brushless motor produces low operational noise, confirmed to be below 63 dB during standard drilling, which is within the ambient noise range of a standard operating theatre and does not require supplementary hearing protection for theatre teams under standard occupational health guidelines. This low-noise profile is a practical advantage during extended joint arthroplasty or neurosurgical lists where the handpiece is in continuous use across multiple procedures. Confirm the exact noise level with the Medigear.uk procurement team using the manufacturer's technical datasheet.

Certification: CE Certified, ISO 13485-Aligned Manufacturing

CE Certification confirms that the E Series Brushless Multifunctional Drill Handpiece meets the essential safety and performance requirements of the applicable Medical Device Directive for a Class II reusable surgical power tool. ISO 13485 alignment of the manufacturing quality management system provides recognised assurance for institutional procurement reviewers. Conformity declarations and technical documentation are available through Medigear.uk to support institutional approval at any level.

The E Series Brushless Multifunctional Drill Handpiece is a CE-certified, autoclavable surgical power tool featuring a brushless motor and quick-coupling attachment interface that supports drilling, reaming, oscillating saw work, and K-wire driving across joint arthroplasty, trauma, neurosurgery, and thoracic surgery settings. Its consistent motor performance, universal attachment compatibility, axial run-out of 0.05 mm, and low-noise operation make it a practical and versatile choice for hospital theatre procurement, B2B distributor catalogues, and multi-speciality instrument set consolidation programmes. ISO 13485-aligned compliance documentation and full CE conformity paperwork are available through the Medigear.uk procurement team to support institutional approval. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
