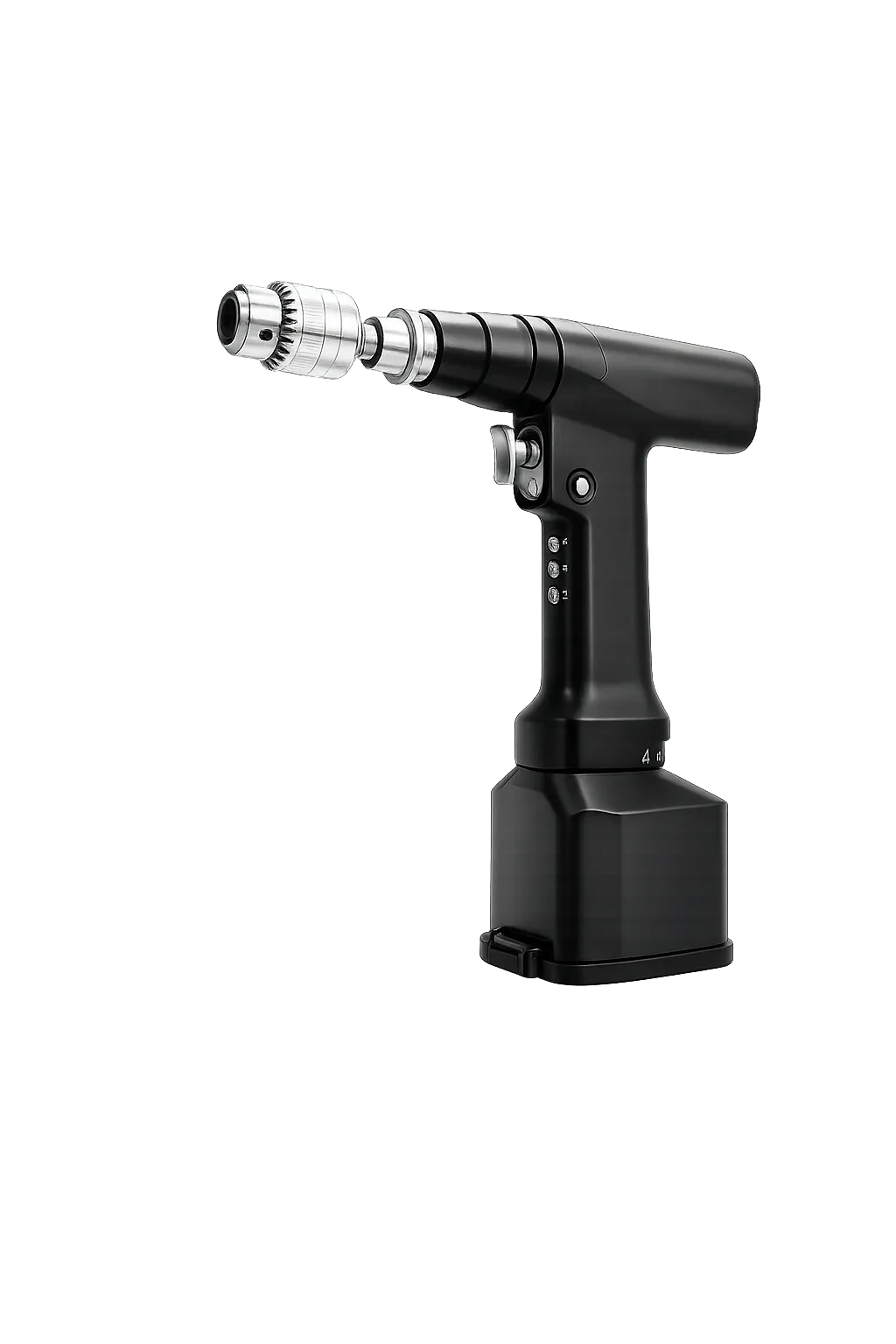

XC E-Series Acetabular Reaming Drill | Medigear.uk

General orthopaedic theatres performing primary total hip replacement require an acetabular reaming drill that delivers consistent, high torque at the controlled low speed needed to enlarge the acetabular socket progressively without geometric overrun. The E Series Acetabular Reaming Drill, available through Medigear.uk, meets this need with its brushless motor at 0 to 300 rpm and a universal grinder interface that accommodates any implant system's acetabular reamer without brand-specific adapters. CE Certification and ISO 13485-aligned documentation support the institutional approval requirements of hospital procurement teams, NHS trusts, and institutional buying frameworks.

In revision hip arthroplasty, where the acetabular socket must be prepared around failed or loose prosthetic components, the E Series brushless motor's consistent torque output across varying bone resistance is particularly valuable. The 300 rpm speed ceiling reduces the risk of overshooting the target diameter, and the variable trigger gives the surgeon real-time control as the final reamer diameter is reached. Medigear.uk can supply torque and run-out documentation for clinical governance review of the E Series in revision hip programmes.

Orthopaedic reconstruction teams undertaking elective primary total hip replacement benefit from the brushless motor's consistent performance across the many sterilisation cycles a busy elective hip programme generates. The E Series brushless motor maintains its output characteristics for significantly more autoclave cycles than brushed-motor equivalents, delivering a lower total cost of instrument ownership across the programme's lifespan. The complete set from Medigear.uk arrives ready for immediate CSSD commissioning.

B2B distributors supplying orthopaedic theatres can position the E Series Acetabular Reaming Drill as a premium brushless upgrade within a hip arthroplasty power tool catalogue alongside bone drills and oscillating saws. We offer volume pricing, OEM labelling, and full CE and ISO documentation through our Medigear.uk procurement team for distributors managing regulatory submissions.

Brushless Motor — Consistent Reaming Torque Across Hundreds of Autoclave Cycles

The brushless motor of the E Series Acetabular Reaming Drill eliminates carbon brush wear, which progressively degrades the torque consistency of brushed-motor designs through repeated high-temperature autoclave sterilisation cycles. For hospital programmes running high-volume elective hip lists in which the reaming drill is autoclaved daily, this translates into a substantially longer period of consistent operative performance before instrument replacement is required. Medigear.uk can confirm the brushless motor specification and estimated autoclave cycle lifespan from the manufacturer's technical documentation.

Controlled 0 to 300 rpm Low-Speed Reaming — Safe and Progressive Socket Enlargement

The 0 to 300 rpm speed range of the E Series is matched to the clinical demands of acetabular preparation, providing the rotational force to drive the grinder through dense cancellous bone while remaining below the speed at which frictional heat generation becomes a risk to bone viability and implant integration. Low-speed reaming allows the surgeon to feel changes in resistance through the handpiece as the socket approaches the target diameter and to stop reaming before overshooting in a single pass, thereby protecting the press-fit geometry that determines cup stability. The E Series's brushless motor maintains this torque consistency across the full 0 to 300 rpm range under variable bone resistance loads.

Universal Acetabular Grinder Compatibility — One Handpiece Across All Implant Systems

The standard drive interface of the E Series Acetabular Reaming Drill connects directly to acetabular grinder systems from any major orthopaedic implant manufacturer and to medullary cavity reamers, without requiring a brand-specific adapter. This compatibility allows a hospital to use the E Series handpiece across every hip arthroplasty case on its list, regardless of the implant system in use, eliminating the need to hold separate reaming drills for different surgical preference cards. Our Medigear.uk team can confirm interface compatibility with specific grinder systems before you place your order.

≤ 0.5 mm Diameter Run-Out — Hemispherical Socket Accuracy for Optimal Cup Seating

The E Series maintains a diameter run-out of 0.5 mm or less, ensuring the reamer tip deviates no more than 0.5 mm from the intended rotational axis during operation. This level of concentricity is the accepted tolerance for acetabular reaming drills. It ensures that the prepared socket closely matches the hemispherical geometry of each successive reamer size, which directly determines the contact area and initial press-fit between the prosthetic cup and the host bone. The run-out specification is confirmed in the E Series technical documentation available through Medigear.uk.

CE Certified and ISO 13485-Aligned — NHS-Ready Compliance for Hip Arthroplasty Procurement.

The E Series Acetabular Reaming Drill is CE-certified and manufactured to ISO 13485, meeting the compliance requirements of NHS trust procurement committees, hospital medical device approval panels, and government framework buying assessors. Medigear.uk holds the Declaration of Conformity and technical documentation ready to issue alongside the product, reducing the administrative preparation time for clinical governance submissions and enabling procurement teams to meet commissioning deadlines. For multi-instrument E Series procurement across bone drill, cannulate drill, and reaming drill, the Medigear.uk team can supply a consolidated compliance package.

Autoclavable Handpiece at 135°C — Integrated Into Standard CSSD Workflows

The E Series handpiece and all metal components are autoclavable at up to 135°C using high-temperature, high-pressure sterilisation once the NiMH battery is removed, integrating directly into the standard Class B CSSD reprocessing cycles used in hospital sterile services without special handling or cold-process sterilisation. The sterilising channel included in the set supports full internal handpiece sterilisation, and the validated protocol is available from Medigear.uk for sterile services departments.

Stepless Variable Speed Trigger — Real-Time Reaming Intensity Control

The proportional, stepless trigger of the E Series Acetabular Reaming Drill delivers smooth speed control from zero to 300 rpm without stepped transitions, allowing the surgeon to adjust reaming intensity in real time as bone density, socket geometry, and the proximity to the final target diameter change through the reaming sequence. Starting from zero allows the reamer to be positioned and seated in the socket before rotation begins, which is important for maintaining concentricity at the start of each reaming pass. The absence of pre-set speed bands gives the surgeon full tactile control throughout.

Complete Set in Aluminium Case — Theatre Ready From Goods Receipt

The E Series Acetabular Reaming Drill is supplied as a complete set in an aluminium carrying case containing the handpiece, battery, charger, sterilising channel, and drill chuck — all components required for immediate CSSD commissioning and operative deployment, without the need to source additional accessories. The aluminium case protects all components during transit and provides organised storage between operative sessions. Individual replacement components, including batteries, sterilising channels, and chuck accessories, are available from Medigear.uk for ongoing set maintenance.

OEM and Volume Supply — Brushless Upgrade for Distributor Hip Surgery Catalogues

The E Series Acetabular Reaming Drill is available through Medigear. UK for OEM configuration, volume pricing, and custom set composition, making it a premium catalogue product for B2B distributors, positioning a brushless-motor acetabular reaming drill within an orthopaedic hip surgery power tool range. We can provide white-label branding and regulatory documentation in different market formats, depending on order volume. The Medigear.uk business team provides CE and ISO documentation packages needed for distributor regulatory submissions.

Minimum Speed: 0 rpm — Variable Range From Rest for Controlled Reamer Engagement

The E Series Acetabular Reaming Drill starts from zero rpm, allowing the surgeon to position and seat the reaming head in the acetabular socket before any rotation begins. This zero-start characteristic prevents the reamer from skating across the cortical margin at the start of the reaming sequence. It ensures the concentricity of the first cutting pass is established from a stationary start.

Maximum Speed: 300 rpm — Accepted Ceiling for Safe Acetabular Socket Preparation

The 300 rpm upper limit is the clinically established ceiling for acetabular reaming, providing sufficient rotational force to drive the grinder through cancellous bone without the thermal and geometric risks associated with higher-speed reaming. This ceiling is consistent with the specification across this class of acetabular reaming drill. Confirm sustained torque at maximum speed with the Medigear.uk procurement team if high-resistance reaming applications are anticipated.

Total Speed Range: 0 to 300 rpm — Stepless Variable Control Through Full Reaming Sequence

The complete 0 to 300 rpm range is continuously variable through the trigger, providing proportional speed response without stepped transitions between pre-set speed bands. This stepless control allows the surgeon to modulate reaming intensity in real time as the socket progresses through a series of reamer sizes toward the final target diameter.

Motor Type: Brushless — Long-Life Consistent Output Under High Sterilisation Load

The brushless motor eliminates carbon brush wear, maintaining consistent torque and speed output over significantly more autoclave sterilisation cycles than brushed-motor equivalents. The extended lifespan is the main clinical and economic advantage of the E Series Acetabular Reaming Drill over the S Series equivalent, also available at Medigear.uk. Lower operational noise and less internal heat are secondary benefits.

Diameter Run-Out: ≤ 0.5 mm — Hemispherical Geometry Accuracy

The ≤ 0.5 mm diameter run-out specification defines the maximum deviation of the reamer tip from the intended rotational axis, which determines how accurately the prepared socket matches the hemispherical profile of the target reamer size. The specification is confirmed in the E Series technical documentation, available from Medigear.uk, for clinical engineering and institutional procurement review.

Drive Interface: Universal Acetabular Grinder and Medullary Cavity Reamer Compatible

The standard drive interface of the E Series connects to acetabular grinder systems and medullary cavity reamers from any major orthopaedic implant manufacturer without a brand-specific adapter. This universal compatibility is confirmed as a standard feature of the E Series and applies to all current major implant system grinder formats. Confirm specific system compatibility with Medigear.uk before ordering.

Direction Control: Forward and Reverse Switch on Handpiece

An integrated direction switch enables forward and reverse rotation without releasing the grip. Reverse is used for controlled reamer withdrawal at the end of each pass and for instrument extraction when the reaming head binds against the socket rim. The switch requires deliberate actuation.

Battery: 14.4 V NiMH — Non-Autoclavable, Must Be Removed Before Sterilisation

The 14.4 V NiMH battery must be removed before autoclaving the handpiece. It is charged via the included charger in approximately three hours. Replacement batteries are available as spare parts through Medigear.uk.

Handpiece Material: Stainless Steel — Autoclavable at 135°C

The handpiece is manufactured from stainless steel and is autoclavable at up to 135°C, using high-temperature, high-pressure sterilisation with the battery removed. Stainless steel construction is the standard for reusable Class II surgical power tools. It supports the operational lifespan of the E Series handpiece through the daily sterilisation demands of a busy hip arthroplasty programme.

Sterilisation: Handpiece Autoclavable at 135°C, Battery Separate

The handpiece is autoclavable at up to 135°C once the battery is removed. The sterilising channel in the set supports internal bore sterilisation. The validated protocol is in the user manual and available from Medigear.uk for CSSD departments.

Set Contents: Handpiece, Battery, Charger, Sterilising Channel, Chuck, Aluminium Case

The complete E Series Acetabular Reaming Drill set includes all components required for immediate clinical deployment. Individual replacement items are available through Medigear.uk for ongoing instrument maintenance and set replenishment over the handpiece operational lifespan.

Certification: CE Certified, ISO 13485-Aligned Manufacturing

CE Certification confirms that the E Series Acetabular Reaming Drill meets the essential requirements of the applicable Medical Device Directive for a Class II reusable powered surgical instrument. ISO 13485 quality management system alignment provides recognised assurance for institutional procurement reviewers. Full conformity documentation is available from Medigear.uk.

The E Series Acetabular Reaming Drill is a CE Certified, autoclavable orthopaedic power tool delivering brushless motor performance from 0 to 300 rpm for primary hip arthroplasty, revision joint reconstruction, and elective orthopaedic surgery settings. Its consistent high-torque brushless output, universal grinder compatibility, ≤ 0.5 mm diameter run-out, and long autoclave cycle lifespan make it a reliable and durable choice for hospital theatre procurement, B2B distributor catalogues, and institutional hip surgery programmes. ISO 13485-aligned compliance documentation and full CE conformity paperwork are available through the Medigear.uk procurement team to support institutional approval. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
