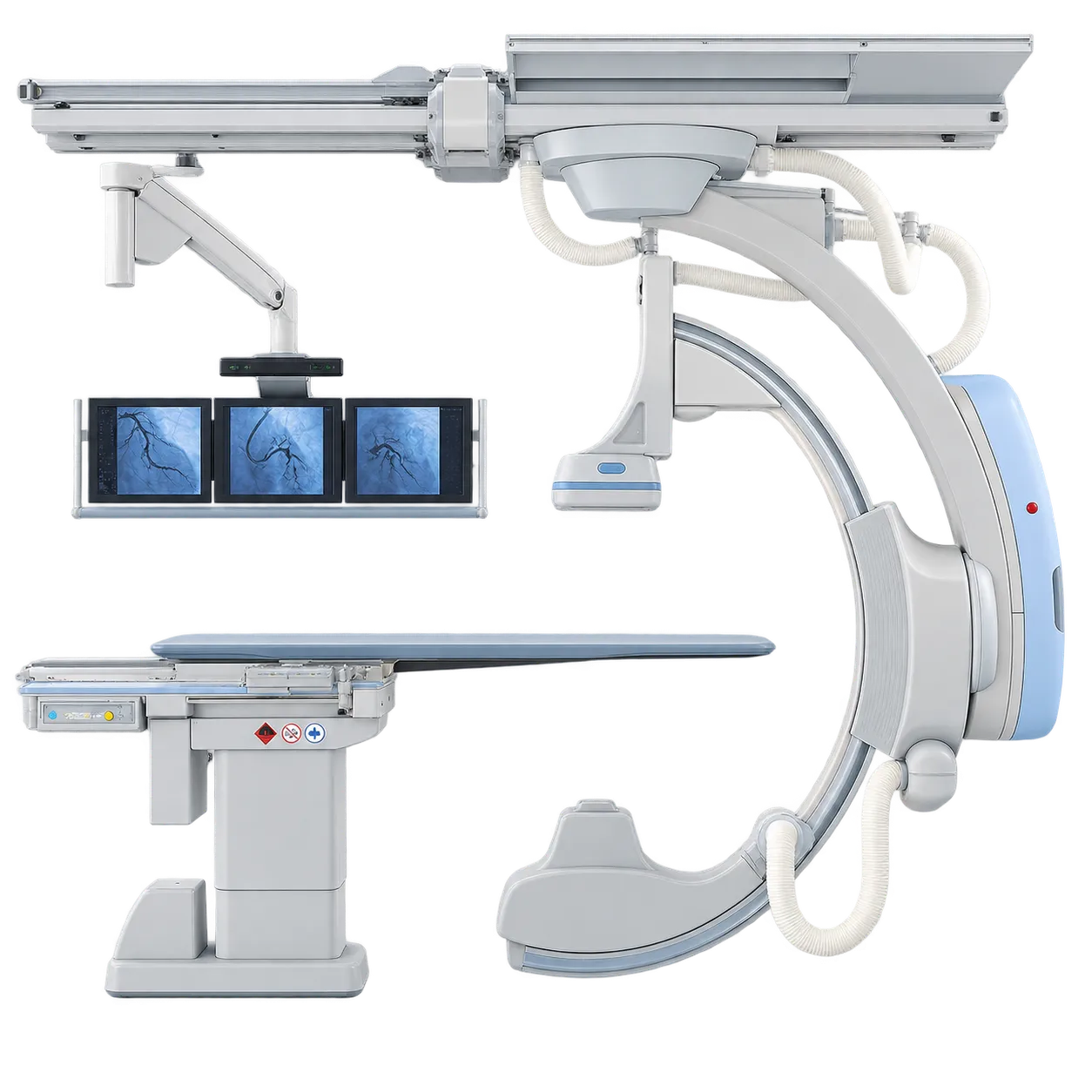

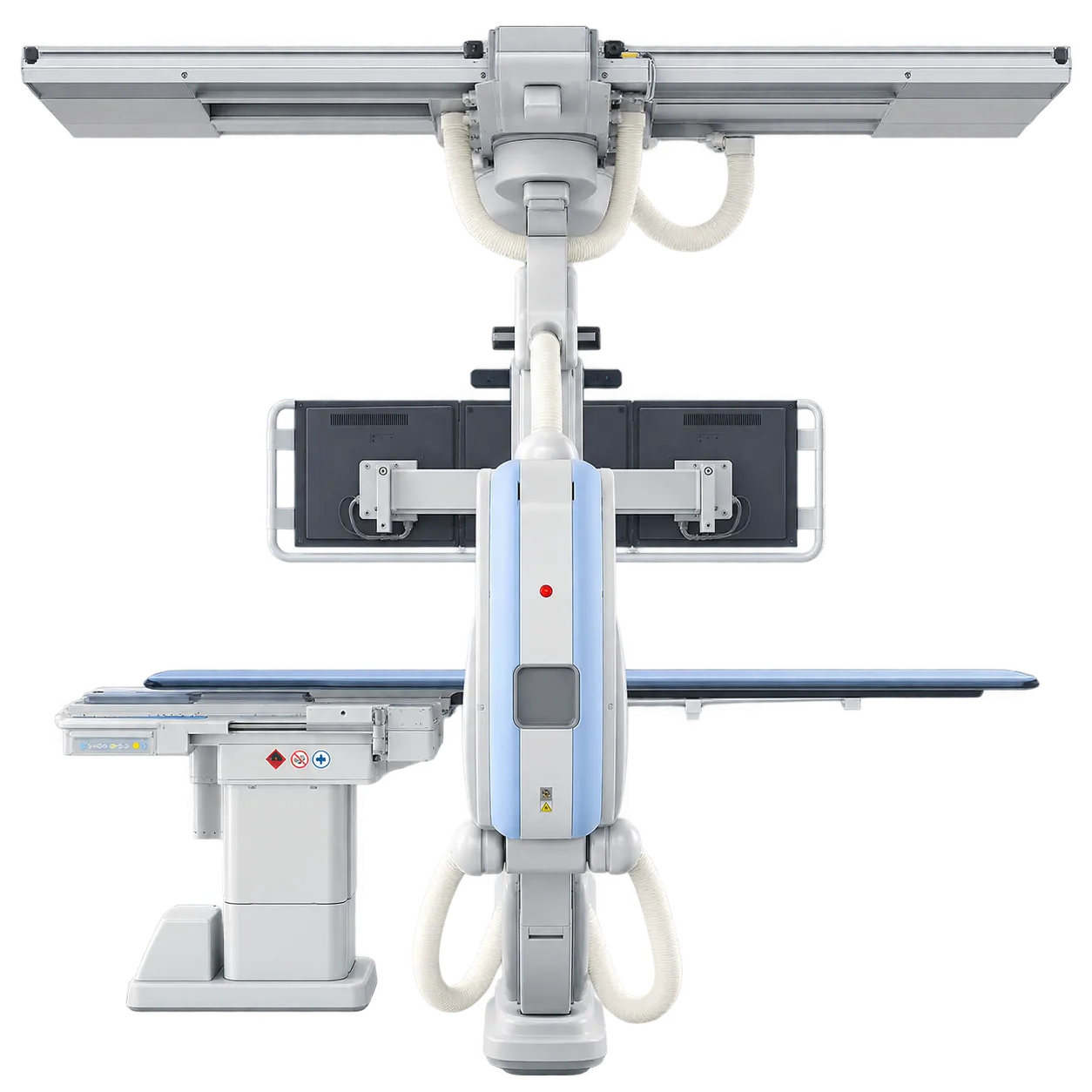

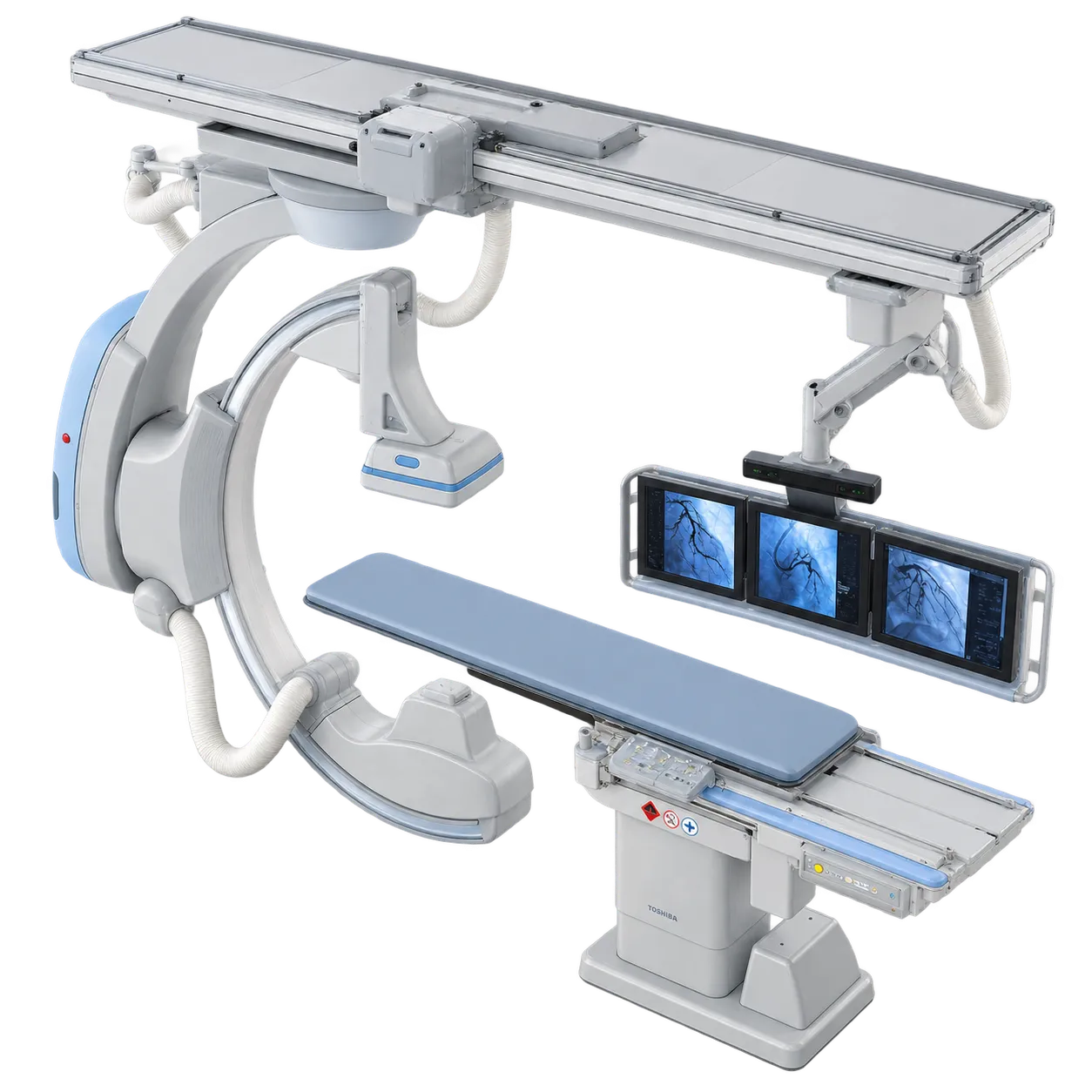

TOSHIBA Infinix (2011)

The Floor Around the Table Stays Clear.

In a working interventional room the contested resource is not the ceiling, it is the floor. Anaesthetic machines, ultrasound, perfusion equipment, scrub trolleys and a team of people all compete for the space around the patient. A ceiling-suspended positioner puts the entire support structure overhead, leaving access clear on every side and allowing the C-arm to be parked away from the table altogether. This Infinix was built in 2011, and Medigear.uk confirms the tube position, detector condition and suppo

Sections

Cath Lab Systems

Categories

Cardiology Equipment

Condition

Refurbished

Year

2011

Origin

Poland

Seller Type

Certified Professional Seller

CE & ISO Certified

Global Shipping

Supplier: Medigear

The mounting arrangement of an interventional positioner determines how the room functions during a case, and it deserves more attention than it usually receives.

An interventional laboratory is a crowded space. Beyond the patient and the imaging system there is an anaesthetic machine and its operator at the head, frequently ultrasound, sometimes perfusion equipment, scrub trolleys, drug and device trolleys, and a team that on a complex case may run to six or eight people who all need to reach the patient or each other. The floor area immediately around the table is the resource everything competes for, and it is finite.

A ceiling-suspended positioner removes the largest single competitor for that space. The support structure runs overhead on tracks, so there is no column or base occupying floor area beside the table. Access to the patient is available from every side rather than being interrupted where the positioner stands. And because the C-arm travels on ceiling tracks, it can be moved entirely clear of the table during the phases of a procedure when imaging is not required, which a floor-mounted system cannot do to the same extent.

Three situations make that difference material rather than merely convenient. The first is head-end access, which matters wherever anaesthesia is involved: the anaesthetist needs to reach the airway without negotiating a positioner base, and on longer or higher-risk cases that access is not negotiable. The second is any procedure with a large team around the table, where the imaging equipment competing for floor space directly limits how many people can work effectively. The third is hybrid working, where a room serves both interventional and surgical purposes and needs to be reconfigured between them, which ceiling suspension makes considerably easier because the imaging system can be moved out of the working field rather than worked around.

The honest counterpart is the siting requirement, and Medigear.uk raises it early because it is the element most likely to constrain where the system can go. Ceiling suspension transfers the load into the building structure, which means the ceiling and its supporting steelwork must be assessed and, in many cases, reinforced. Track layout has to be planned against the room geometry, and the height available above the finished ceiling determines what is possible. These are solvable engineering questions rather than obstacles, but they are considerably more involved than bolting a positioner to a floor slab, and a buyer should know that before committing to a room.

The tube position is the figure Medigear.uk establishes first on any interventional system, because tube life determines when a room becomes expensive to run. Interventional work imposes an unusually heavy thermal duty cycle, with sustained fluoroscopy through long procedures punctuated by repeated high-output acquisition runs. Where a tube has been recently replaced that is a substantial advantage and is stated as such; where it has not, the age and usage are established so a buyer can budget rather than be surprised. On this unit the tube year and usage are confirmed at enquiry.

The flat detector is assessed on its own evidence, since detector condition sets image quality for the whole system and cannot be corrected elsewhere in the chain. Calibration status, dead pixel position and service history are confirmed against the unit.

The support position deserves specific mention on this platform. The Toshiba medical imaging business passed to Canon, and the range is now supported under Canon Medical rather than the original name. That is a favourable outcome for owners of Toshiba-badged equipment, since the line moved to a major manufacturer with a continuing commitment to imaging rather than being discontinued or dispersed. It does mean that a buyer searching for support under the original name will reach an incomplete picture, so Medigear.uk identifies the current route, parts availability and service arrangements rather than leaving that to be worked out later.

A 2011 build places this on an earlier platform generation than current interventional systems, without the dose management architecture associated with later designs, and Medigear.uk states that plainly so the room is matched to the intended work. Radiation compliance on an interventional room is heavier than on any other X-ray modality and is raised in full: room shielding, ceiling and table-mounted protection, staff dosimetry, notification, radiation protection adviser appointment, local rules, employer's procedures, operator training, the critical examination required before clinical use, and dose area product recording with audit against diagnostic reference levels.

Because this is a fixed installation with a structural mounting requirement, de-installation, transport, ceiling assessment, installation and re-commissioning form a substantial project, and Medigear.uk coordinates them as a single sequence.

Cardiac, vascular and interventional procedures are what a flat detector laboratory of this configuration serves. All clinical judgement, including whether a procedure is indicated, how it is conducted and what dose is appropriate, remains with the clinical team, and Medigear.uk supplies configuration and condition detail rather than clinical guidance.

Procedures involving anaesthesia benefit most directly from the mounting arrangement, since unobstructed head-end access is a practical requirement rather than a preference, and a ceiling-suspended positioner leaves it clear.

Complex cases with large teams gain from the floor area the arrangement preserves, because the number of people who can work effectively around a patient is limited by the space available to reach them.

Hybrid working suits ceiling suspension particularly well, since a room serving both interventional and surgical purposes must be reconfigured between them, and an imaging system that travels clear of the working field is far easier to accommodate than one fixed beside the table.

Vascular and peripheral work benefits from the positioner range that ceiling tracks allow along the length of the patient, subject to the track configuration fitted.

Services considering this platform should treat the ceiling assessment as part of the purchase rather than a subsequent detail, since the structural requirement determines which rooms can accept the system at all. Medigear.uk establishes it at enquiry.

Floor Access Preserved on Every Side

No column or base beside the table means the patient can be reached from any direction, which is what determines how many people can work effectively during a complex case.

The C-arm Can Be Parked Clear

Because the positioner travels on ceiling tracks it can be moved entirely away from the table when imaging is not required, which a floor-mounted system cannot match.

Unobstructed Head-End Access

Where anaesthesia is involved the anaesthetist must reach the airway without negotiating a positioner base, and on longer or higher-risk cases that access is not negotiable.

Suited to Hybrid Working

A room serving both interventional and surgical purposes must be reconfigured between them, and an imaging system that travels out of the working field is considerably easier to accommodate.

The Siting Requirement Raised Early

Ceiling suspension transfers load into the building structure, so ceiling and steelwork assessment, track layout and height verification are established at enquiry rather than during planning, since they determine which rooms can accept the system.

The Tube Position Established First

Interventional duty cycles are heavy and tube life determines when a room becomes expensive to run, so tube year and usage are confirmed before an offer rather than left to be discovered.

The Detector Judged on Records

Calibration status, dead pixel position and service history confirmed against the unit, since detector condition sets image quality for the whole system.

A Support Route That Continued

The Toshiba medical imaging business passed to Canon and the range is supported under Canon Medical, so the platform moved to a major manufacturer rather than being discontinued. Medigear.uk identifies the current route and parts position.

The Room Assessed as a Room

Positioner, table, monitor geometry, generator, acquisition modes, licences and interfaces established individually rather than as a single inventory line.

The Full Radiation Picture Raised

Shielding, ceiling and table protection, staff dosimetry, adviser appointment, local rules, training, critical examination and dose recording with audit, all addressed at enquiry.

Ceiling-Suspended Interventional Platform

A flat detector angiography system whose positioner travels on ceiling tracks rather than occupying floor space beside the table.

Year of Manufacture: 2011

An earlier platform generation than current interventional systems, bearing on software, dose architecture and support lifecycle position.

Ceiling Track Configuration

Track layout and travel range confirmed against the unit, since these determine positioner reach along and around the table.

Ceiling Load and Structural Requirement

Assessed at enquiry, since ceiling suspension transfers load into the building and often requires reinforcement.

X-ray Tube Year and Usage

Established before an offer, since tube life determines when an interventional room becomes expensive to run.

Flat Detector

Size, calibration status, dead pixel position and service history confirmed against the unit.

Table Configuration

Table specification, movement range and condition assessed, as these determine how the room functions alongside the positioner.

Monitor Configuration

Arrangement and specification confirmed, since display provision is part of how an interventional room works.

Generator and Acquisition Modes

Confirmed against the unit, since these determine which procedures the room supports.

Software Version and Licence List

Enabled functions and acquisition packages confirmed rather than inferred from the model.

Dose Recording and Audit

Dose area product recording and audit arrangements established, since interventional procedures attract close scrutiny against diagnostic reference levels.

Haemodynamic and Injector Interfaces

Integration position established against the recording equipment and injector a service already operates.

Support Route and Parts Position

Current arrangements under Canon Medical confirmed, along with parts availability and engineer familiarity.

Installation Status and Transport

Whether the room is currently installed or already removed, established at enquiry, since de-installation, ceiling works, transport and re-commissioning form a substantial project.

Radiation Compliance and Shielding

Medigear.uk addresses room shielding, ceiling and table-mounted protection, staff dosimetry, notification, adviser appointment, local rules, employer's procedures, operator training and the critical examination required before clinical use.

This Toshiba Infinix was built in 2011 with a ceiling-suspended positioner, and that mounting arrangement is what most affects how the room will work in practice. An interventional laboratory is a crowded space in which anaesthetic equipment, ultrasound, trolleys and a team of people all compete for the floor area around the patient, and a ceiling-mounted system removes the largest single competitor for it. Access is available from every side, there is no base to negotiate at the head of the table where the anaesthetist works, and the C-arm can travel entirely clear of the table when imaging is not required, which suits complex cases with large teams and hybrid rooms serving both interventional and surgical purposes. The counterpart is that the load moves into the building, so ceiling and steelwork assessment, track layout and height verification determine which rooms can accept the system, and Medigear.uk raises those at enquiry rather than during planning. The tube year and usage are established first, since interventional duty cycles are heavy and tube life governs running cost, and the detector is judged on calibration, dead pixel position and service history. The platform is supported under Canon Medical following the transfer of the Toshiba imaging business, and Medigear.uk identifies the current route and parts position, coordinates de-installation, ceiling works, transport and re-commissioning, and raises the full radiation compliance picture. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.

FAQ

Frequently Asked Questions

Everything buyers need to know about sourcing medical equipment through MediGear.

It is a fixed interventional angiography system with a ceiling-suspended positioner, used for cardiac, vascular and interventional procedures. This unit was built in 2011.

Floor space around the patient. There is no column or base beside the table, so access is available from every side, and because the C-arm travels on ceiling tracks it can be moved entirely clear of the table when imaging is not required.

Where anaesthesia is involved and the anaesthetist needs unobstructed head-end access; where a large team works around the table on complex cases; and in hybrid rooms serving both interventional and surgical purposes, where the imaging system needs to be moved out of the working field rather than worked around.

Siting. Ceiling suspension transfers the load into the building structure, so the ceiling and supporting steelwork must be assessed and often reinforced, track layout planned against the room geometry, and the height above the finished ceiling checked. These are solvable engineering questions but considerably more involved than a floor-mounted installation.

It is the figure Medigear.uk establishes first, because interventional duty cycles are heavy and tube life determines when a room becomes expensive to run. The tube year and usage on this unit are confirmed at enquiry so a buyer can budget rather than be surprised.

The Toshiba medical imaging business passed to Canon, and the range is supported under Canon Medical. That is a favourable outcome, since the line moved to a major manufacturer with a continuing imaging commitment rather than being discontinued. Medigear.uk identifies the current route, parts availability and service arrangements.

No. A 2011 build is an earlier generation than current interventional systems and does not carry the dose management architecture of later designs. Medigear.uk states that so the room is matched to the intended work rather than oversold.

Assessed on its own evidence. Detector condition sets image quality for the whole system and cannot be corrected elsewhere, so calibration status, dead pixel position and service history are confirmed against the unit.

Established rather than assumed, against the recording equipment and injector a service already operates, before order rather than at commissioning.

More than a floor-mounted room. Ceiling and steelwork assessment, track layout, height verification and any structural reinforcement, alongside shielding, de-installation and transport where the system is currently installed, all coordinated as a single project.
