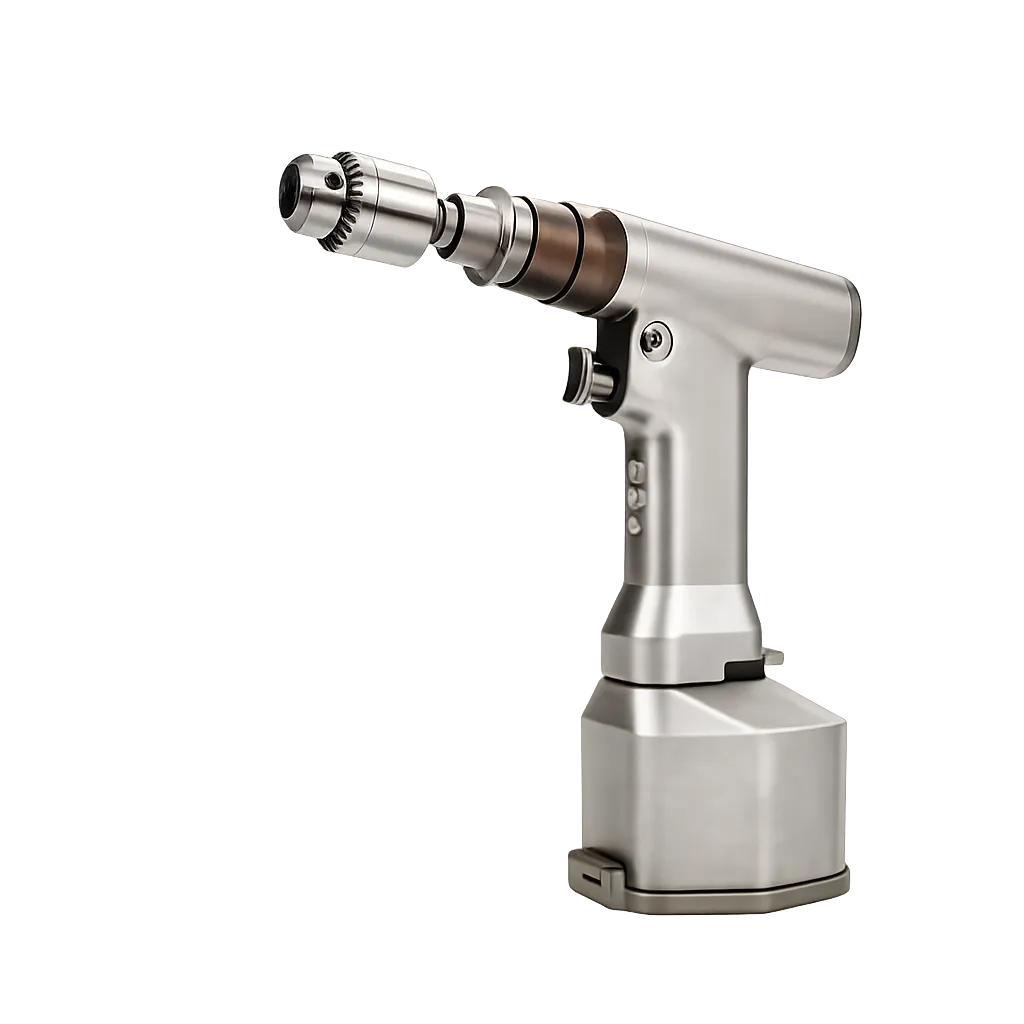

XC S-Series Cannulate Drill

General orthopaedic trauma wards rely on the cannulate drill for K-wire and guidewire-based fixation techniques that are central to contemporary fracture management protocols. The S Series Cannulate Drill, sourced through Medigear.uk, delivers the 0 to 1200 rpm variable speed range and 4.0 mm through-bore cannula that trauma teams need to advance drill bits precisely over a pre-positioned guide pin without deviating from the intended fixation axis. Its CE Certification and ISO 13485-aligned documentation meet the procurement audit requirements of hospital trusts managing medical device approvals.

In emergency trauma and acute fracture theatres, the cordless battery configuration of the S Series Cannulate Drill eliminates dependence on pneumatic supply lines, allowing the instrument to function in any surgical environment without infrastructure constraints. The detachable drill chuck system means the same handpiece can switch between cannulated work and standard cortical drilling within a single procedure, reducing the number of instruments required on the tray. Medigear.uk supplies the drill as a complete set with two batteries, a charger, sterilising channels, and an aluminium case for immediate theatre deployment.

Orthopaedic reconstruction teams performing intramedullary nail fixation of long bone fractures rely on a cannulated drill that can hold the guidewire concentrically and advance the drill bit along the medullary canal without lateral deviation. The S Series achieves this through the 4.0 mm centre bore of the cannula, combined with precise chuck concentricity, which minimises axial runout during reaming passes. The forward- and reverse-direction function also supports interlocking screw insertion at distal nail locking sites.

If you supply trauma theatres and specialist orthopaedic units at institutional volume, you can access bulk pricing and CE and ISO documentation from the Medigear.uk procurement team. The aluminium case packaging supports clean logistics from goods receipt through sterile services, and the universal-voltage charger eliminates the need for regional power accessories.

4.0 mm Centre Bore Cannula — Guidewire Drilling Precision for Trauma Fixation

The 4.0 mm hollow cannula running through the S Series handpiece is the feature that defines this drill's clinical value in trauma surgery. By allowing a K-wire or guide pin to remain in position inside the bore while the drill advances over it, the cannula constrains the bit to the exact trajectory established by the guidewire, eliminating the angular deviation that occurs when drilling freehand through dense or curved cortical surfaces. This precision is directly relevant to intramedullary nail preparation, cannulated screw placement in femoral neck and ankle fractures, and any fixation technique where drill path accuracy determines implant alignment. Medigear.uk stocks the S Series with this cannula specification as a standard feature, not an attachment.

Detachable Drill Chuck — One Handpiece, Two Drilling Modes

The detachable chuck system converts the S Series from a cannulated guidewire-over drill into a standard 0.8 to 8.0 mm keyed chuck drill without requiring a separate handpiece on the instrument tray. This dual-mode capability reduces the number of powered instruments in a trauma set, simplifying tray management, lowering the sterilisation load, and reducing per-case equipment costs for procurement teams managing instrument set economics. For theatre staff, switching between modes is a straightforward mechanical action that does not interrupt the operative flow. The chuck accommodation range of up to 8.0 mm covers all standard twist drill bits and wires used in trauma plating and nailing systems.

CE Certified Compliance Ready for Hospital and Institutional Procurement

The S Series Cannulate Drill carries CE Certification confirming conformity with the essential requirements of the applicable Medical Device Directive for a Class II powered surgical instrument. Combined with ISO 13485-aligned manufacturing quality management, this certification baseline meets the compliance expectations of hospital procurement committees, NHS trust medical device approval panels, and government buying frameworks. Medigear.uk holds the Declaration of Conformity and technical documentation ready to supply alongside the product, reducing the administrative preparation time for clinical governance teams completing procurement submissions.

Variable 0 to 1200 rpm Stepless Speed — Precise Control Across All Bone Types

The full 0 to 1200 rpm variable-speed range, delivered via a stepless trigger with no intermediate speed steps, gives the surgeon real-time control over drilling intensity as bone density and tissue characteristics change along the drill path. This matters in cannulated procedures where the bit must transition from cortical entry through the isthmus into the medullary canal, each requiring different speed settings to optimise cutting efficiency while managing frictional heat. The absence of pre-set speed bands means the surgeon adjusts instinctively rather than stopping to change modes, maintaining continuous operative focus throughout the drilling sequence.

Dual-Battery System Supports Continuous Surgical Scheduling

Two 14.4 V, 1800 mAh batteries are included with every S Series Cannulate Drill set, providing a battery-switching system in which one battery charges while the other powers the handpiece via the active case. A full charge cycle of approximately two hours on the included universal charger means a battery depleted during one procedure is fully restored before the next case begins on any standard surgical list. The included battery sterilising channels ensure that both batteries can be appropriately reprocessed between procedures, maintaining infection control compliance throughout the rotation cycle.

Autoclavable to 135°C — Integrated Into Standard CSSD Workflows

The S Series Cannulate Drill handpiece, chuck, and accessories are validated for high-temperature, high-pressure autoclave sterilisation at up to 135°C, the cycle parameter used in hospital sterile services for Class B surgical instrument reprocessing. This means the drill integrates directly into existing instrument sterilisation workflows without special handling, cold-process sterilisation agents, or dedicated reprocessing infrastructure. Sterilising channels for the cannula bore and battery are included in the set, ensuring that internal surfaces meet infection-control requirements. The Medigear.uk team can provide validated sterilisation protocol documentation to sterile services departments on request.

Aluminium Case Set Configuration — Theatre-Ready From Goods Receipt

The S Series Cannulate Drill is supplied in a durable aluminium carrying case containing the handpiece, two batteries, a charger, sterilising channels, and accessories, so the complete working configuration is available immediately upon unpacking without the need to source additional components from separate suppliers. The aluminium case protects the instrument during transit and storage, supports organised presentation for pre-operative set checks, and can be used as a sterilisation container in facilities where case-based instrument processing is standard practice. This completeness of supply is a practical advantage for theatre managers and procurement teams commissioning new facilities or expanding existing trauma sets through Medigear.uk.

Forward and Reverse Rotation — Versatile Intraoperative Control

The integrated direction switch on the S Series handpiece allows the surgeon to shift between forward and reverse rotation without releasing the grip or handing the instrument to a scrub nurse, which is a material operational advantage during intramedullary nail procedures where K-wire manipulation, drill bit extraction from binding bone, and interlocking screw driving require frequent direction changes. The reverse function is also used to back out a drill bit that has contacted the far cortex before breakthrough, and in wire removal at the end of the provisional fixation phases. The switch position is designed for thumb operation from the standard pistol grip, requiring deliberate actuation to prevent accidental activation.

Government Supply Ready Documentation for B2B and Institutional Buyers

For distributors and procurement teams supplying into public-sector health frameworks, having a complete supplier documentation package—CE Declaration of Conformity, ISO 13485 alignment confirmation, sterilisation validation references, and technical data sheets—is a procurement requirement before a product can be approved for use. Medigear.uk is set up to support this documentation workflow, with paperwork ready and available at the point of order to reduce the time between procurement decision and device deployment on a theatre list.

Minimum Speed: 0 rpm — Full Variable Range From Rest

The S Series Cannulate Drill starts at zero rpm with the trigger at rest, enabling the surgeon to initiate bone contact without a preset minimum engagement speed. This is particularly valuable in cannulated drilling, where the bit must be accurately seated over a guidewire at the cortical surface before speed is increased, and where an engagement speed above zero would cause the bit to spin and potentially displace the K-wire before axial pressure is established. The zero-start capability is a standard expectation for surgical power tools used in precision guidewire techniques.

Maximum Speed: 1200 rpm — Sustained Drilling Power

The S Series reaches a maximum of 1200 rpm, which is the standard operating ceiling for orthopaedic cannulate drills used in trauma and intramedullary procedures. This speed supports efficient penetration through cancellous bone layers during reaming and interlocking preparation while remaining within the thermal safety range for standard cannulated bone drilling. For applications requiring higher-speed reaming or adjacent drilling tasks, the detachable chuck configuration can accept flexible reamers and other attachments; confirm extended compatibility with the Medigear.uk procurement team.

Total Speed Range: 0 to 1200 rpm Stepless Variable Control

The complete 0 to 1200 rpm range is continuously variable through the trigger, providing proportional speed response across the full rpm span without stepped transitions. This means a single trigger movement from rest to full compression sweeps the entire working range, which is the preferred response characteristic for surgeons managing variable resistance along a drill path through multiple bone layers. Stepless control is a defined quality marker in the clinical specification of cannulate drills used in trauma fixation and is confirmed on the S Series as supplied through Medigear.uk.

Motor System: Single High-Output Motor, 14.4 V Drive

The S Series Cannulate Drill is driven by a single high-output motor powered by a 14.4 V rechargeable battery, providing consistent torque across the full speed range without the performance drop-off that occurs on lower-voltage platforms as the battery discharges. The motor is sealed within the stainless steel handpiece body and protected from the autoclave environment by the handpiece's construction. Please confirm the output power specifications with the Medigear.uk procurement team using the manufacturer's technical datasheet for formal institutional review.

Battery: 14.4 V, 1800 mAh Rechargeable — Two Included.

Two 14.4 V batteries with a capacity of 1800 mAh are supplied in every S Series Cannulate Drill set, each providing sufficient runtime for continuous operative use through a standard trauma procedure. The battery chemistry supports a two-hour charge cycle with the included charger, and battery health degrades predictably with repeated charge cycles, as expected for this class of rechargeable surgical tool. Replacement batteries are available as spare parts through Medigear.uk, and each battery includes a dedicated sterilising channel for autoclave reprocessing.

Cannula Centre Bore: 4.0 mm — K-Wire and Guide Pin Through-Pass

The 4.0 mm hollow cannula is the clinical centrepiece of the S Series Cannulate Drill, providing the internal diameter through which a standard guidewire or K-wire passes during drilling. This bore diameter is the established standard for cannulated drills used in intramedullary nail, cannulated screw, and percutaneous K-wire fixation procedures across the major orthopaedic trauma systems. The concentricity between the cannula centre and the chuck jaw axis is precision-engineered to minimise axial runout, which directly determines how accurately the drill follows the guidewire during bone penetration.

Detachable Drill Chuck: 0.8 to 8.0 mm Gripping Range

The detachable drill chuck accepts instruments with shaft diameters from 0.8 to 8.0 mm, covering the full working range of K-wires, standard twist drill bits, pin drivers, and guide pin adapters used in orthopaedic trauma practice. The detachable design allows the chuck to be removed from the handpiece entirely, converting the drill to pure cannulated mode with the through-bore accessible, or reattached for conventional keyed-chuck drilling without the cannula constraint. The chuck key is included in the standard set to provide the clamping torque needed for secure bit retention in high-resistance cortical bone.

Direction Control: Forward and Reverse Switch on Handpiece

An integrated forward-and-reverse switch is positioned on the handpiece for thumb operation from the standard pistol grip, enabling the rotation direction to change without altering the surgical grip or passing the instrument. This feature is used during intramedullary procedures for K-wire extraction, drill bit withdrawal from deep cortical holes, and interlocking screw insertion and backing. The switch requires deliberate actuation to prevent unintended direction changes during active drilling, and no tool or secondary action is required to operate it.

Frame and Handpiece Material: Stainless Steel Construction

The S Series Cannulate Drill handpiece is constructed from high-grade stainless steel, providing corrosion resistance through repeated high-temperature autoclave cycles and mechanical durability under the forces applied during trauma drilling. Stainless steel is the standard material expected for reusable Class II surgical power tools. It supports the instrument's operational lifespan across the sterilisation and use cycles typical of a busy trauma theatre. The handpiece construction also allows external surface wipe-down and inspection between sterilisation cycles without surface degradation.

Sterilisation: High-Temperature High-Pressure Autoclave to 135°C

All components of the S Series Cannulate Drill are rated for autoclave sterilisation at up to 135°C using high-temperature, high-pressure cycles aligned with Class B reprocessing standards used in hospital CSSD operations. Sterilising channels for both the cannula bore and the battery compartment are included to ensure full sterilisation of the internal surfaces. The validated sterilisation protocol, including cycle parameters and drying requirements, is supplied with the device and can be forwarded to sterile services departments by the Medigear.uk team on request.

Charger: 110 to 240 V Universal Input Compatibility

The battery charger included with every S Series Cannulate Drill set operates on a universal 110 to 240 V input at 50 to 60 Hz, making it compatible with standard mains power supplies across surgical facilities without requiring a voltage converter or region-specific adapter. This is a logistical advantage for distributors supplying into multiple markets and for institutions with mixed electrical infrastructure across their operating theatre estate. The charger is included in the aluminium set case and does not require separate sourcing or procurement.

Noise Level: Below 65 dB During Operation

The S Series Cannulate Drill operates below 65 dB under standard drilling conditions, which is within the ambient noise range of an active surgical environment and does not require supplementary hearing protection for theatre teams under standard occupational health guidelines. Lower operational noise also reduces cumulative acoustic fatigue during multi-procedure lists with extended drilling sequences, a practical benefit for surgical teams working long trauma lists. Confirm noise level at specific operating speeds with the Medigear.uk procurement team if noise assessment is required for an institutional health and safety evaluation.

Set Contents: Handpiece, Two Batteries, Charger, Sterilising Channels, Aluminium Case

Every S Series Cannulate Drill set is supplied complete and ready for immediate clinical commissioning, containing the handpiece, two 14.4 V batteries, the electrical charger, sterilising channels for the cannula and battery, and an aluminium carrying and storage case. Individual components, including batteries, sterilising channels, and chuck accessories, are available as replacement items through Medigear.uk, allowing the set to be maintained and replenished without replacing the complete instrument configuration.

Certification: CE Certified, ISO 13485-Aligned Manufacturing

CE Certification confirms that the S Series Cannulate Drill has been assessed against the applicable Medical Device Directive requirements and found to meet the essential safety and performance standards for a powered Class II surgical instrument. Aligning the manufacturing quality management system with ISO 13485 provides a recognised framework for institutional procurement teams and clinical governance reviewers. Conformity declarations, technical files, and audit-ready documentation packages are available through Medigear.uk to support approval processes at any level of institutional scrutiny.

The S Series Cannulate Drill is a CE Certified, autoclavable orthopaedic power tool designed specifically for K-wire guided drilling, intramedullary nail fixation, and cannulated screw technique across trauma and reconstructive surgery settings. Its 4.0 mm centre-bore cannula, detachable drill chuck, variable 0 to 1200 rpm motor, and dual-battery system make it a reliable and adaptable choice for hospital trauma theatres, B2B distributor supply, and volume procurement frameworks. ISO 13485-aligned compliance documentation and full CE conformity paperwork are available from the Medigear.uk procurement team to support institutional approval processes at any level. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
