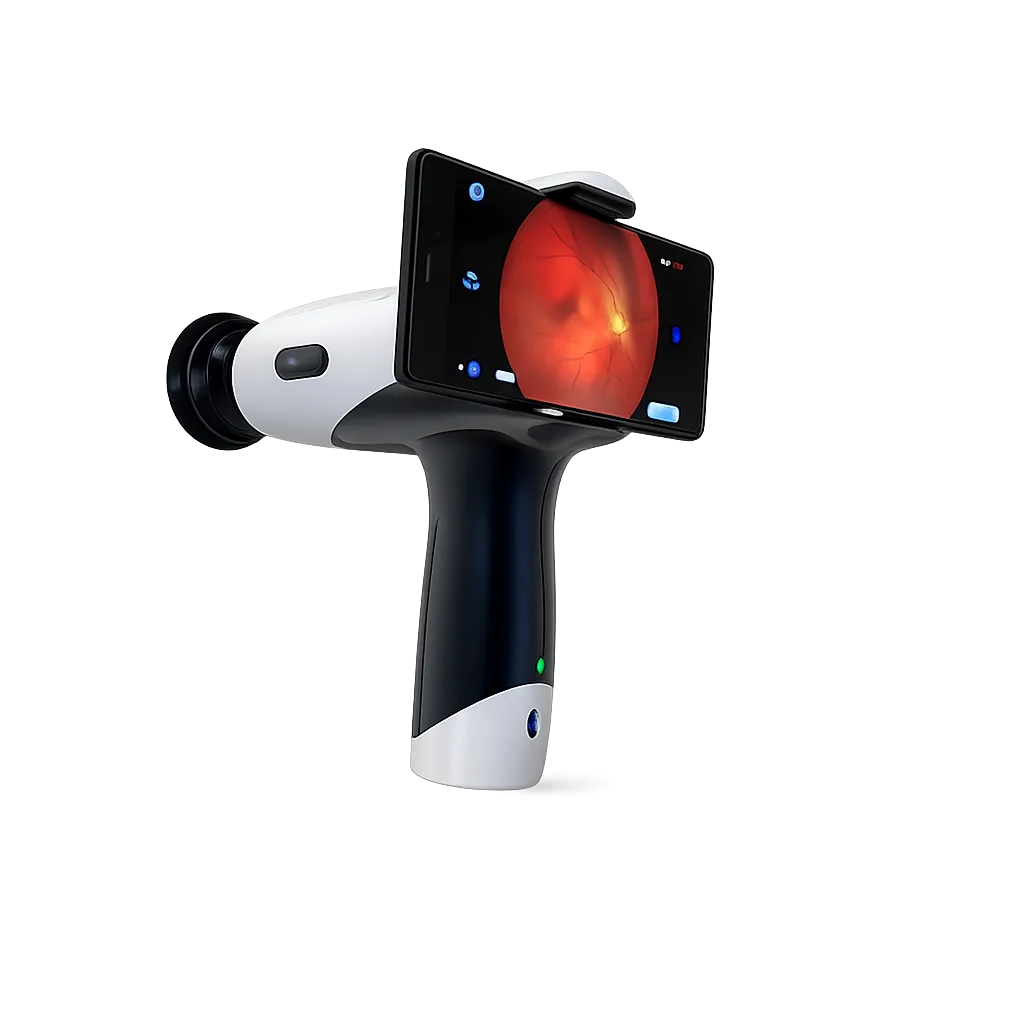

nun+ Fundus Camera WFC-01

NHS ophthalmology departments, optometry practices, and diabetic retinopathy screening services represent the primary procurement context for the nun+ Fundus Camera WFC-01. The non-mydriatic design eliminates the need for pharmacologic pupil dilation, thereby supporting faster patient throughput in high-volume screening clinics and reducing patient discomfort and post-examination visual disturbances associated with dilating drops. The handheld, smartphone-paired format supports portable screening in community settings, GP surgeries, and mobile screening units where a fixed fundus camera installation is not practical. Medigear.uk supplies the WFC-01 and can provide NHS procurement documentation.

Community and primary care optometry services benefit from the WFC-01's wide field of view and broad diopter range, which support retinal examination across diverse patient refractive states without requiring multiple lens attachments or extended fitting procedures. The Android smartphone application enables immediate review of captured images during the consultation, supporting same-visit clinical decision-making and patient communication. Medigear.uk can advise on WFC-01 configuration for community optometry applications.

Veterinary ophthalmology practices and mobile veterinary services benefit from the WFC-01's dual human and veterinary design specification, providing a single retinal imaging platform appropriate for both clinical contexts. The handheld, battery-powered, smartphone-paired format is particularly well suited to veterinary practice, where patient positioning and cooperation present distinct challenges compared with human ophthalmic examination, and portability is frequently a clinical priority. Medigear.uk can advise on the suitability of WFC-01 for veterinary ophthalmology applications.

Telemedicine and remote retinal screening programmes requiring a portable, smartphone-integrated fundus imaging solution will find the nun+ Fundus Camera WFC-01 available through Medigear.uk. The smartphone application's image capture, review, and management capabilities support remote consultation workflows where retinal images are reviewed by a specialist who is not physically present at the point of capture. Medigear.uk can discuss the WFC-01 configuration for telemedicine and remote screening applications.

Non-Mydriatic Operation Eliminates Pupil Dilation Requirement

The WFC-01's non-mydriatic design means patients can be imaged without pharmacologic pupil-dilation drops, removing the time delay for drops to take effect, the post-examination blurred vision and light sensitivity, and the driving restriction that traditionally accompanies a dilated fundus examination. This is a significant workflow and patient-experience advantage in high-volume screening contexts, including diabetic retinopathy screening and routine optometric examinations, where faster, more comfortable examinations support both clinical efficiency and patient acceptability.

Wide Field of View for Comprehensive Single-Capture Imaging

The greater-than-45° horizontal and approximately 40° vertical field of view provide wide-angle retinal coverage in a single image capture, reducing the need for multiple images to assess the full visible retinal area. This wide-field capability supports more efficient screening workflows and provides a more comprehensive single-image clinical record for documentation and remote review purposes.

Broad -20D to +20D Diopter Range for Diverse Patient Populations

The WFC-01's diopter range from -20D to +20D accommodates patients with significant myopia through significant hyperopia without requiring separate corrective lens attachments. This broad range supports efficient clinical workflow in screening and general practice settings, where patients present with a wide variety of refractive states, eliminating the need for lens swapping or patient-specific equipment configuration between examinations.

Android Smartphone Integration for Portable, Cost-Effective Imaging

The WFC-01 pairs with a standard Android smartphone via a dedicated application, eliminating the need for a dedicated fundus camera workstation, specialised computer, or fixed installation. This smartphone-integrated design significantly reduces the total system cost and footprint compared to traditional table-mounted fundus cameras, while providing live retinal viewing, image capture, and image management within a single portable device. This makes the WFC-01 particularly suited to mobile screening, community settings, and practices without space or budget for a dedicated fundus photography room.

High-Resolution 13M Pixel Image Capture

The WFC-01 captures retinal images at up to 13 megapixels, providing high-resolution image quality suitable for detailed clinical examination, identification of fine retinal pathology, and remote specialist review. This resolution supports clinical confidence in image-based diagnosis and documentation across conditions, including diabetic retinopathy, age-related macular degeneration, and other retinal disease presentations relevant to screening and diagnostic practice.

Dual Human and Veterinary Application

The WFC-01 is specifically designed for use in both human and veterinary retinal imaging, providing a single-device platform that serves human ophthalmology and optometry practices as well as veterinary ophthalmology services. This dual application is a distinctive specification feature among handheld fundus cameras and provides procurement flexibility for organisations or distributors serving both human and animal healthcare markets.

IR and White LED Dual Light Source System

The combination of an infrared LED for live observation and focusing and a white LED for image capture supports a comfortable, non-disruptive examination process for the patient during the viewing phase, with a brief flash only at the moment of image capture. The system's optimisation for both high and low retinal reflection conditions supports consistent image quality across diverse patient eye characteristics without requiring manual exposure adjustment for each patient.

Rechargeable Battery for Extended Clinical Sessions

The 3.6V, 3,500mAh rechargeable battery supports extended use throughout a clinical session without requiring mid-session recharging, supporting the practical demands of high-volume screening clinics and mobile screening programmes where consistent device availability throughout the working day is operationally important.

Non-Mydriatic Imaging

No pharmacologic pupil dilation is required before imaging. Supports faster, more comfortable patient examination and higher screening throughput.

Field of View: 45°+ Horizontal / ~40° Vertical

Wide-angle retinal coverage in a single image capture reduces the need for multiple captures per examination.

Diopter Range: -20D to +20D

Broad refractive accommodation covering significant myopia through significant hyperopia without lens attachment changes.

Dual Light Source: IR and White LED

Infrared LED for live observation and focusing. White LED flash for image capture. Optimised for high and low retinal reflection.

Camera Resolution: Up to 13M Pixels

High-resolution image capture supporting detailed clinical examination and remote specialist review.

Android Smartphone Compatibility

Pairs with Android smartphones via a dedicated application. Live retinal view, image capture, and management on a single connected device.

Rechargeable Battery: 3.6V / 3,500mAh

Extended battery life supporting full clinical sessions without mid-session recharging.

Handheld Portable Design

No fixed workstation or dedicated examination room required. Supports mobile screening, community settings, and space-limited practices.

Human and Veterinary Use

Designed for both human ophthalmology and optometry, and veterinary ophthalmology applications within a single device specification.

Manual Focusing Knob

Allows precise operator control of focus during live retinal observation before image capture.

Android Smartphone Application

Convenient capture, review, and management of retinal images and videos. Supports clinical documentation and telemedicine workflows.

CE Marked

Conforms to applicable European health, safety, and environmental protection standards. Medigear.uk can confirm full certification documentation.

The nun+ Fundus Camera WFC-01 is a handheld, non-mydriatic retinal imaging device suited to NHS ophthalmology departments, community optometry practices, diabetic retinopathy screening services, veterinary ophthalmology practices, and telemedicine retinal screening programmes that require portable, smartphone-integrated fundus imaging without pharmacologic pupil dilation for both human and veterinary clinical use. Its 13M pixel resolution, wide field of view exceeding 45° horizontally, -20D to +20D diopter range, infrared and white LED light sources, rechargeable battery, and Android smartphone application deliver a comprehensive and clinically versatile retinal imaging solution suited to fixed clinic, mobile, and remote screening environments. Contact Medigear.uk for specifications, pricing, or expert procurement assistance.
