GE HealthCare OEC 9800 Plus (2003)

Orthopaedic and trauma work is where the image processing earns its keep, because metal is in the field by definition. Implants, screws, plates and instruments all drive automatic brightness control to raise output, washing out the surrounding soft tissue, and Smart Metal is designed to hold resolution rather than let exposure chase the densest object present. Combined with a 15 kW rotating anode giving penetration for lateral spine and larger patients, that suits fixation, reduction and implant positioning through a procedure. All clinical decisions, including whether an exposure is justified, remain with the entitled practitioner under the operating organisation's own procedures.

Pain management services use the platform heavily for the same reason plus one more: needle placement requires repeated short screening runs, and AutoTrak holding exposure as anatomy shifts within the field reduces the images taken simply to correct brightness.

Vascular and neurovascular work depends on the roadmap and digital subtraction modes, which were separately specified rather than standard. A machine without them cannot do the work at all, so Medigear.uk confirms the fitted option list against the specific unit rather than the model name, since the two are indistinguishable from a listing and differ substantially in both capability and price.

Any organisation acquiring X-ray equipment takes on notification, radiation protection adviser appointment, local rules, employer procedures and a critical examination before clinical use. Medigear.uk raises these during enquiry so they are planned alongside the purchase rather than after delivery, since the lead time on appointing an adviser and drafting local rules can exceed the lead time on the machine itself.

Metal in the Field Does Not Wash Out the Image

When a dense object enters the field, brightness control normally drives output up and the surrounding tissue washes out. Smart Metal holds optimised resolution with metal present. In orthopaedic work there is metal in the field almost by definition, so this is a routine benefit rather than an occasional one.

Exposure Follows the Anatomy

The sampling window that sets exposure normally sits centrally, so anatomy drifting to the edge, or imperfect collimation, produces dark or burnt-out images. AutoTrak moves that window with the anatomy. Smart Window sizes it to the collimator position, so the two work together rather than in isolation.

Every Retake Avoided Is Dose Not Delivered

An image that comes out dark or washed out is taken again, and the repeat is dose to patient and staff. Image processing preventing retakes reduces dose through workflow rather than emission, which is why these features are better read as dose management than as convenience.

Fifteen Kilowatts Through a Rotating Anode

A 15 kW full-wave generator feeding a rotating anode tube gives penetration for large patients and lateral spine projections that lower-powered mobile systems struggle with. Dual 0.3 and 0.6 mm focal spots cover fine detail and higher output work respectively.

Heat Capacity for Sustained Screening

Anode heat capacity of 300,000 HU with 60,000 HU per minute cooling, inside a 1,600,000 HU housing, provides thermal headroom for extended screening rather than short bursts followed by a wait. On a long interventional case that determines whether the machine keeps up with the procedure.

Vascular Modes on a Mobile Platform

Roadmap and digital subtraction bring capability normally associated with fixed rooms onto a mobile system, alongside pulsed operation at 1, 2, 4 and 8 pulses per second. These were separately specified rather than standard, so their presence is confirmed against the specific machine.

Two Machines With the Same Name Can Differ

The 9800 Plus carried a long option list covering the 12 inch intensifier, digital subtraction, roadmap, DICOM interface, pulsed fluorography and thermal printing. A unit without the vascular modes is a different instrument at a different price. Medigear.uk establishes the fitted list in writing rather than relying on the model name.

Refurbishment Standard Established Before Order

This is among the most widely refurbished imaging platforms in existence, which helps parts supply and means refurbishment standards vary considerably. Medigear.uk obtains tube and intensifier condition in figures, exposure hours, service history and the scope of any refurbishment carried out, rather than accepting condition described in adjectives.

Smart Metal

Maintains optimised image resolution when metal objects are present in the imaging field, rather than allowing brightness control to chase the densest object.

AutoTrak

Moves the exposure sampling window with the anatomy, holding correct exposure even where the subject sits at the edge of the field or collimation is imperfect.

Smart Window

Senses collimator position and adjusts sampling window size accordingly, so exposure control matches the field actually being imaged.

15 kW High Frequency Generator

A 60 kHz full-wave generator delivers up to 120 kVp, with continuous fluoro boost to 20 mA and up to 75 mA for radiographic exposures.

Rotating Anode X-Ray Tube

A rotating anode tube handles far more heat than a stationary design, supporting sustained screening and higher output work.

Anode and Housing Heat Capacity

Anode heat capacity is 300,000 HU with 60,000 HU per minute cooling, within a housing rated at 1,600,000 HU.

Dual Focal Spots

Focal spots of 0.3 mm and 0.6 mm cover fine detail work and higher output requirements respectively.

Tri-Mode Image Intensifier

A 9 inch tri-mode intensifier provides 9, 6 and 4.5 inch fields, with a 12 inch tri-mode version offered as an option. Which is fitted is confirmed with the machine.

Image Resolution by Field

Minimum central resolution at the monitor is stated as 1.4 lp/mm at 9 inch, 2.0 lp/mm at 6 inch and 2.4 lp/mm at 4.5 inch, with typical DQE of 65 percent.

1K CCD Camera with 360 Degree Rotation

A high resolution CCD camera provides 1,004 by 1,004 pixels with full frame capture, 360 degree motorised rotation and an on-screen orientation indicator giving feedback without screening.

Dual 16 Inch Touch Screen Monitors

Dual 16 inch anti-glare, anti-static monitors with touch screen operation, ambient light sensing and remote window and level controls.

Imaging Modes Including Roadmap and DSA

Modes cover fluoro, high level fluoro, digital spot, roadmap and digital subtraction. Which are present on a given machine is confirmed at enquiry.

Pulsed Fluoroscopy Rates

Pulsed operation at 1, 2, 4 and 8 pulses per second reduces dose against continuous screening while retaining motion visibility.

Dual Leaf Tungsten Collimator

A dual leaf tungsten collimator allows the field to be restricted to the area of interest, which remains among the most effective dose reductions available.

Optional Configurations Fitted

DICOM interface, pulsed fluorography, thermal printing, cine disk and the 12 inch intensifier were all separately specified. The fitted list is established in writing.

Tube and Intensifier Condition

Exposure hours, tube counts and intensifier performance are obtained in figures, since these determine remaining service life and real value.

Refurbishment Standard and Records

Medigear.uk establishes service history, who maintained the unit and the scope of any refurbishment before quotation, alongside the manufacturer's current parts and support position.

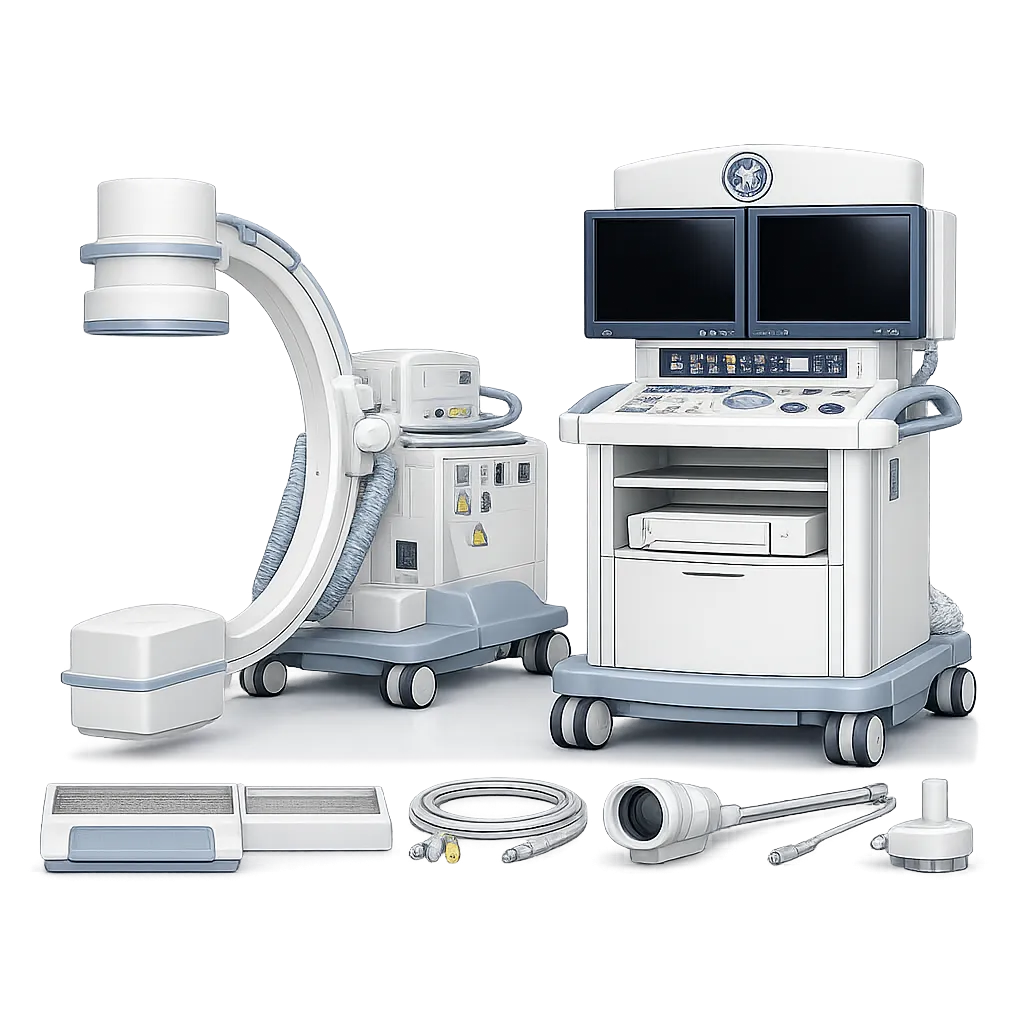

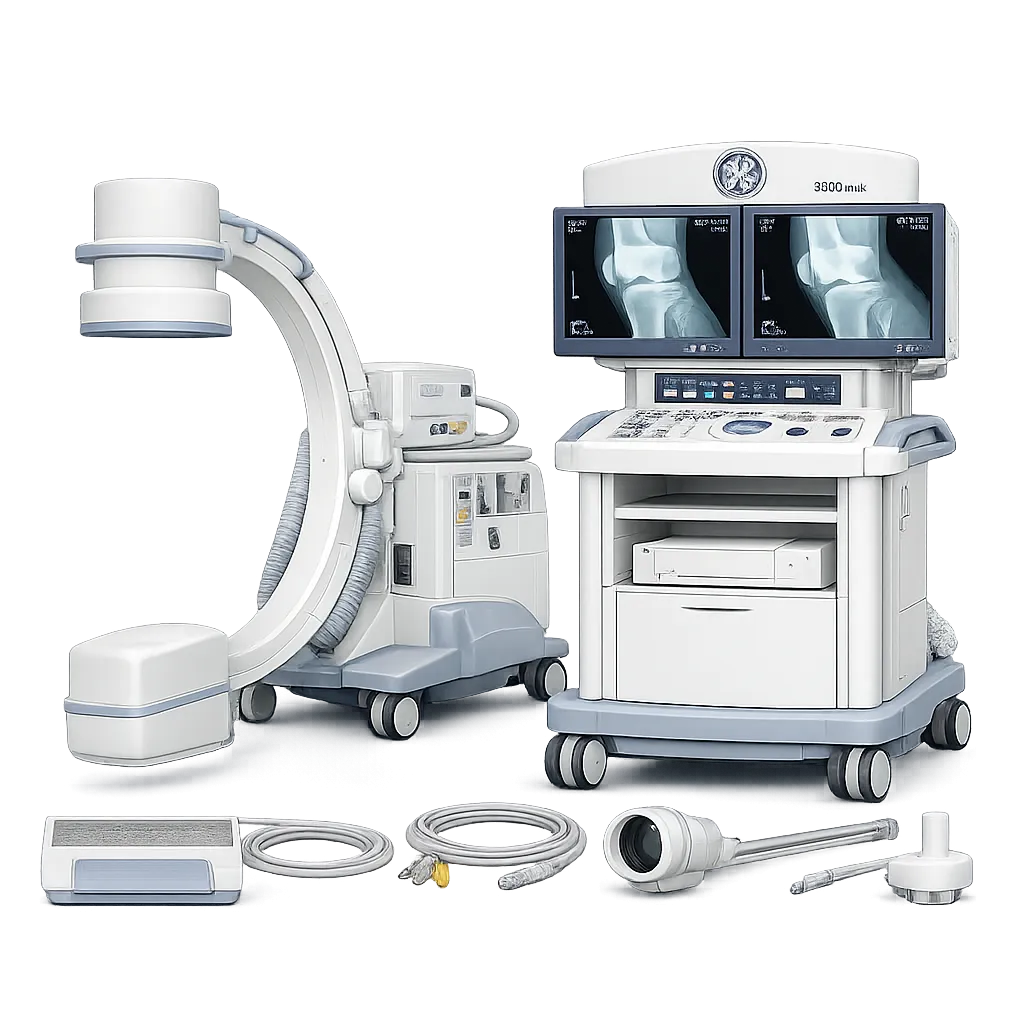

The GE HealthCare OEC 9800 Plus is a mobile digital fluoroscopy C-arm combining a 15 kW full-wave generator and rotating anode tube with image processing built around the two situations that force retakes in surgical fluoroscopy. Smart Metal holds resolution when implants and instruments enter the field, AutoTrak keeps exposure correct as anatomy moves within it, and Smart Window matches the sampling area to the collimator, so images that would otherwise come out dark or washed out are not taken twice. Since every retake avoided is dose not delivered, these read as dose management rather than convenience, and they suit orthopaedic and trauma theatres, pain management services and, where fitted, vascular work. Because the platform carried a long option list and is widely refurbished, Medigear.uk confirms the fitted configuration, tube and intensifier condition, service history and compliance requirements before supply. Contact Medigear.uk for specifications, procurement assistance, or expert consultation.
